5. INSTALLATION

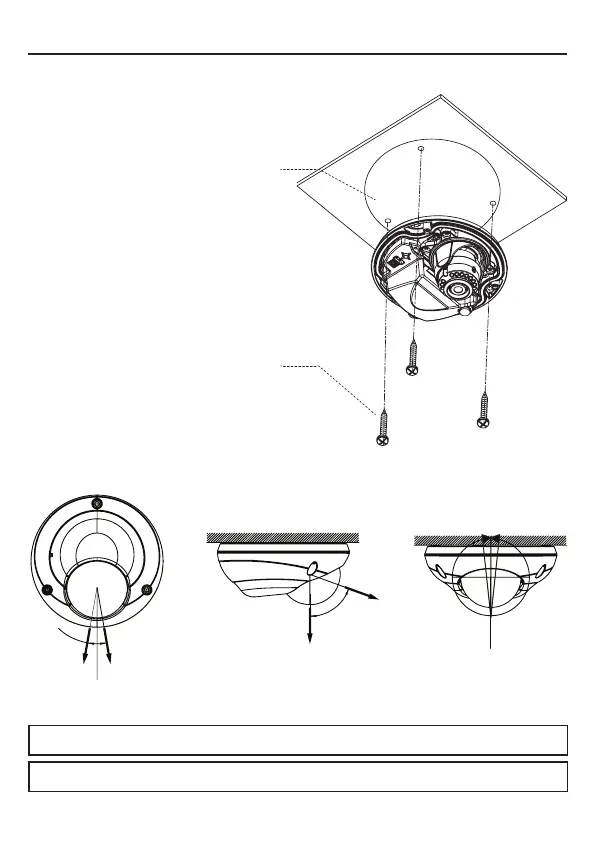

1. Attach the Camera to the ceiling with using the screws provided, taking into considering the camera
angle required for the surveillance function.
2. Adjust the LENS ANGLE to the desired location by hand.
8
M4 Tappint Screw - 3EA
Template
Pan: ±15°
Tilt:
LED Type: 0~75°
Standard Type: 0~90°
Rotate: ±180°
Pan Rotation Horizontal Rotation
CAUTION: With certain wide-angle lenses, the upper part of the image may be obscured when
the tilt angle exceeds 80°
CAUTION: panning(Pan + Horizontal) the bracket in excess of 1 rotations in one direction may
cause damage to the cable.
Tilt Rotation
