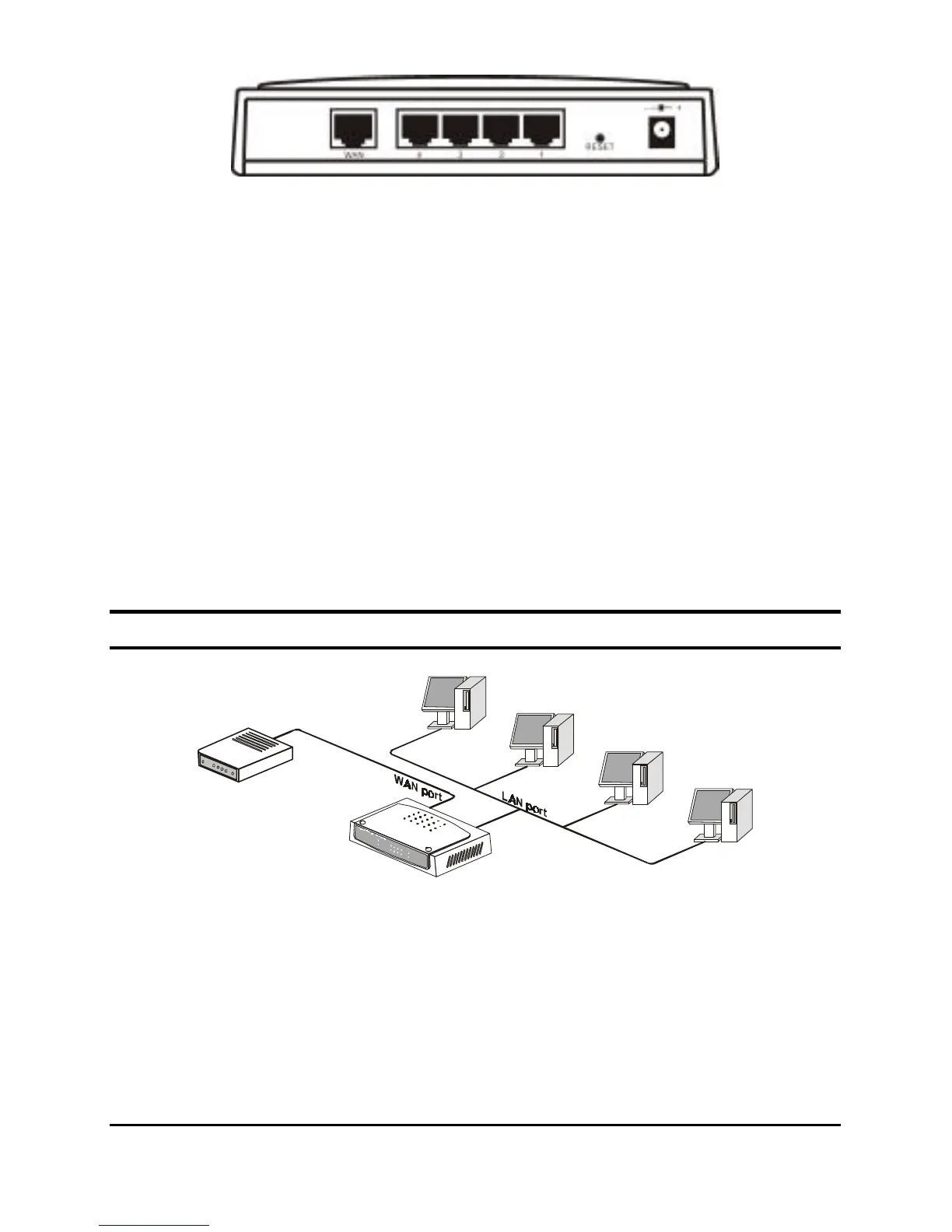

4 Port 10/100Mbps Ethernet Broadband Router Rear Panel
WAN
In the four port broadband router, there is an RJ-45 10/100Mbps Auto-
MDIX port for the WAN that will fit the xDSL/Cable modems
specification need.
LAN (1-4)
Four RJ-45 10/100Mbps Auto-MDIX ports for connecting to either
10Mbps or 100Mbps Ethernet connections.
RESET
Use a pin-shape item to push to reset this device to factory default settings.
It will be useful too when the manager forgot the password to login, but
the setting will be back to default setting.
Hardware connections
P
O
W
E
R
S
Y
S
T
E
M
L
A
N
1
2
3
4
L
in
k
/
A
C
T
1
0
0
M
Internet Broadband Router
PC
xDSL Modem
PC
PC
PC
Connect the Internet Broadband Router
1. Plug in one end of the network cable to the WAN port of the 4-port
Internet Broadband Router.
2. Plug in the other end of the network cable to the Ethernet port of the
xDSL or Cable modem.
