Skid Shoe Maintenance
WARNING
!
To avoid serious injury or death:
Excessive wear on skid shoes can damage side panels, cause
inadequate operation of cutter, and create a safety hazard.
Always replace skid shoes at the first sign of wearing thin.
Skid shoes should be inspected at the beginning of each
cutting season and replaced when material thickness is
less than 1/8" at any point or if other damage is evident.
Order only genuine Kubota parts from your local Kubota
dealer.
Refer to Figure 5-3:
Replace skid shoes as follows:
1. Raise the Skid Cutter 3" or more off the ground and
place solid (non-concrete) support blocks under the
cutter. Make sure the solid (non-concrete) support
blocks are positioned so they will not interfere with
skid shoe installation.
2. Lower cutter onto solid (non-concrete) support
blocks, place skid steer in park, set park brake, shut
the skid steer off and remove switch key.
3. Remove 3/8" hex nuts (#3), lock washers (#4), flat
washers (#5), 3/8" plow bolts (#2) and two skid shoes
(#1 & 6) from each side of the deck.
4. Plow bolts (#2) should be checked for wear and
replaced if necessary.
5. Install the new skid shoes (#1 & 6) to one side of the
deck as shown with 3/8"-16 GR5 plow bolts (#2), flat
washers (#5), lock washers (#4) and
3/8" hex nuts (#3). Tighten nuts to correct torque.
6. Repeat step 5 for other side of the deck.
7. Raise cutter up and remove from solid (non-
concrete) support blocks.
Skid Shoe Parts
# Part No. Part Description
1 326-909H SKID SHOE REAR LH
1 326-908H SKID SHOE REAR RH
2 802-466C PLOW 3/8"-16X1 1/4" GR5
3 803-014C NUT HEX 3/8"-16 PLT
4 804-013C WASHER LOCK SPRING 3/8 PLT
5 804-012C WASHER FLAT 3/8 SAE PLT
6 326-910H SKID SHOE FRT LH
6 326-907H SKID SHOE FRT RH
Skid Shoe Replacement

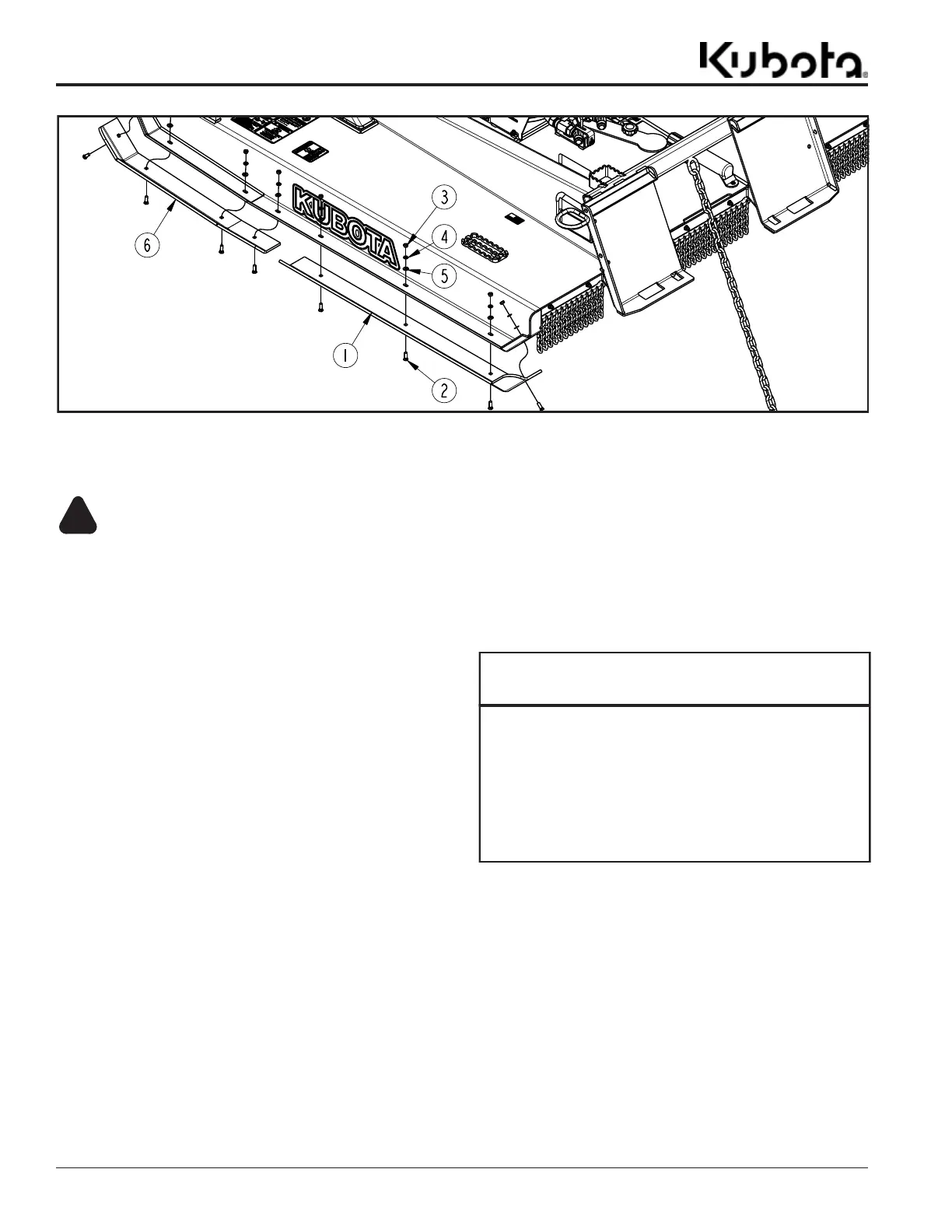

Figure 5-3
