81700·82100'82400 WSM,11770
3 TRANSMISSION

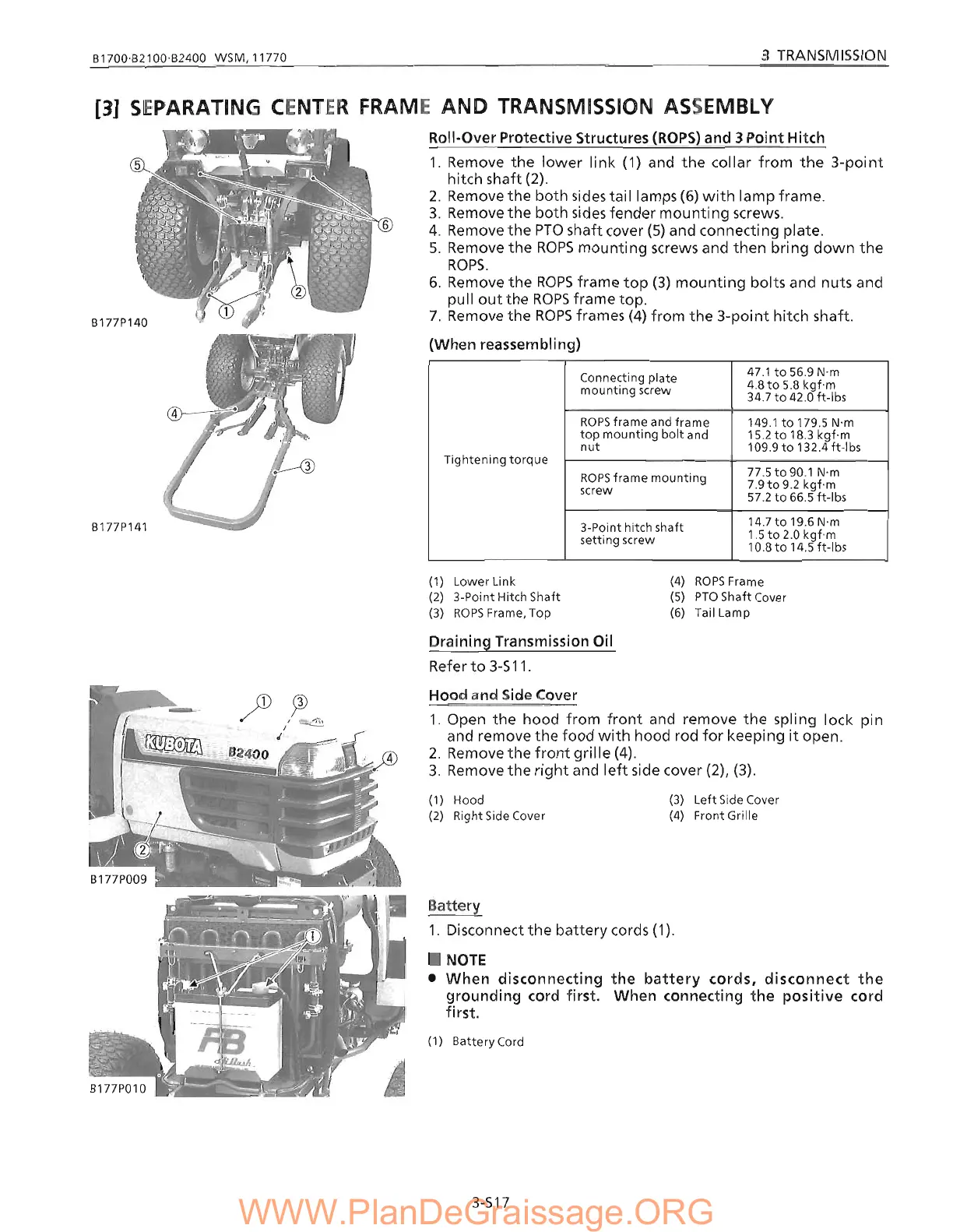

[3] SEPARATING CENTER FRAME AND TRANSMISSION ASSEMBLY
Roll-Over Protective Structures (ROPS) and 3 Point Hitch
1. Remove the lower link (1) and the collar from the 3-point
hitch shaft (2).
2. Remove the both sides tail lamps (6) with lamp frame.
3. Remove the both sides fender mounting screws.
4. Remove the PTO shaft cover (S) and connecting plate.
5. Remove the ROPS mounting screws and then bring down the
RaPS.
6. Remove the RaPS frame top (3) mounting bolts and nuts and
pu II out the ROPS frame top.
7. Remove the ROPS frames (4) from the 3-point hitch shaft.
(When reassembling)
Connecting plate
47.1 to 56.9 N'm
4.8
to 5.8 kgf'm
mounting screw
34.7
to 42.0 ft-Ibs
ROPS frame and frame
149.1 to 179.5 N'm
top mounting bolt and
15.2
to 18.3 kgf'm
nut
109.9to 132.4ft-lbs
Tightening torque
ROPS frame mounting
77.5to90.1 N'm
7.9to9.2 kgf'm
screw
57.2
to 66.5 ft-Ibs
3-Point hitch shaft
14.7to19.6N·m
setting screw
1.5 to 2.0 kgf'm
10.8to 14.5 ft-Ibs
(1) Lower Link
(2) 3-Point Hitch Shaft
(3)
ROPS Frame, Top
Draining Transmission Oil
Refer
to 3-S 11.
(4) ROPS Frame
(5) PTO Shaft Cover
(6) Tail Lamp
(1)
8attery Cord
Hood and Side Cover
1. Open the hood from front and remove the spling lock pin
and remove
the food with hood rod for keepi ng it open.
2. Remove the front grille (4).
3. Remove the right and left side cover (2), (3).
Battery
1. Disconnect the battery cords (1).
• NOTE
• When disconnecting the battery cords, disconnect the
grounding cord first. When connecting the positive cord
first.
(3) Left Side Cover
(4) Front Grille
(1) Hood
(2) Right
Side Cover
3-S17
WWW.PlanDeGraissage.ORG

Kubota B1700 Specifications

General

Engine Type	Diesel
Engine Power	17 hp
Cylinders	3
Transmission	Gear
Type	Compact Utility Tractor
Transmission Gears	6 forward and 2 reverse
PTO Speed	540 rpm
Hydraulic System Type	Open center
