PERIODIC SERVICE60

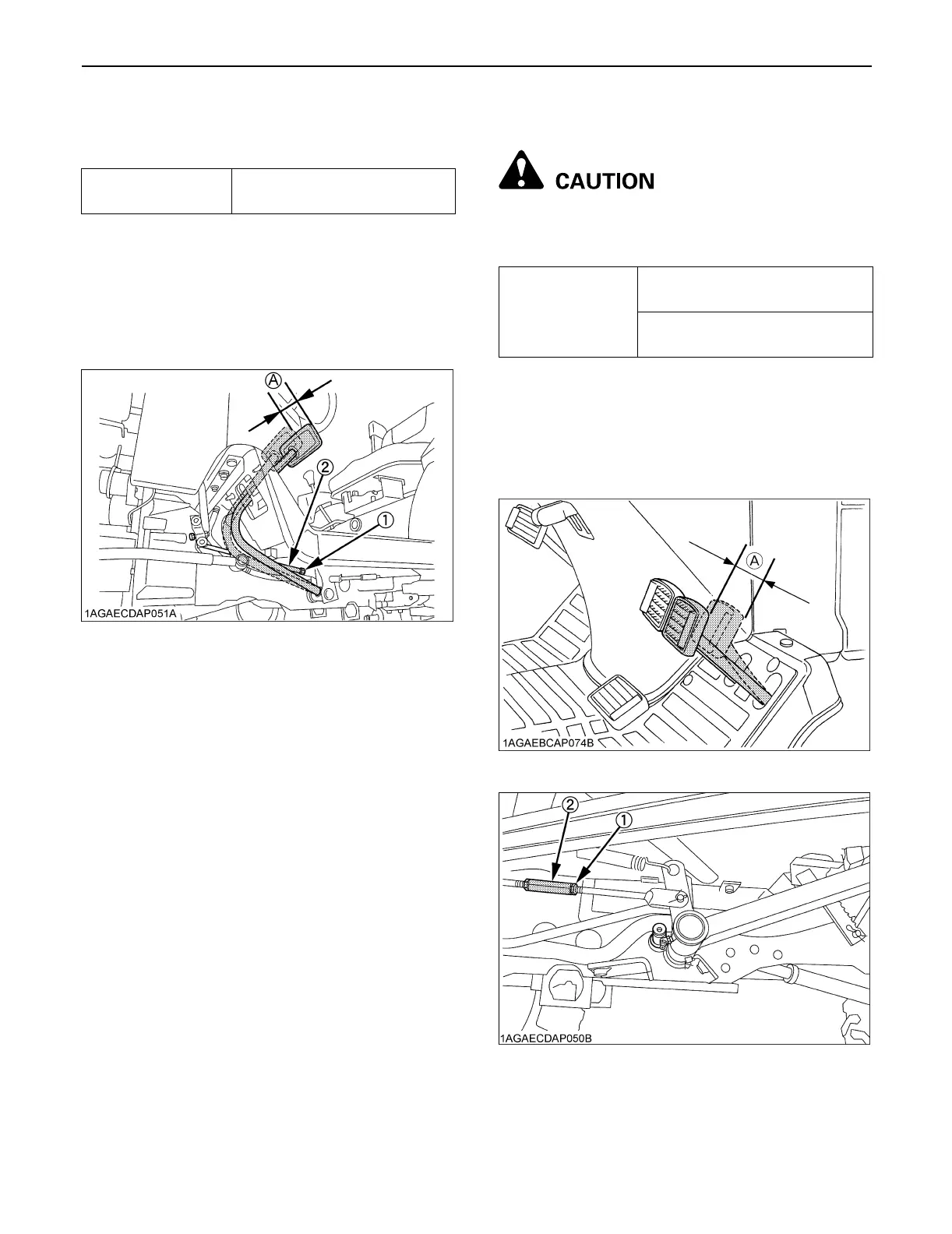

BAdjusting Clutch Pedal
1. Stop the engine and remove the key.
2. Slightly depress the clutch pedal and measure free
travel at top of pedal stroke.
3. If adjustment is needed, loosen the lock nut and turn
the turnbuckle to adjust the rod length within
acceptable limits.
4. Retighten the lock nut.
BAdjusting Brake Pedal
To avoid personal injury:
A Stop the engine and chock the wheels before
checking brake pedal.
1. Release the parking brake.
2. Slightly depress the brake pedals and measure free
travel at the top of pedal stroke.
3. If adjustment is needed, loosen the lock nut and turn
the turnbuckle to adjust the rod length within
acceptable limits.
4. Retighten the lock nut.
Proper clutch pedal
free travel
20 to 30 mm (0.8 to 1.2 in.)
on the pedal
(1) Lock nut
(2) Turnbuckle
(A) "FREE TRAVEL"
Proper brake pedal
free travel
30 to 40 mm (1-3/16 to 1-19/32 in.)
on the pedal
Keep the free travel in the right
and left brake pedals equal.
(A) "FREE TRAVEL"
(1) Lock nut
(2) Turnbuckle

Kubota B2320 Series Specifications

General

Engine Type	Diesel
Engine Power	23 hp
Type	Compact Utility Tractor
Fuel Type	Diesel
Engine Cylinders	3
Hydraulic System	Open Center
3-Point Hitch	Category I
Transmission Type	Hydrostatic (HST)
Weight	1, 433 lbs
Drive	4WD
Engine Displacement	68.5 cu in
