11INSTRUMENT PANEL AND CONTROLS
B Foot and Hand Controls
C ROPS Type

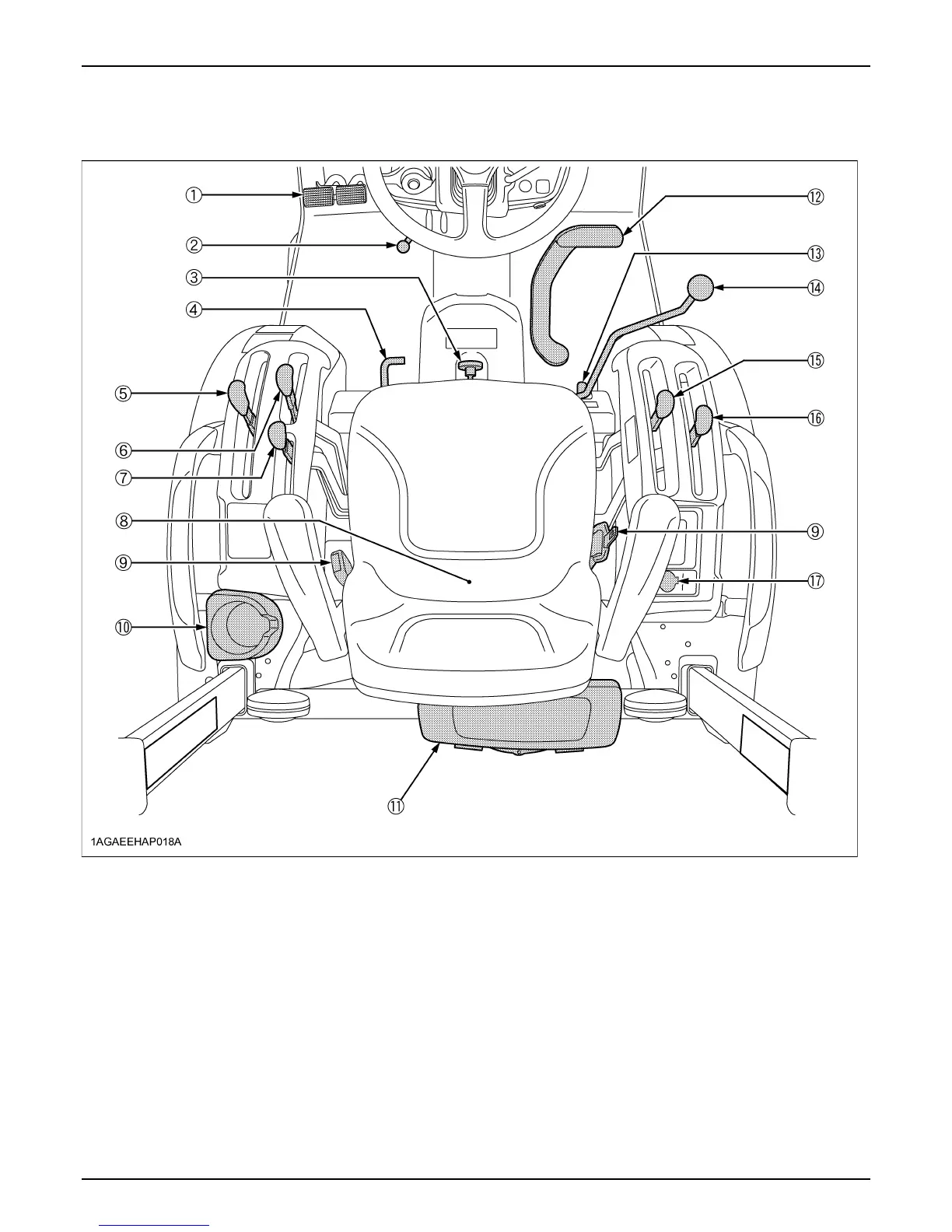

ILLUSTRATED CONTENTS ILLUSTRATED CONTENTS
(1) Brake pedal.................................................... 28 (10) Cup holder.................................................. ---
(2) Steering wheel tilt pedal .................................25 (11) Tool-box...................................................... ---
(3) 3-Point hitch lowering speed knob.................. 51 (12) Speed control pedal.................................... 32
(4) Differential lock pedal..................................... 37 (13) Loader lock lever......................................... 53
(5) Range gear shift lever (L-M-H)........................ 30 (14) Loader control lever.................................... 53
(6) PTO clutch lever............................................. 41 (15) Front wheel drive lever................................ 30
(7) PTO select lever [B3150 Only] ....................... 40 (16) Position control lever [B3150 Only] ............. 50
(8) Operator's seat............................................... 23 (16) Hydraulic control lever [B3150SU Only] ...... 50
(9) Seat belt......................................................... 25 (17) Electrical outlet............................................ 39
