S-39
SM-E2B SERIES, WSM
DIESEL ENGINE

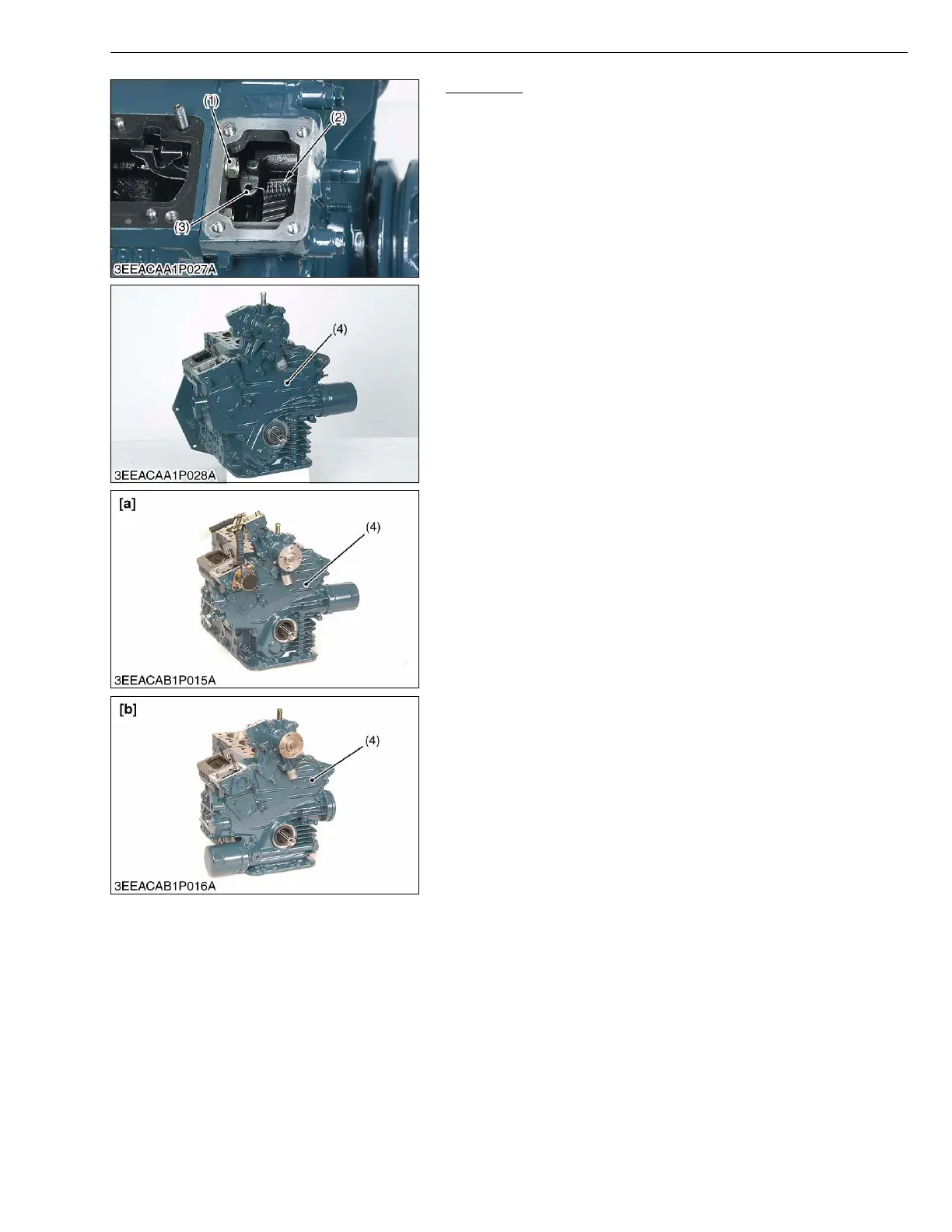

Gear Case
1. Disconnect the start spring (2) from the fork lever 1 (3).
2. Remove the screw (1) of inside the gear case and outside
screws.
3. Remove the gear case (4).
(When reassembling)
• Apply a liquid gasket (Three Bond 1215 or equivalent) to both
sides of the gear case gasket.
• Be sure to set three O-rings inside the gear case.
• The gear case for energize to run type stop solenoid and the
gear case for one-side maintenance are available to meet
customer’s requirements. (Option)
W1029858
(1) Screw (Inside)
(2) Start Spring
(3) Fork Lever 1
(4) Gear Case
[a] Gear Case for Energize to Run
Type Stop Solenoid (Option)
[b] Gear Case for One-side
Maintenance (Option)
To Next Page
