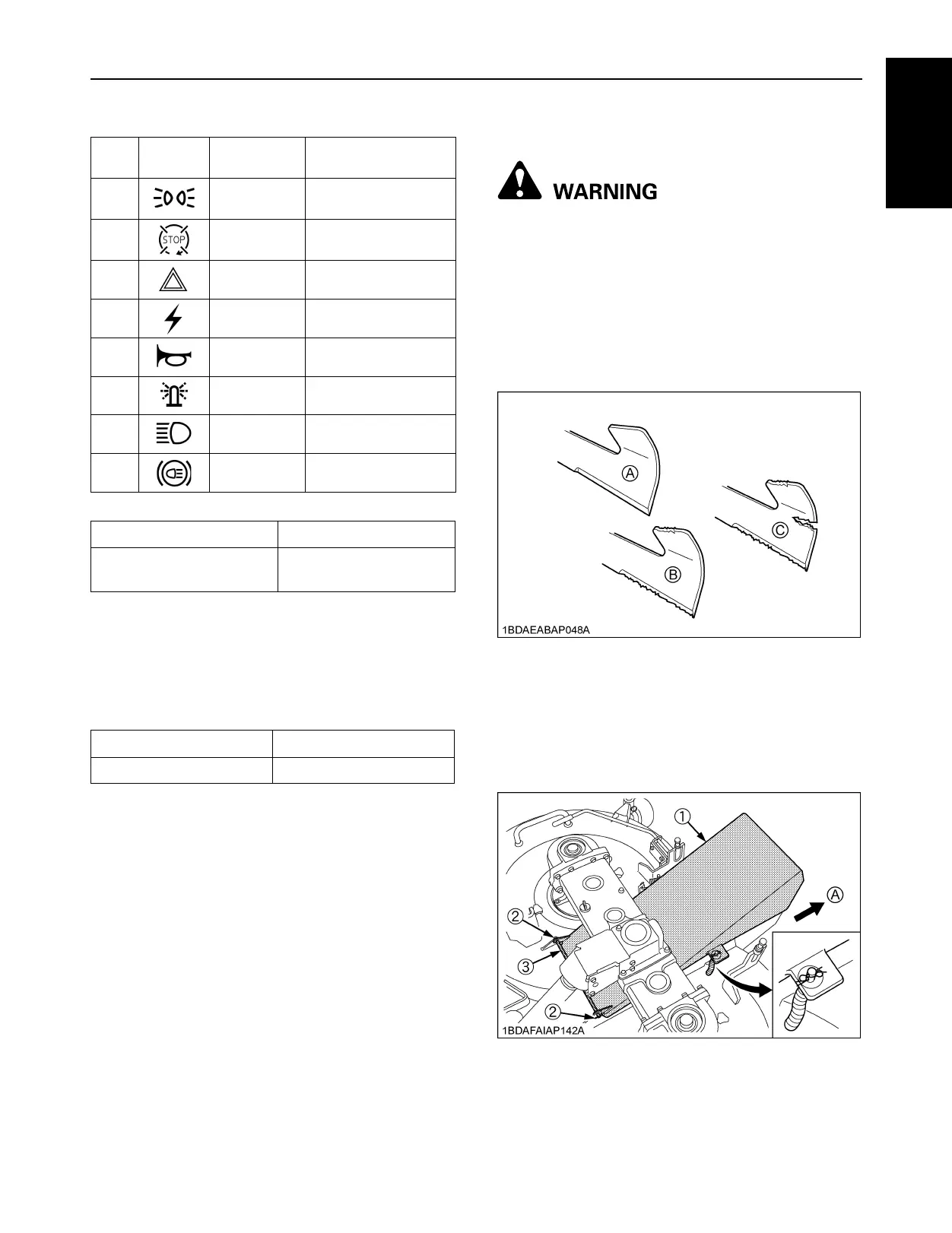

77PERIODIC SERVICE
ENGLISH
C Protected circuit
BReplacing bulbs
Head lights:
Take the bulb out of the light body and replace with a new
one.
BChecking and Replacing Blade
To avoid serious injury:
A Be sure to stop the engine and remove the key.
A Blades may be sharp. When you handle blades,
wear heavy gloves or wrap end of blade with a
rag.
C Checking
The blade cutting edges should be kept sharp at all times.
Sharpen the cutting edges, if they resemble blade (B).
Replace the blades if they appear similar to blade (C).
C Replacing
1. Remove the mower deck from the machine.
2. Remove the two snap pins and the shaft, and then
remove the mower duct with sliding it.
FUSE
NO.
SYMBOL CAPACITY(A) Protected circuit
(1) 10
POSITION LIGHT
(PARKING)
(2)
15
SOLENOID
(ENGINE STOP)
(3) 15 HAZARD LIGHT
(4) 10 ACC
(5) 15 HORN
(6) 15 BEACON
(7) 15 HEAD LIGHT
(8) 10 BRAKE LIGHT
CAPACITY (A) Protected circuit
Slow blow Fuse (50A)
Check circuit against
wrong battery connection
Light Capacity
Headlights 40W / 50W
(A) New blade
(B) Worn blade
(C) Cracked blade
(1) Mower duct
(2) Snap pin
(3) Shaft
(A) "SLIDE"
