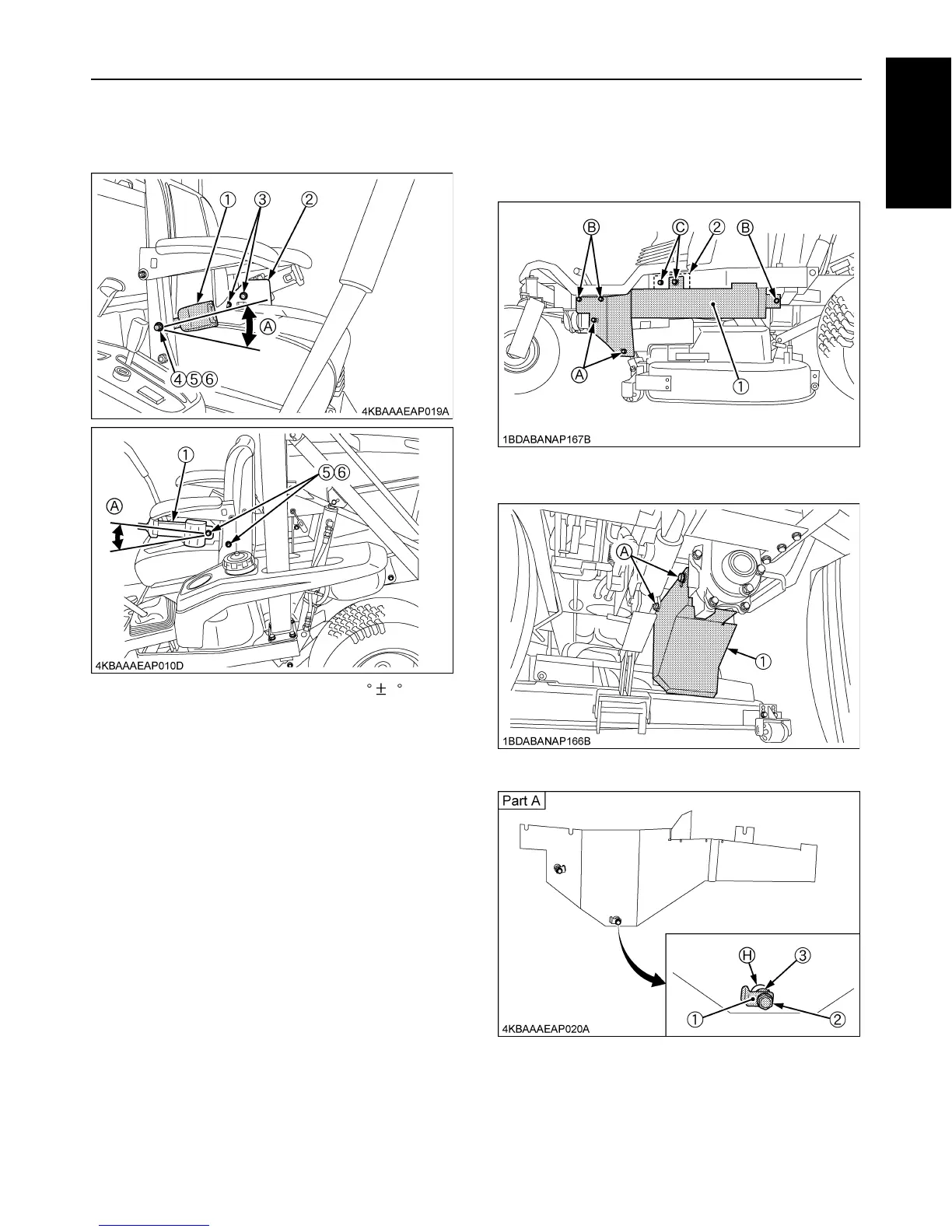

BInstalling the Seat Belt Assy
As shown in the figures below, install BELT, SEAT, ASSY
(1) to the seat.
BPreparations For Attaching the Mower
Before attaching the mower, set hardware for installation
to frame and covers beforehand.
(1) BELT, SEAT, ASSY
(2) SUPPORT (SEAT BELT)
(3) SQUARE NECK BOLT (M10 x 25)
(4) BOLT (M10 x 20)
(5) Nut (M10)
(6) Washer
(A) 35 5 from
the level
(1) COVER (LH)
(2) COVER (LH 2)
(1) COVER (U/J)
(1) PLATE (BOLT HOLDER 16)
(2) Flange bolt (M8 x 16)
(3) Washer
(H) Hole

Kubota GZD21-2 HD Specifications

General

Engine Type	Diesel
Engine Power	21 HP
Transmission	Hydrostatic
Drive Type	2WD
Number of Blades	3
Deck Type	Fabricated
Engine Cylinders	3
Cutting Width	48 inches
PTO Power	17 HP
Type	Zero-Turn Mower
