Kubota GZD21 - Hose Clamping and Tire Installation; Hose Clamp Positions

8
ENGLISH

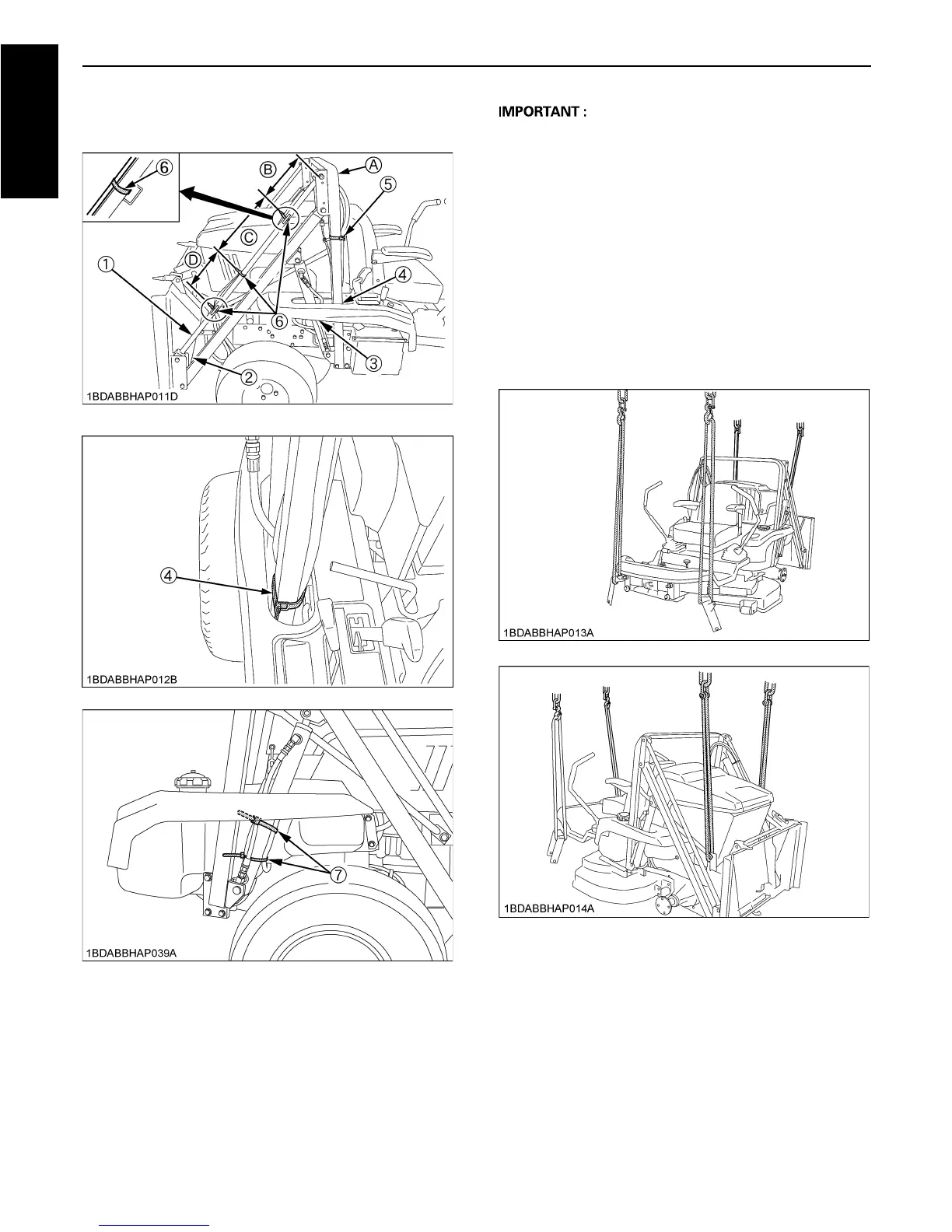

BGZD15HD & GZD21 Hose Clamp Positions
A Lift the back base to its top limit and clamp it tightly.
A Make sure the hoses are parallel, not crossing each
other.
A Make sure that the hoses are clamped on the upper lift
arm.
A Move up and down the back base to make sure that
the hoses do not stretch tight, nor come into contact
with the lift base and rear tires.
BPutting the Tires
1. Lifting the machine
For the front, apply nylon slings around the front axle.
For the rear, apply nylon slings around the right and
left frames.
(1) Upper lift arm
(2) Clamp on the bag base
(3) Clamp on the lift cylinder
(4) Clamp below the fender's
top level
(5) Clamp above the check wire
stay level
(6) Clamp on the upper lift arm
(7) Clamp on the lift cylinder
(A) Pass close to the headed
pin
(B) 200 mm (reference)
(C) 300 mm (reference)
(D) 200 mm (reference)
