7
ENGLISH

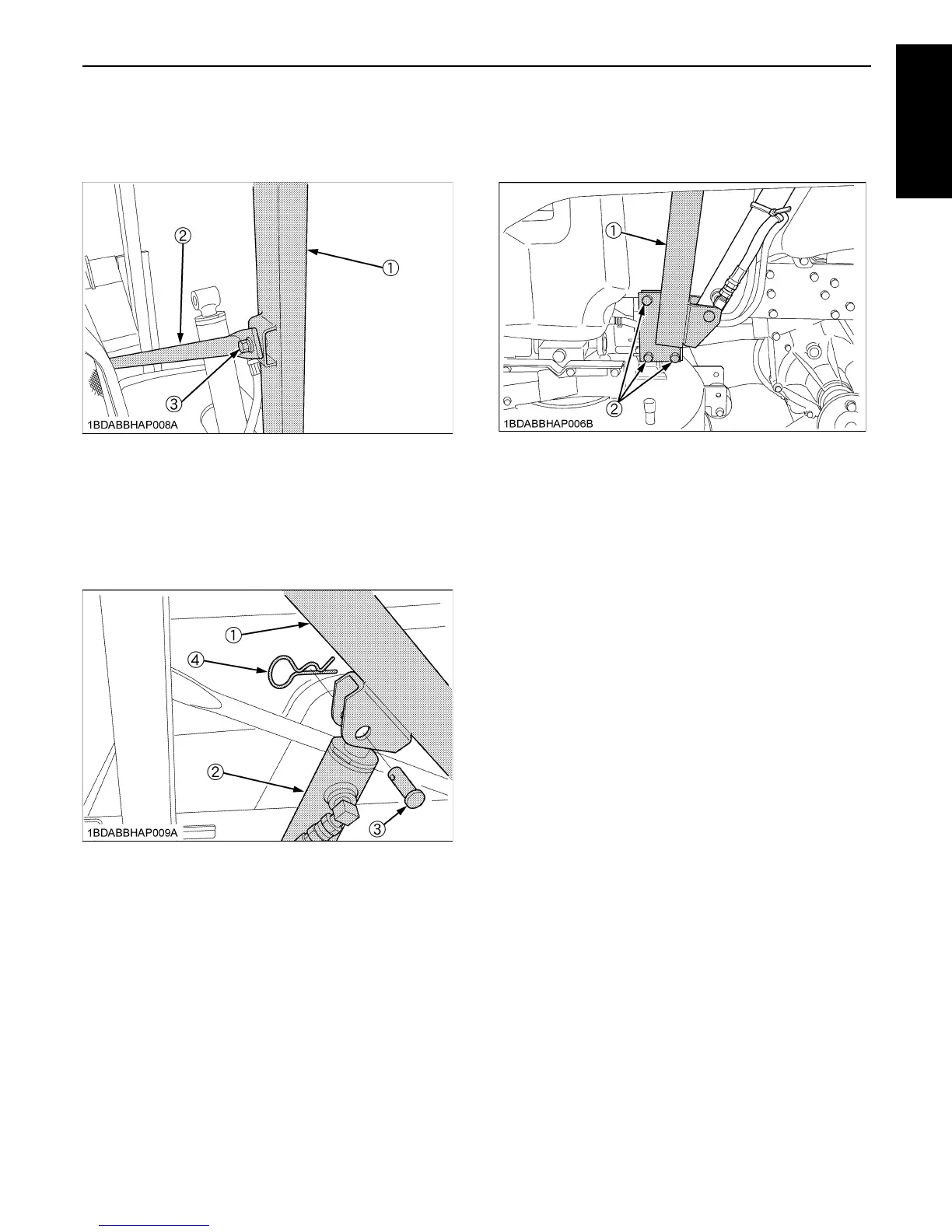

BInstalling the Lift Rod
Temporarily fix the lift rod (2) to the lift base (1) with the
M10 x 16 bolts (3) on both sides. Tighten up the bolts.
Tightening torque: 48.1-55.9 N-m (4.9-5.7 kgf-m)
BInstalling the Cylinder
Using the headed pin (3) and snap pin (4), connect the
cylinder (2) to the lower lift arm (1).
BTightening the Bolts
Tighten up the M10x25 bolts (2) (3 pcs. for each side) to
the lift base (1).
Tightening torque: 48.1 to 55.9 N-m (4.9 to 5.7 kgf-m)
(1) Lift base
(2) Lift rod
(3) M10 x 16 bolt
(1) Lower lift arm
(2) Cylinder
(3) Headed pin
(4) Snap pin
(1) Lift base
(2) M10 x 25 bolt
