3
ENGLISH

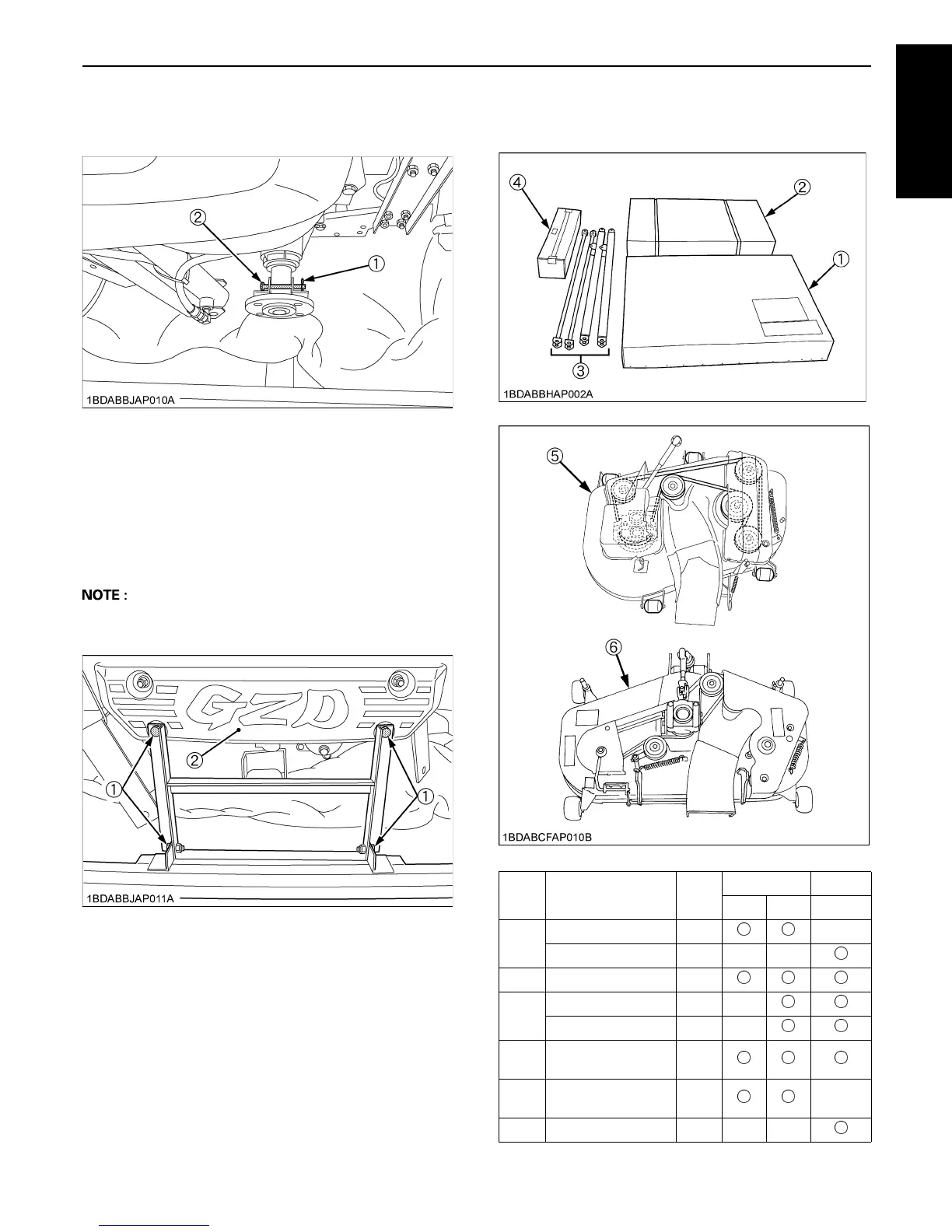

4. Unlocking both ends of the rear axle
Remove the snap pins off both ends of the rear axle,
and draw out the headed pins.
5. Removing the fixtures from the machine front
(1) Remove the bolts that join the fixture to the iron
crate bottom.
(2) Hoist the machine.
(3) Remove the bolts that connect the fixture to the
weight. Then detach the fixture.
A Screw the removed bolts and plain washers into the
open holes of the weight, and secure the weight in
position.
BTHE ACCESSORIES PACKAGED
TOGETHER WITH GZD15
(1) Snap pin
(2) Headed pin
(1) 4-Bolt
(2) Weight
REF.
No.
PART NAME Q'TY
GZD15-II GZD21
LD HD HD
(1)
400BAG, ASSY 1 ---
500BAG, ASSY 1 --- ---
(2) 400COVER, ASSY 1
(3)
ARM (LIFT, UPPER) 2 ---
ARM (LIFT, LOWER) 2 ---
(4)
ACCESSORIES,
ASSY
1
(5)
RC42GZD-II(E),
MOWER
1---
(6) RCK48GZD, MOWER 1 --- --
To Next Page
