4
ENGLISH

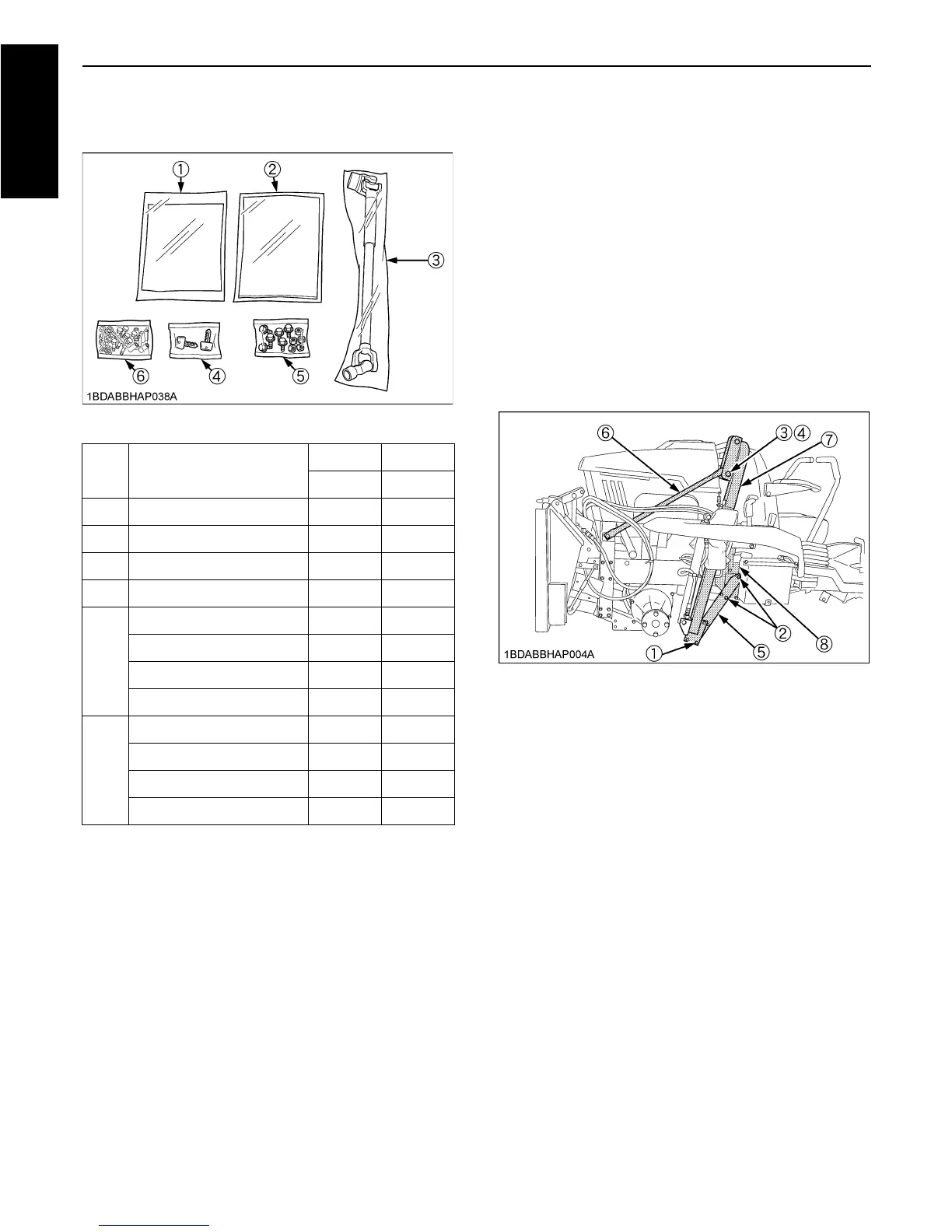

BACCESSORIES ASSY
*1 : This part comes with the RCK48GZD mower.
*2 : This part comes with HD.
ASSEMBLY
BPreparations for Assembling the Lift Base
1. Make a team of two to do this job.
2. Remove the bolt (3) and nut (4) from the lift rod (for
both sides).
The bolt (3) will be used again to reassemble this
component. Be careful not to lose them. (The nut (4)
will not be reused.)
3. Remove the bolt (1) that secures the bottom of the lift
base to the crate member (5) (for both sides). (The
bolt, nut and washer will not be reused.)
4. Remove the three bolts (2) that secure the frame to the
crate member (5) (for both sides).
The bolts (2) will be used again to reassemble this
component. Be careful not to lose them. (The crate
member (5) will not be reused.)
REF.
No.
PART NAME
GZD15-II GZD21
Q'TY Q'TY
(1) OPERATOR'S MANUAL 1 1
(2) LABEL 1 1
(3) UNIVERSAL JOINT 1 -*1
(4) KEY (STARTER) 2 2
(5)
BOLT (for Rear Wheel) 8 8
NUT (for Front Wheel) 2 2
BOLT (for Front Wheel) 2 2
BOLT 1 -*1
(6)
BOLT (for Lift Arm) 7 *2 7
LOCK NUT (for Lift Arm) 7 *2 7
WASHER (for Lift Arm) 11 *2 11
COLLAR (for Lift Arm) 8 *2 8
(1) Bolt
(2) Bolt
(3) Bolt
(4) Nut
(5) Crate member
(6) Lift rod
(7) Lift base
(8) Frame
