Kubota WSM L3540-II User Manual

BRAKES
L3540-II, L4240-II, L5040-II, L5240-II, L5740-II , WSM
5-S8

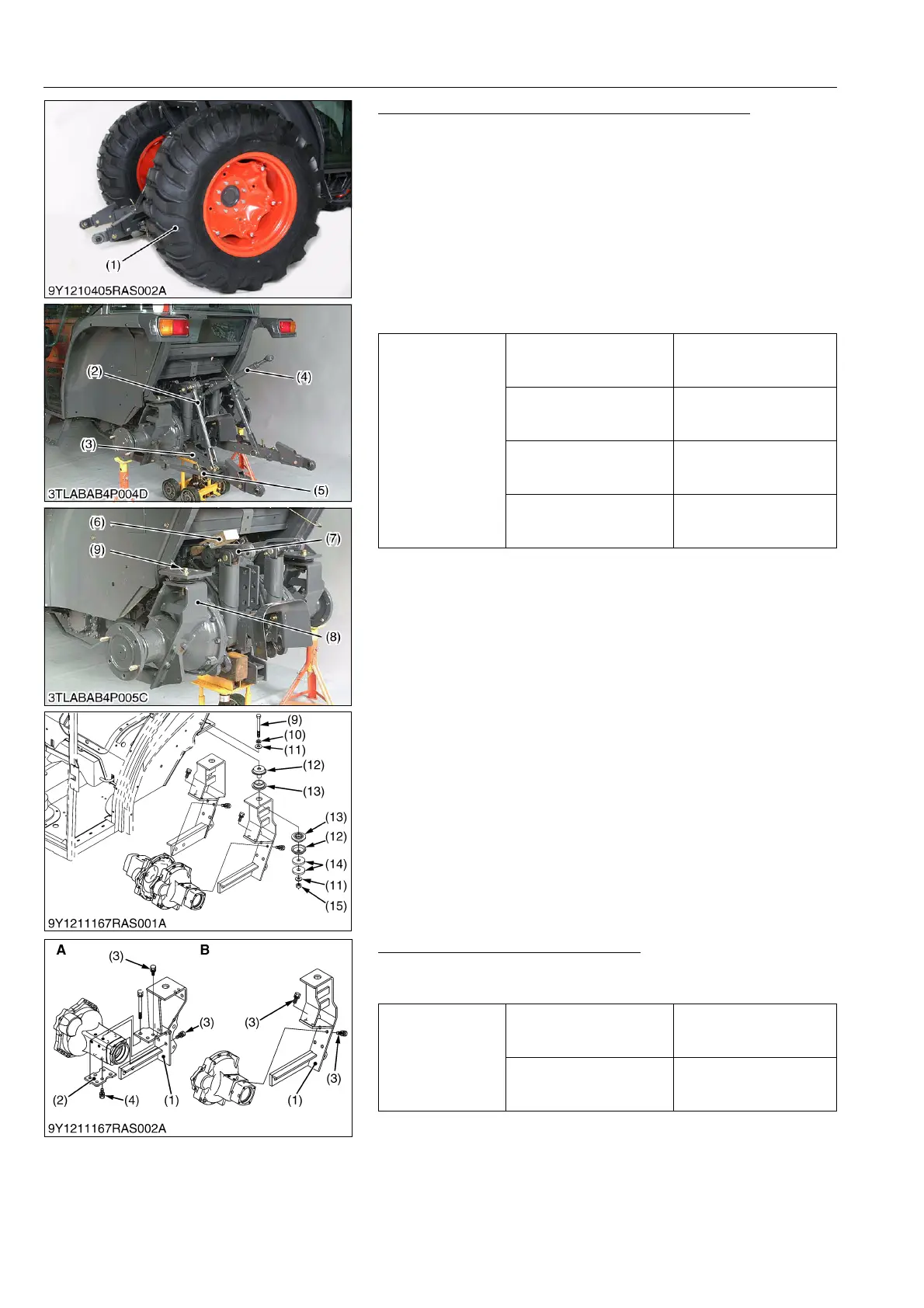

Rear Wheel and Cabin Mount Screw (Cabin Model)
1. Place the disassembling stand under the transmission case.
2. Remove the rear wheel mounting screws and nuts.
3. Remove the rear wheels (1).
4. Remove the top link (4) and lift rod (2).
5. Disconnect the stabilizer (5) and remove the lower link (3).
6. Place a block of wood (6) between cabin and lift arm (7) to
support the cabin.
7. Remove the cabin mount bracket mounting bolt (9) and nut.
(When reassembling)
• Be sure to install the washers, plate and mount rubbers, etc. in
their original positions.
9Y1211167RAS0003US0
Cabin Mount Bracket (Cabin Model)
1. Remove the cabin mount bracket (2), (3) or (6).
(When reassembling)
9Y1211167RAS0004US0
Tightening torque
Rear wheel mounting
screw and nut
197 to 225 N·m
20.0 to 23.0 kgf·m
145 to 166 lbf·ft
Lift arm mounting pin nut
78 to 90 N·m
7.9 to 9.2 kgf·m
58 to 66 lbf·ft
Lift arm mounting pin lock
nut
63 to 72 N·m
6.4 to 7.4 kgf·m
47 to 53 lbf·ft
Cabin mounting bolt and
nut
128 to 147 N·m
13.0 to 15.0 kgf·m
94.1 to 108 lbf·ft
(1) Rear Wheel
(2) Lift Rod
(3) Lower Link
(4) Top Link
(5) Stabilizer
(6) Block of Wood
(7) Lift Arm
(8) Cabin Mount Bracket
(9) Bolt
(10) Spring Washer
(11) Plain Washer
(12) Plate
(13) Mount Rubber
(14) Washer
(15) Nut
Tightening torque
Cabin mount bracket
mounting bolt (7T)
124 to 147 N·m
12.6 to 15.0 kgf·m
91.2 to 108 lbf·ft
Cabin mount bracket
mounting bolt (9T)
167 to 196 N·m
17.0 to 20.0 kgf·m
123 to 144 lbf·ft
(1) Cabin Mount Upper Bracket
(2) Cabin Mount Lower Bracket
(3) Bolt (7T)
(4) Bolt (9T)
A: L3540-II
B: L4240-II, L5040-II, L5240-II,
L5740-II
KiSC issued 02, 2015 A
