GENERAL
L3560, L4060, L4760, L5060, L5460, L6060, WSM
G-5

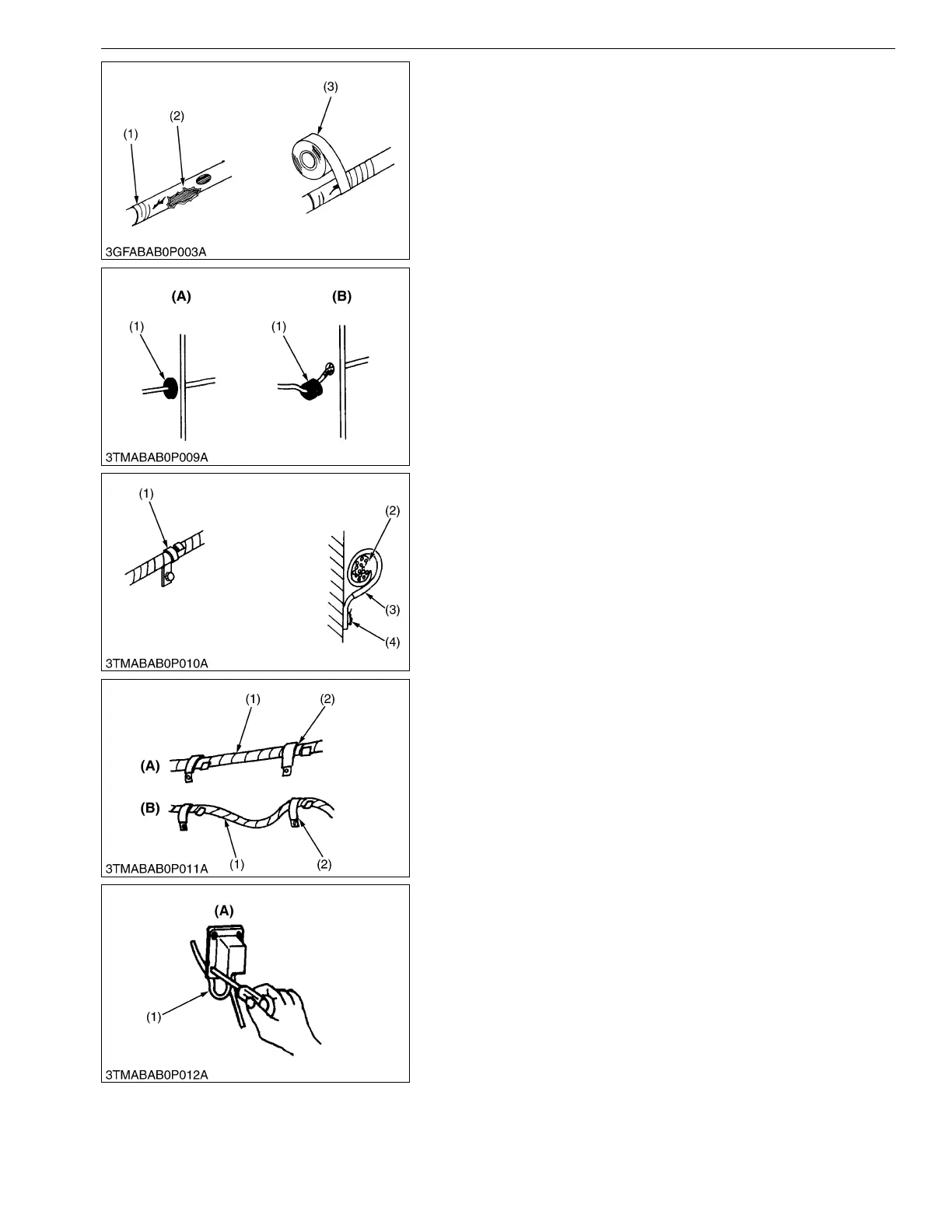

• Repair or change torn or aged wiring immediately.
WSM000001GEG0065US0
• Securely insert grommet.
WSM000001GEG0066US0
• Securely clamp, being careful not to damage wiring.
WSM000001GEG0067US0
• Clamp wiring so that there is no twist, unnecessary sag, or
excessive tension, except for movable part, where sag be
required.
WSM000001GEG0068US0
• In installing a part, be careful not to get wiring caught by it.
WSM000001GEG0069US0
(1) Aged
(2) Torn
(3) Insulating Vinyl Tape
(1) Grommet (A) Correct
(B) Incorrect
(1) Clamp
(Wind Clamp Spirally)
(2) Wire Harness
(3) Clamp
(4) Welding Dent
(1) Wiring
(2) Clamp
(A) Correct
(B) Incorrect
(1) Wiring (A) Incorrect
KiSC issued 03, 2016 A

Kubota WSM L3560 Specifications

General

Type	Compact Utility Tractor
Engine Model	Kubota V1505-T
Horsepower	37 hp (27.6 kW)
Fuel Type	Diesel
Drive	4WD
Hydraulic System	Open center
3-Point Hitch	Category I
PTO Horsepower	30.5 hp (22.7 kW)
Transmission	Hydrostatic
Number of Gears	3-range
Height	91.3 in (232 cm)
Tire Size (Front)	7-16
Tire Size (Rear)	15-19.5
Displacement	91.4 cu. in. (1, 499 cc)
