ELECTRICAL SYSTEM

L3560, L4060, L4760, L5060, L5460, L6060, WSM

9-S15

(3) Electronic Instrument Panel

Disconnecting Electronic Instrument Panel Connector

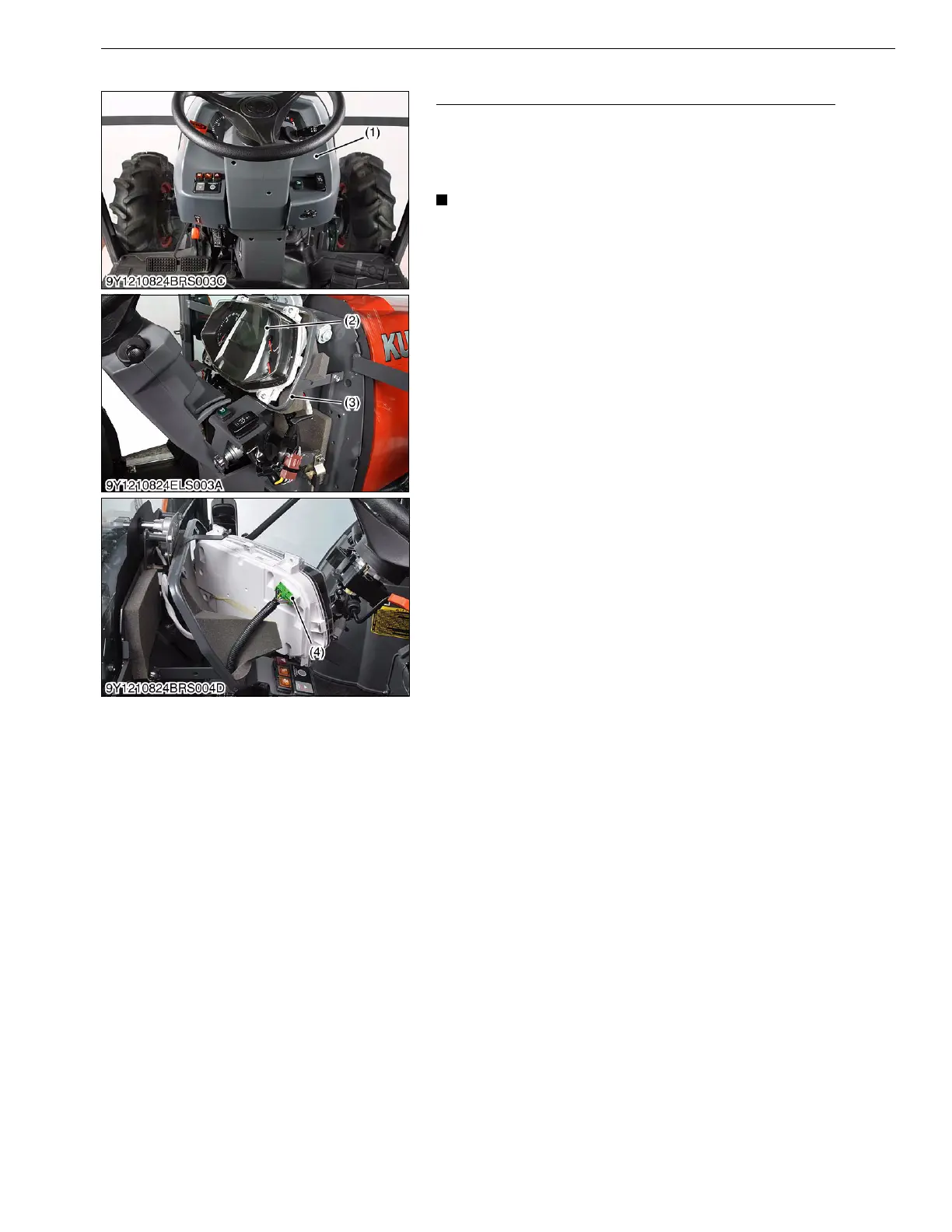

1. Remove the panel cover (1).

2. Remove the electronic instrument panel (2) from panel frame

(3).

3. Disconnect the panel connector (4).

NOTE

• When replacing the electronic instrument panel, adjust to

mode "B", "C" and mode "J"

9Y1210824ELS0009US0

[3] TESTING, SETTING AND ADJUSTING BY ELECTRONIC

INSTRUMENT PANEL (INTELLIPANEL)

The following setting, adjustments and testing can be done by using the electronic instrument panel.

• Testing: Check a voltage of various sensor or rotation of engine.

• Setting or Adjustment: Input the various data to electronic instrument panel or main ECU.

• Error information: Check or clear the error information.

9Y1210824ELS0010US0

(1) Panel Cover

(2) Electronic Instrument Panel

(Intellipanel)

(3) Panel Frame

(4) Connector

KiSC issued 03, 2016 A
