TRANSMISSION
L3540-II, L4240-II, L5040-II, L5240-II, L5740-II , WSM
3-M23
9Y1211167TRM0035US0

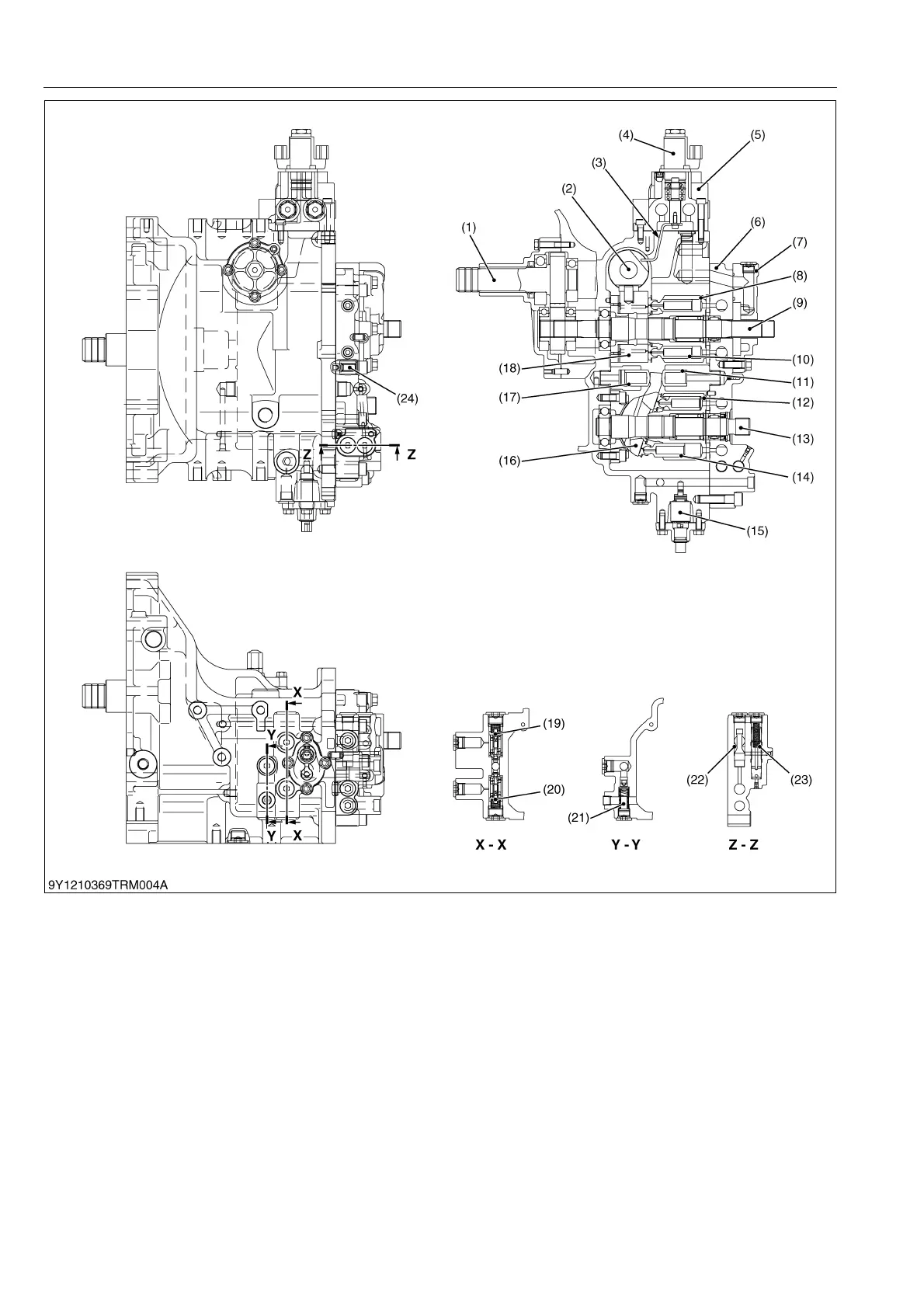

(1) Input Shaft
(2) Servo Piston
(3) Feedback Rod
(4) Proportional Valve
(5) Regulator Assembly
(6) Port Block Cover
(7) Charge Pump
(8) Cylinder Block
(9) Pump Shaft
(10) Piston (Pump)
(11) Piston (Hi)
(12) Cylinder Block (Motor)
(13) Output Shaft (Motor Shaft)
(14) Piston (Motor)
(15) Hi-Lo Solenoid Valve
(16) Variable Swashplate (Motor)
(17) Piston (Lo)
(18) Variable Swashplate (Pump)
(19) Check and High Pressure
Relief Valve (Foward)
(20) Check and High Pressure
Relief Valve (Reverse)
(21) Charge Relief Valve
(22) Spool (Pressure Selector)
(23) Spool (Hi-Lo)
(24) Case Relief Valve
X: Sectional View X-X
Y: Sectional View Y-Y
Z: Sectional View Z-Z
To Next Page
