ELECTRICAL SYSTEM
L3540-II, L4240-II, L5040-II, L5240-II, L5740-II , WSM
9-S31
(Continued)
6. "STEP-01" is displayed (d): Follow the procedures as follows.
• Cruise control lever: Set the "Maximum forward position".
• HST response dial: Set the "Maximum fast position".
• HST pedal: Keep the "Maximum forward position".
7. "STEP-02" is displayed (e): After completing the above 6,
"STEP-02" is displayed. Then proceed to the next step.
NOTE
• When "ERROR-xx" is displayed (l) refer to the below chart.
8. "PUSH-SW" is displayed (f): Hold down the displayed mode
switch for more than 2 seconds.
9. "STEP-03" is displayed (g): Follow the procedures as follows.
• Cruise control lever: Set the "Neutral position".
• HST response dial: Set the "Maximum slow position".
• HST pedal: Keep the "Maximum reverse position".
10. "STEP-04" is displayed (h): After completing the above 9,
"STEP-04" is displayed. Then proceed to the next step.
NOTE
• When "ERROR-xx" (m) refers to the below chart.
11. "PUSH-SW" is displayed (i): Hold down the displayed mode
switch for more than 2 seconds.
12. "OK" is displayed (j): The setting has been preserved correctly
to the ECU.
13. Turn off the key.
(Reference)
9Y1211167ELS0027US0
Error Display Fine-adjustment
ERROR-71 Range Gear Shift Sensor
ERROR-72 HST Pedal Sensor
ERROR-73 Swashplate Position Sensor
ERROR-74 Cruise Control Lever Position Sensor
ERROR-75 Throttle Lever Sensor
ERROR-76 HST Response Dial

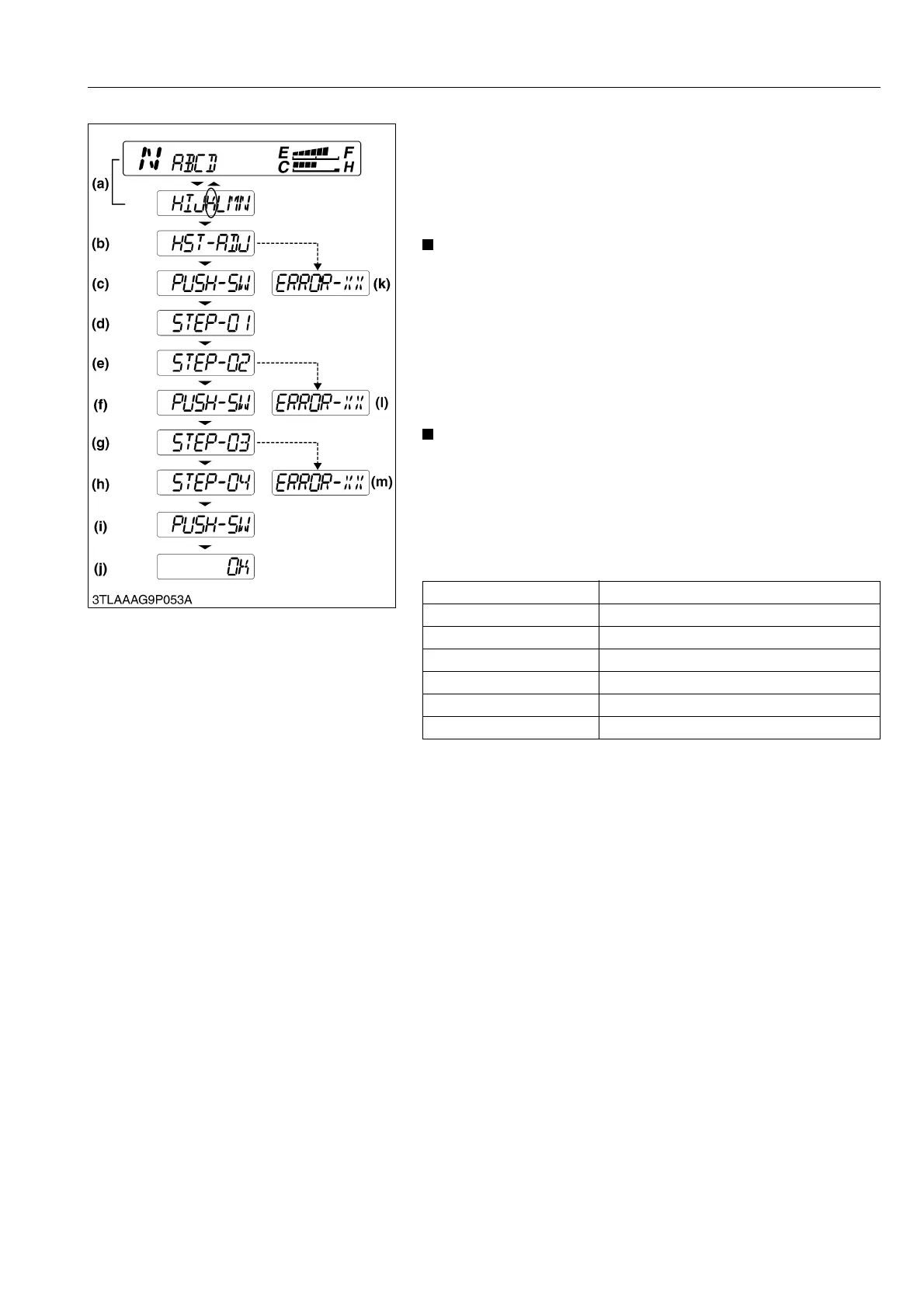

(a) Mode Selection Display
(b) Information Display
(c) Setting Display-1
(d) Adjusting Display-1
(e) Setting Display-2
(f) Adjusting Display-2
(g) Setting Display-3
(h) Setting Display-4
(i) Adjusting Display-3
(j) Correct Preserving Display
(k) Error Display-1
(l) Error Display-2
(m) Error Display-3
KiSC issued 02, 2015 A
