Assembly
Meat Grinder
➀

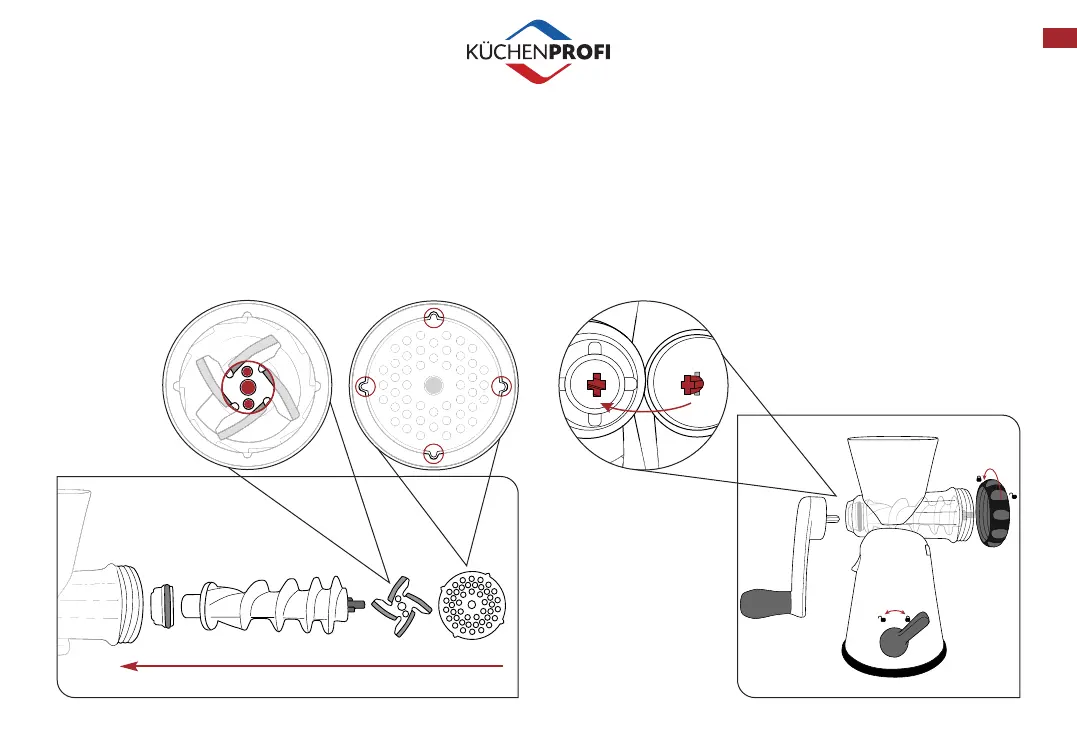

Assembly the meat grinder as per pict. A. Pay attention that
· the 3 pins of the conveyor screw as well as the cutting edge of the
knife are facing outwards.
· the grinding disc is inserted into the housing considering the
respective cavities.
➁ Fix the fastening ring with several clockwise turns. To ensure a correct
function the fastening ring should be fixed carefully so the conveyor
screw can still be moved easily and the knife does not rub against
the housing.
➂ Attach the crank.
➀
➂
Pict. A
