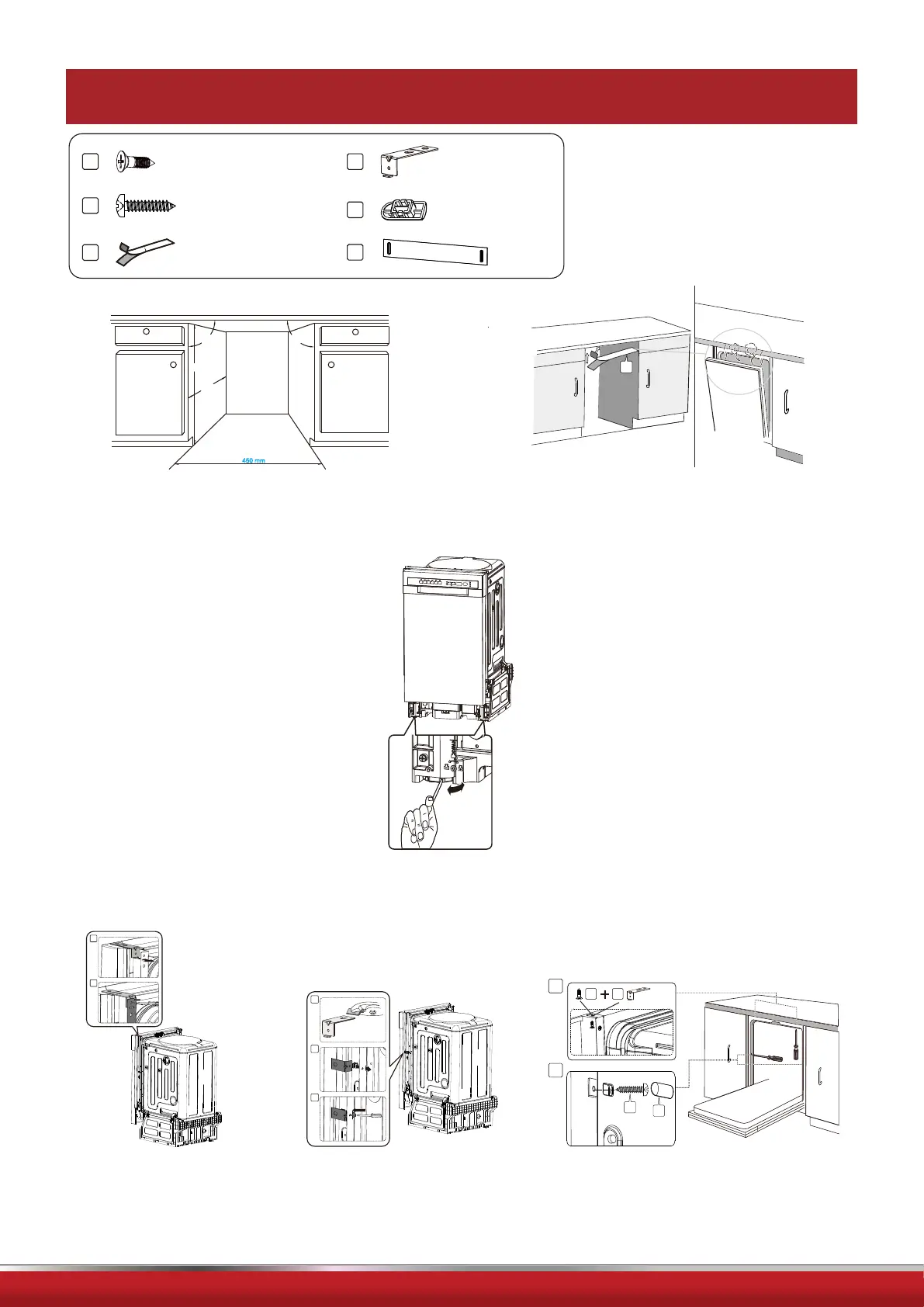

Kucht K7740D - Installation Instructions

FOR MORE DETAILS AND INFORMATION, PLEASE VISIT OUR WEBSITE WWW.KUCHT.COM
INSTALLATION INSTRUCTION S
90 °
90 °
450 mm
825mm
580mm
1
2
2
3
1
Less than 5mm between the top of dishwasher and cabinet
and the outer door aligned to cabinet.
Affix the condensation strip under the work surface of
cabinet. Please ensure the condensation strip is flush
with edge of work surface.
The dishwasher must be secured in place. There are two ways to do this:
A. Normal work surface:Put the installation hook into the slot of the side plane and secure it to the
work surface with the wood screws (Illustration 1 and 2).
B. Marble or granite work top:Fix the side with Screw. (Illustration 1,2 and 3).
Level the dishwasher. The rear food can be adjusted from the front of the dishwasher by turning . To adjust the front feet, use
a flat screw driver and turn the front feet until the dishwasher is level .
3
A
1
4
1
5
B
1
ST4*14
X2
2
ST3.9*13
X2
3
X1
4
X2
5
X2
X1
6
