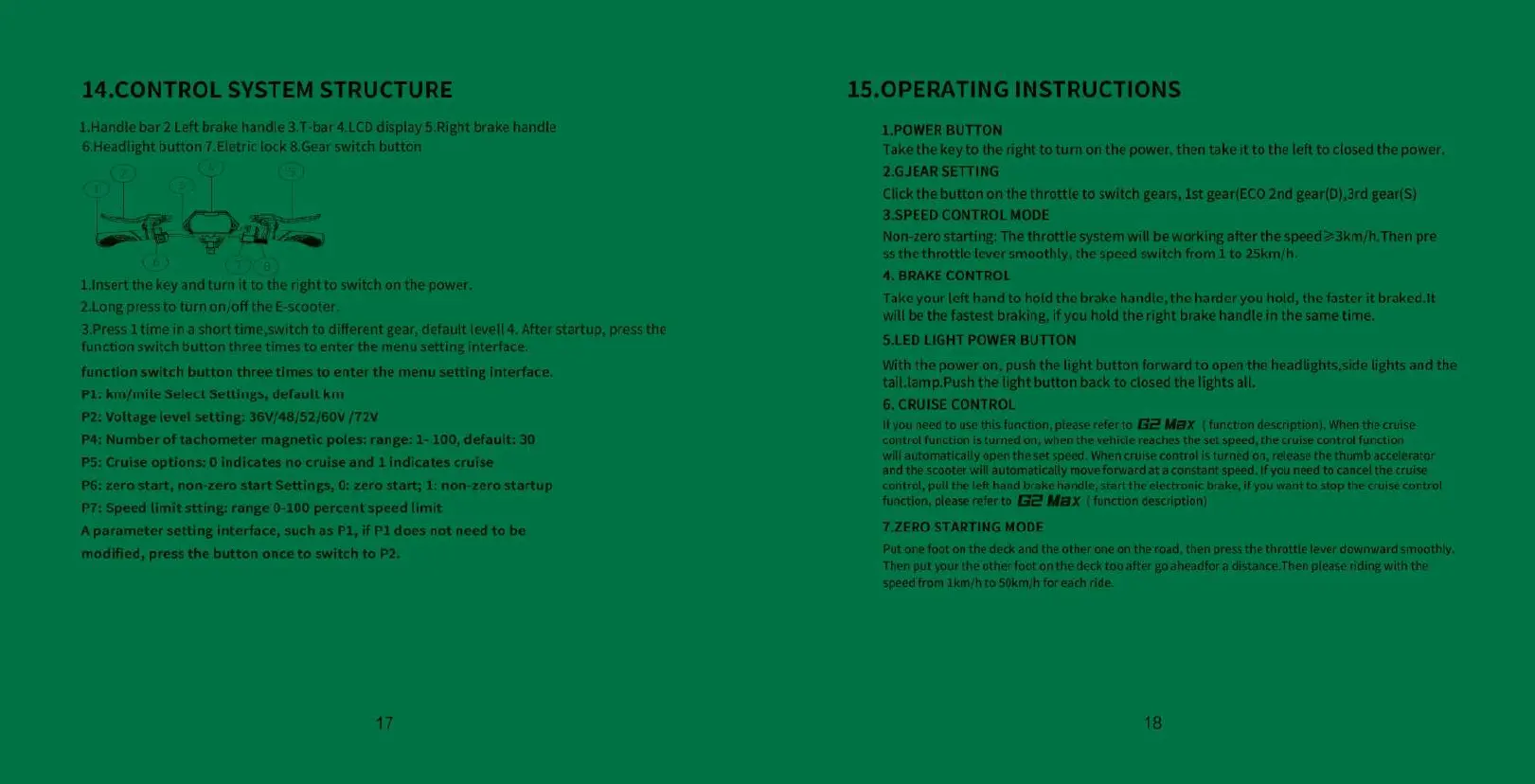

14.CONTROL SYSTEM STRUCTURE
1L.Handle bar 2 Left brake handle 3.T-bar 4.LCD display 5.Right brake handle
6.Headlight button 7.Eletric lock 8.Gear switch button
LlInsert the key and turn it to the right to switch on the power.
2.Long press to turn on/off the E-scooter.
3.Press 1 time in a short time, switch to different gear, default level 4. After startup, press the
function switch button three times to enter the menu setting interface.
function switch button three times to enter the menu setting interface.
P1: km/mile Select Settings, default km
P2: Voltage level setting: 36V/48/52/60V /T2V
Pa: Number of tachometer magnetic poles: range: 1- 100, default: 30
P5: Cruise options: 0 indicates no cruise and 1 indicates cruise
P6: zero start, non-zero start Settings, 0: zero start; 1: non-zero startup
P7: Speed limit stting: range 0-100 percent speed limit
A parameter setting interface, such as P1, if P1 does not need to be
modified, press the button once to switch to P2.
17
15.0PERATING INSTRUCTIONS
1.POWER BUTTON
Take the key to the right to turn on the power, then take it to the left to closed the power.
2.GJEAR SETTING
Click the button on the throttle to switch gears, 1st gear(ECO 2nd gear(D), 3rd gear(s)
3.SPEED CONTROL MODE
Non-zero starting: The throttle system will be working after the speed=>3km/h.Then pre
ss the throttle lever smoothly, the speed switch from 1 to 25km/h.
4. BRAKE CONTROL
Take your left hand to hold the brake handle, the harder you hold, the faster it braked.it
will be the fastest braking, if you hold the right brake handle in the same time.
5.LED LIGHT POWER BUTTON
With the power on, push the light button forward to open the headlights,side lights and the
tail.lamp.Push the light button back to closed the lights all.
6. CRUISE CONTROL.
If you need to use this function, please refer to [F2 MAX (function description). When the cruise
control function is turned on, when the vehicle reaches the set speed, the cruise control function
will automatically open the set speed. When cruise control is turned on, release the thumb accelerator
and the scooter will automatically move forward at a constant speed. If you need to cancel the cruise
control, pull the left hand brake handle, start the electronic brake, if you want to stop the cruise control
function, please refer to IGE MEX ( function description)
7.ZERO STARTING MODE
Put one foot on the deck and the other one on the road, then press the throttle lever downward smoothly.
‘Then put your the other foot on the deck too after go aheadfor a distance. Then please riding with the.
‘speed from 1km/h to 50km/h for each ride.
