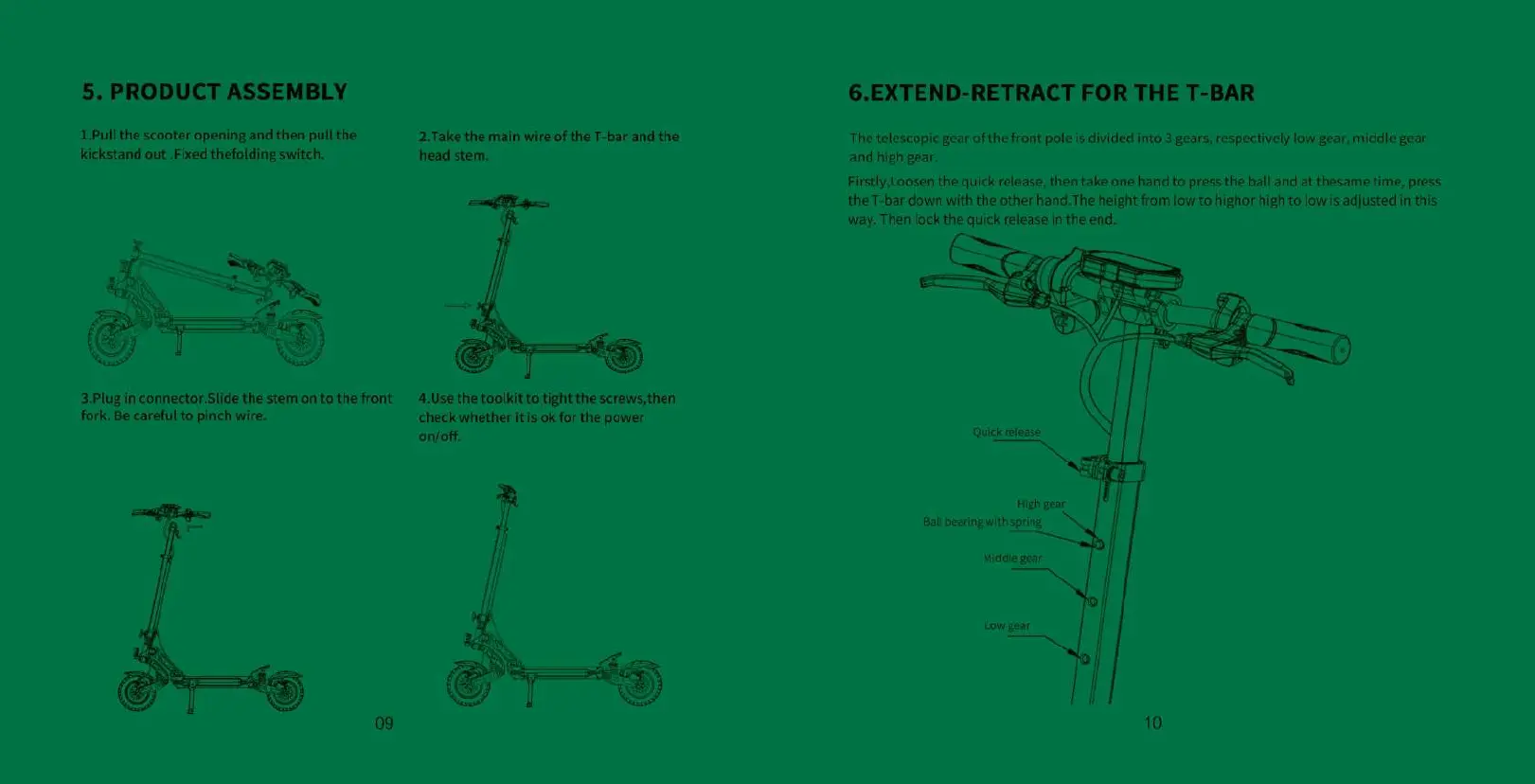

5.
PRODUCT
ASSEMBLY
1.Pull
the
scooter opening
and
then
pull
the
2.Take
the
main
wire
of
the
T-bar
and
the
kickstand
out
.Fixed
thefolding
switch.
head
stem.
3.Plug
in
connector.Slide
the
stem
on
to
the
front
4.Use
the
toolkit
to
tight
the
screws,
then
fork.
Be
careful
to
pinch
wire.
check
whether
it
is
ok
for the
power
on/off.
6.EXTEND-RETRACT
FOR
THE
T-BAR
The
telescopic
gear
of
the
front
pole
is
divided
into
3
gears,
respectively
low
gear,
middle
gear
and
high
gear.
Firstly,Loosen
the
quick
release,
then
take
one hand
to
press
the
ball
and
at
thesame
time,
press
the
T-bar
down
with
the
other
hand.The
height
from
low
to
highor
high
to
low
is
adjusted
in
this.
way.
Then
lock
the
quick
release
in
the
end.
