Transporting and handling the machine
Transport with one person

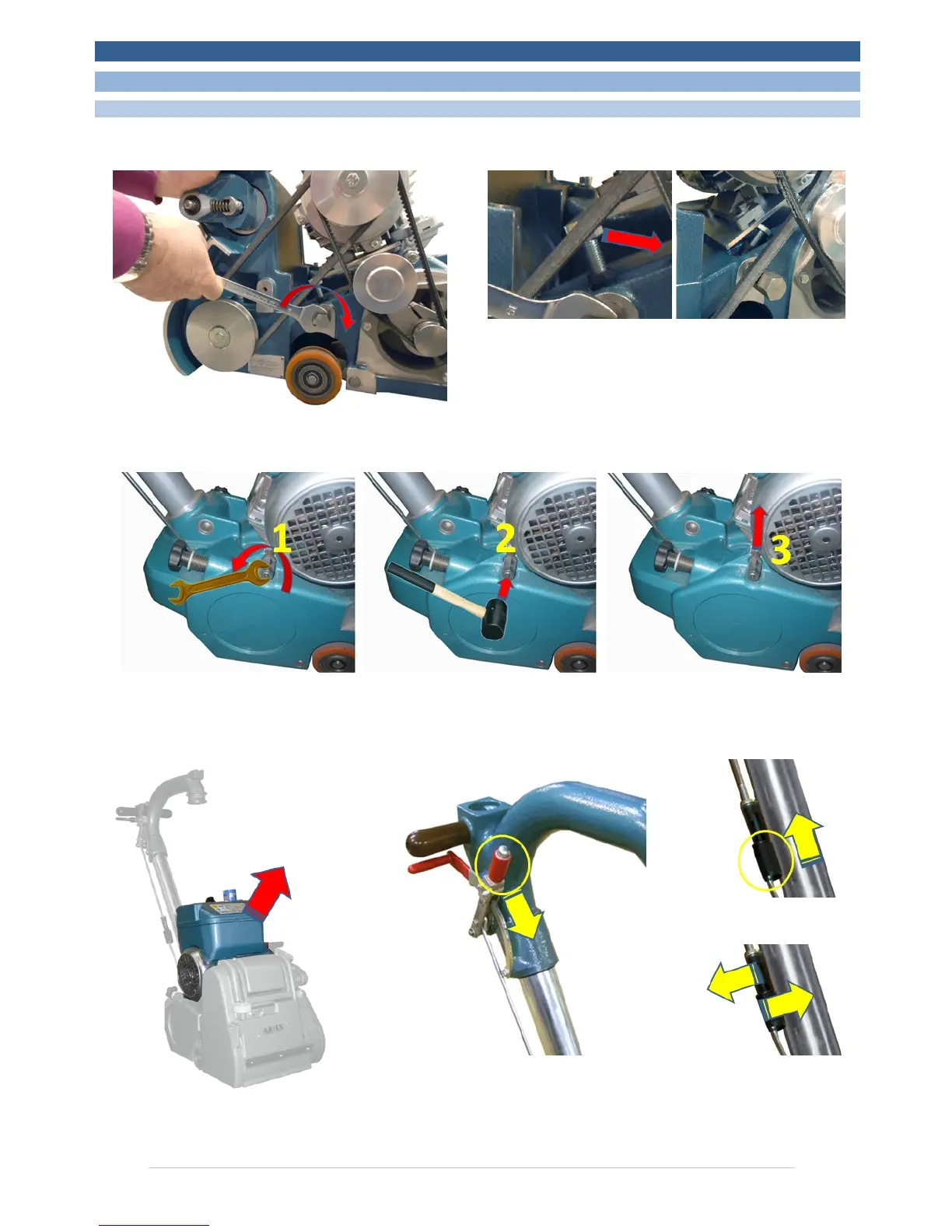

3. Loosen the belt tightener using the lever
(
pos. 2 fig. A
)
and remove the belts.
4. Once the nut has been loosened (pos. 3 fig. A), turn it towards the inside of the machine until the hollow
washers positioned on the motor support spindle come out of their support housings.
5. Remove the motor and take it to the
work area.
6. After lowering the lever (pos. 4 fig. A) lift the tube
(pos. 5) and release the bar (pos. 6) from the cylinder
(pos. 8).
