Electric control system
Service Manual
H8-TA-03

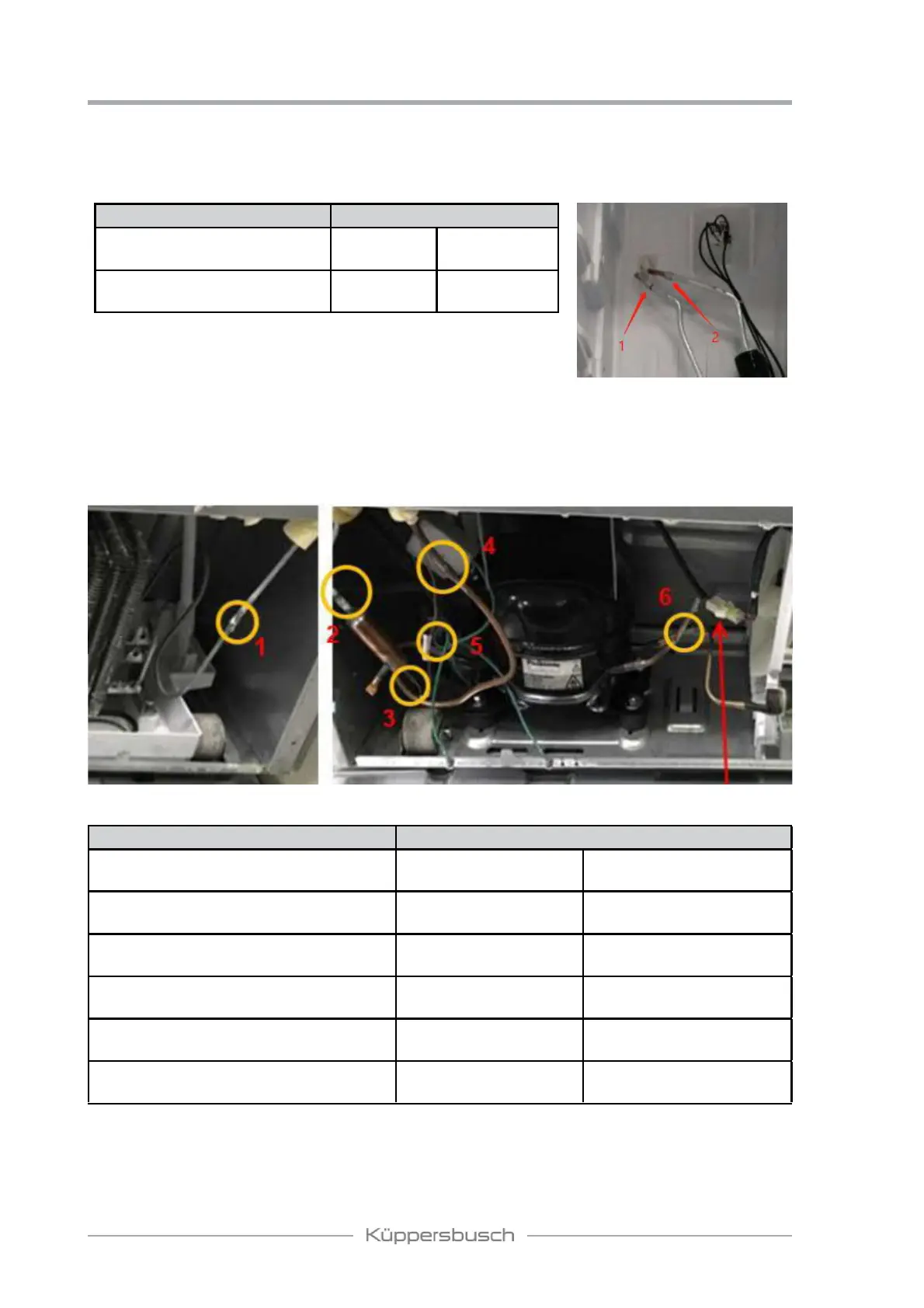

4.8 Welding points in compartments or foam layer
Welding point Pipe outer diameter (mm)
1-Freezer capillary and inlet of
evaporator
Copper pipe:
Φ3
Aluminum pipe:
Φ5.1
2-Heat transition tube and outlet
of evaporator
Copper pipe:
Φ6.35
Aluminum pipe:
Φ8
4.9 Welding points in the compressor case
Welding point Pipe outer diameter (mm)
1-Inlet of anti-condensation tube and outlet
of condenser
Steel pipe:
Φ4.76
Steel pipe:
Φ4.76
2-Outlet of anti-condensation tube and
inlet of dry fi lter
Steel pipe:
Φ4.76
Copper pipe:
Φ6.33
3-Outlet of dry fi lter and inlet of freezing
capillary
Copper pipe:
Φ4.0
Copper pipe:
Φ1.8
4-Heat transition tube and Suction
connection tube
Steel pipe:
Φ6.35
Copper pipe:
Φ6.0
5-Suction connection pipe and
Compressor intake tube
Copper pipe:
Φ6.0
Copper pipe:
Φ8.16
6-Compressor outlet tube and inlet of
condenser
Copper pipe:
Φ6.93
Steel pipe:
Φ4.76
