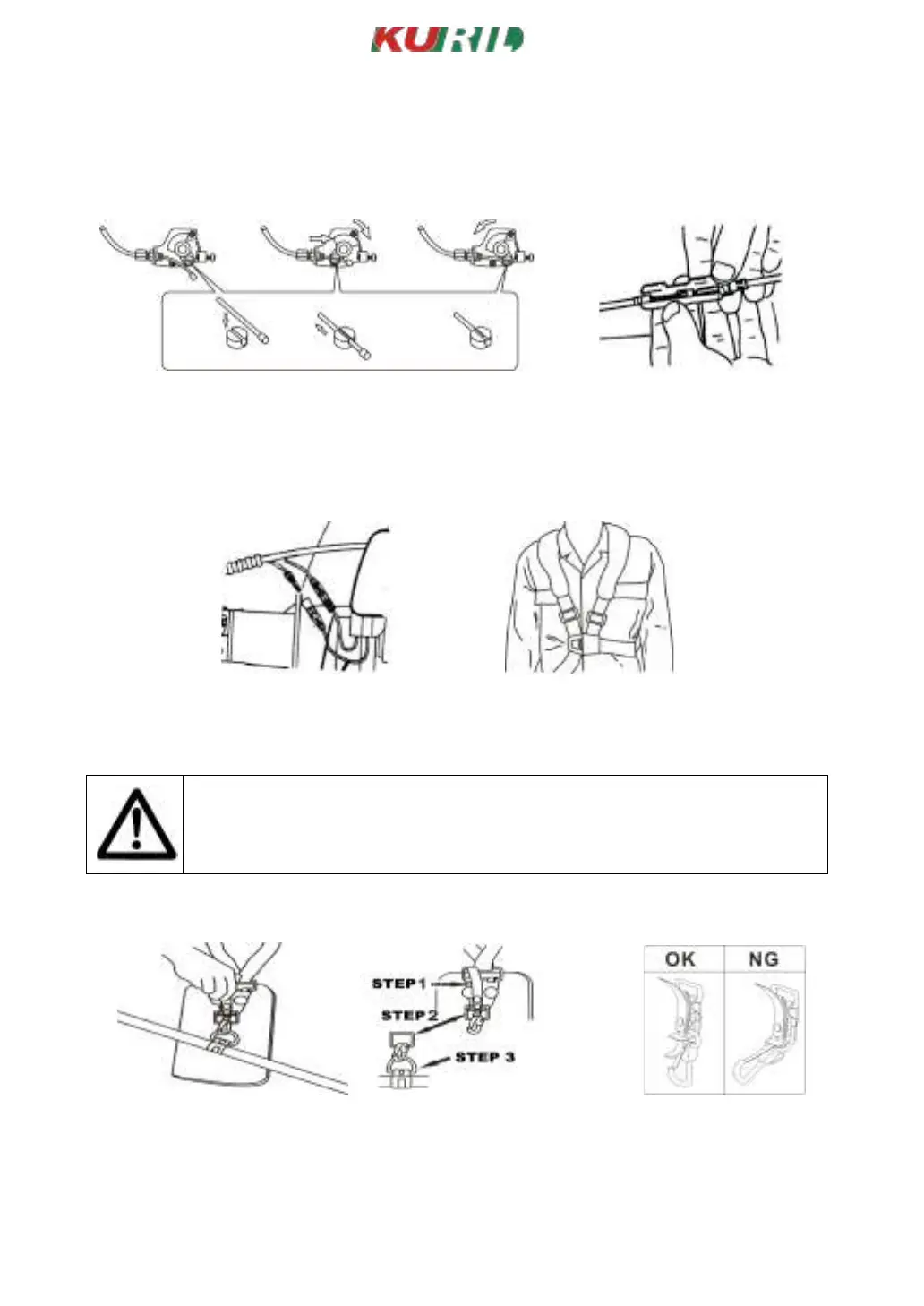

Fig. 4 Fig. 5
7-5. Lead wire
Connect 2 lead wires from the throttle trigger to the corresponding 2 wires from the engine. Fig.6
Fig.6 Fig.7
7-6. Wearing double-shoulder harness
Pass your arms through the straps as if putting on a coat. Buckle the harness at the front of your body.
Set the shoulder pads properly. Fig. 7
The double-shoulder harness has a quick release mechanism so that you can release the harness instantly
in an emergency.
1. Pull the harness grip upward to separate the hook from the harness so that the harness is separated from the trimmer.
2. To re-connect the harness to the trimmer, readjust the grip by pulling it and re-setting the hook ring Fig.8
Fig.8
7-7. Cutting attachment mounting.
For nylon line cutting attachment
1. Match the hole in the side of the cutting attachment guard with the hole in the side of the gear housing.
