7 | ENLGISH
Operating Instructions

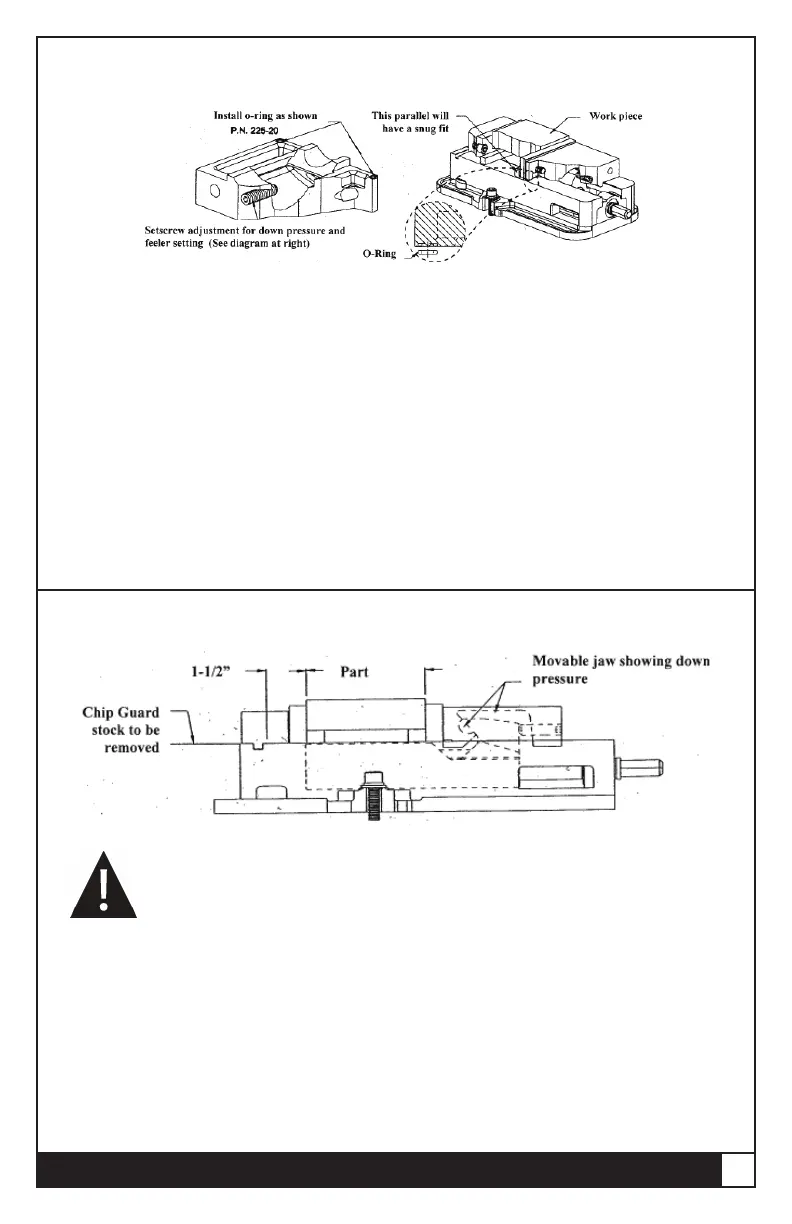

Proper O-Ring installation and usage
Proper Chip Guard installation and usage
Most jobs require a tight contact between the workpiece and the
parallels (see above). This option oered by Kurt Manufacturing
Company is ideal for that. The O-Ring installation will provide for the
movement needed when working with parallels.
Note: We do not recommend using this option with step jaws.
Installation: Install the O-Ring in the movable jaw as shown above in
two places. Tighten the adjustment set screw for a .002” space under
the front face of the movable jaw, then the jaw will tighten down
during clamping and provide down movement, pulling the part onto
the supporting parallel.
Example: Part plus 1 1/2 inches = Length of Chip Guard stock.
Note: Remove Chip Guard stock to lift vise. Corners of Chip Guard
stock if left extended as shown above could cause injury.
CAUTION:
Chip Guard stock shown above is provided to keep chips
from the nut and screw assembly and must be cut and
deburred to meet your application and safety needs.
*This Chip Guard stock should be cuto to ll the opening
between jaw plates.
