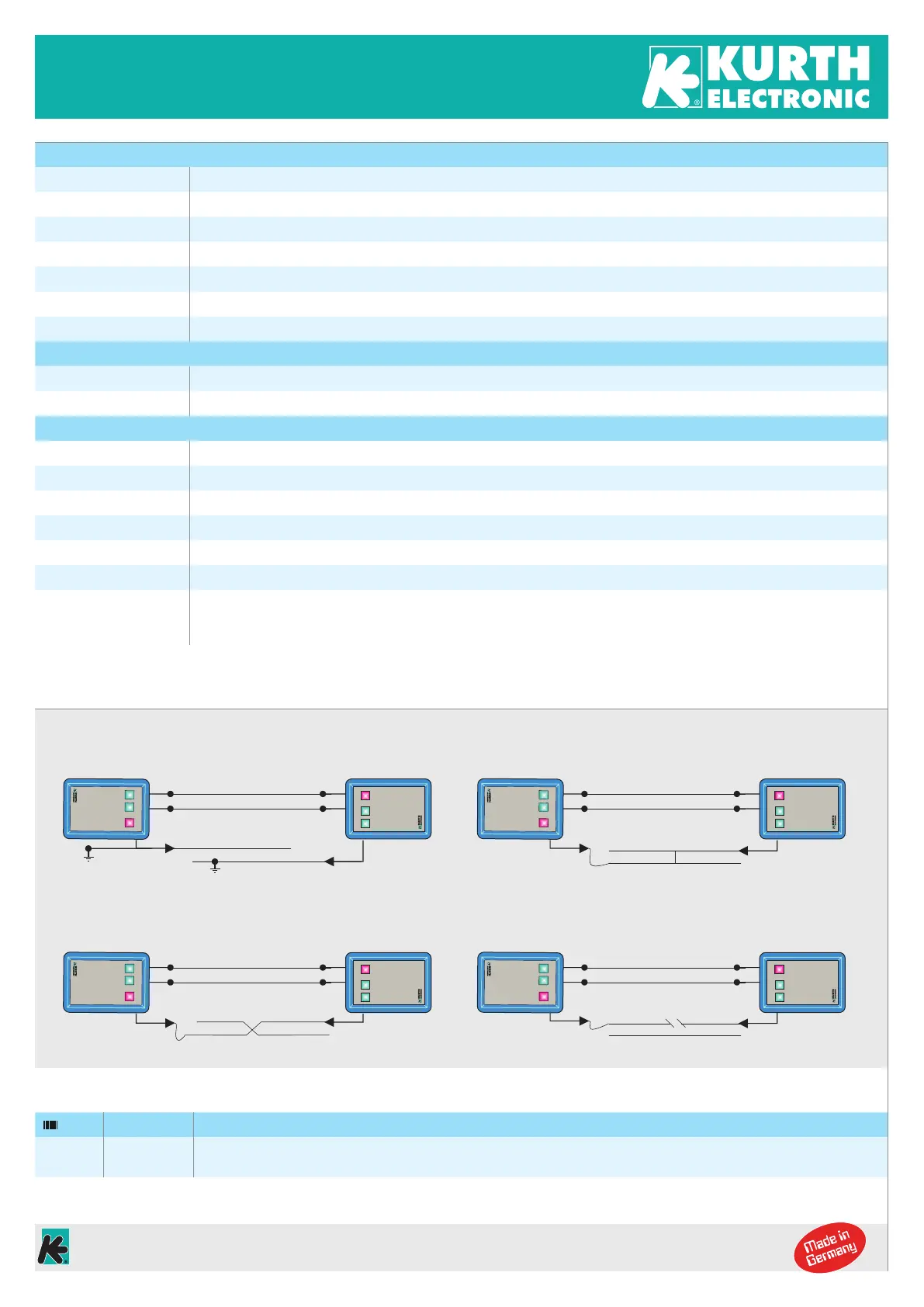

Tone audible if ground fault
Carry out this test only with connected lines!
Wires interchange (overdraft) if tone is audible
Speaking twisted pair
Speaking twisted pair
Test lead additionally
connected to ground
Test lead
30-STCC
30-STCC
CCTS-03CCTS-03
Contact between lines if tone is audible
Interruption or wrong wire if tone is not audible
Speaking twisted pair
Speaking twisted pair
30-STCC
30-STCC
CCTS-03CCTS-03
Test lead
Test lead
Usages
CCTS-03
Housing Sturdy and impact-resistant, weatherproof ABS housing, front foil with short operation guide
Dimensions 160 x 95 x 35 mm
Weight 350 g with battery, test leads and lightweight headset
Power supply 9 V alcaline battery
Operation time Approx. 10 hours with one battery set
Test leads 150 cm test leads made from exible PVC with 4 mm banana plug
Connection Fully insulated alligator clips and probe tip
Universal headset
Weight Approx. 60 g
Features Receiver on one side left or right, noise compensated microphone
Operation
Voice communication Free wire pair, no polarity
Testing Free or live wire pair
Overvoltage protection Self-resetting power protection
Adjustment on occupied line Fully automated
Testing range Up to 2000 Ω
Talking range > 3000 Ω
Loop resistance
In regard to cable length without winding: Wire diameter 0.4 mm approx. 285 Ω/km
Wire diameter 0.6 mm approx. 117 Ω/km
Wire diameter 0.8 mm approx. 66 Ω/km
Type Description
0.49617 CCTS-03
Cable conductor test set CCTS-03, test leads 1.5 m, 2x black and 1x red, 2x fully insulated clips KLEPS30 black, 1x test probe PRÜF2 red,
1x universal headset, 1x Cordura pouch
Operating manual
Cable Conductor Test Set CCTS-03
