360210-AH Rev.A 504/534FTB Installation AH - 9

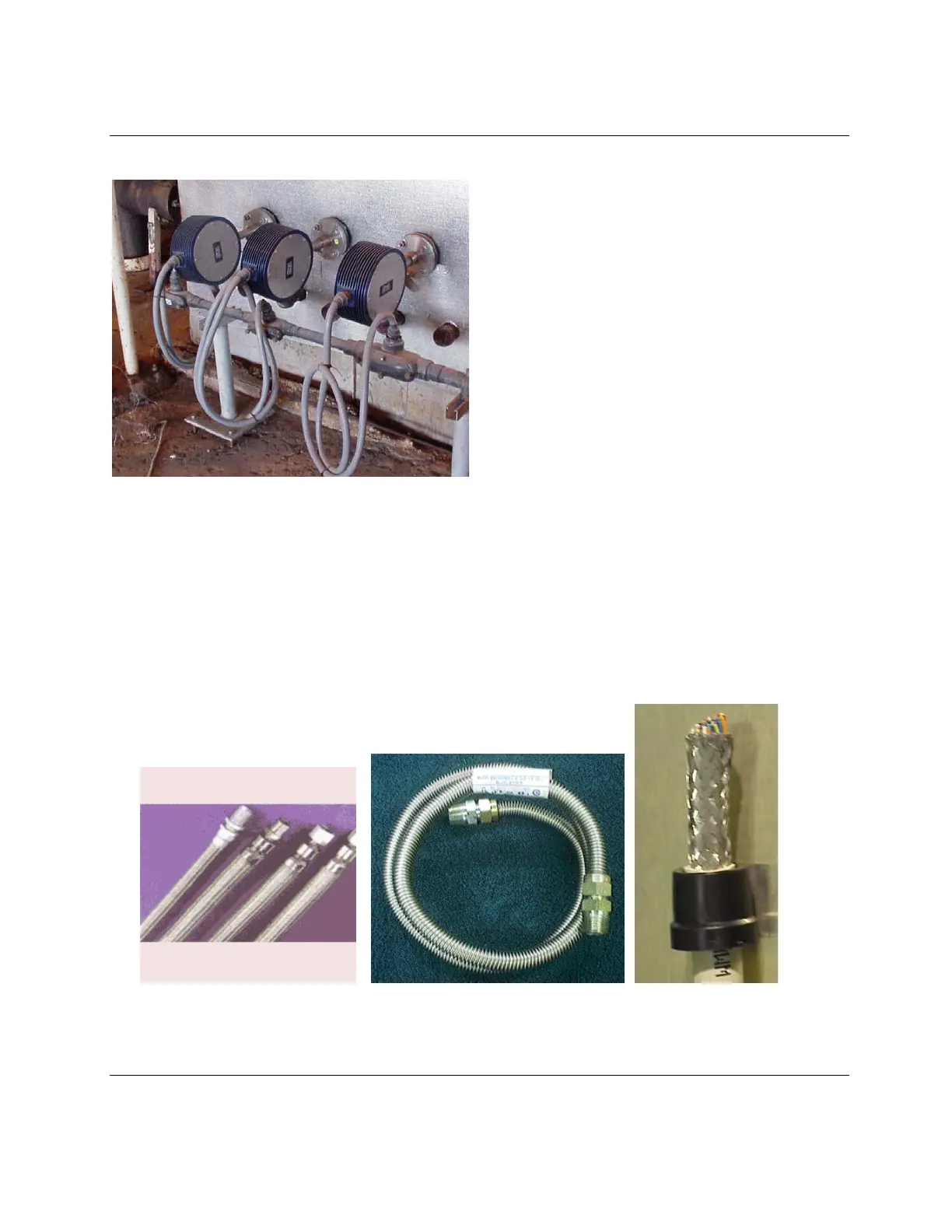

Figure AH-5. Flex sensor connection for
service loop, TA version using Liquid Tight
Conduit.
Approved EMC tight flexible, shielded electrical connections for the TS 5-wire sensor
wiring
• Braid reinforced pneumatic hose; Hydraulic line hose
• Corrugated Stainless Steel tubing, with compression fitting at each end. Gas
appliance flex fittings may be long enough and are available at local home
improvement outlets.
• Braded Shielded cable with peripheral bonded shield cable glands
Figure AH-6. Metal Braid Hydraulic Lines, corrugated gas appliance line and braided
shielded cable all work well for EMC shielding of 5-wire sensor connections.
