Kurz Instruments Inc. December 13, 2007
360210-AH Rev.A 504/534FTB Installation AH - 6
700494-) frame or pipe stand are sufficient. It is important to know that the sensor serial
number must be matched with the same serial number electronics unit. These two
parts are not interchangeable unless the electronics configuration file is matched with
the sensor serial number.
Power and Signal wires. 2x
¾” conduit ports
Conduit seal for
Ex applications
Sensor Wire
Port: ¾” NPT

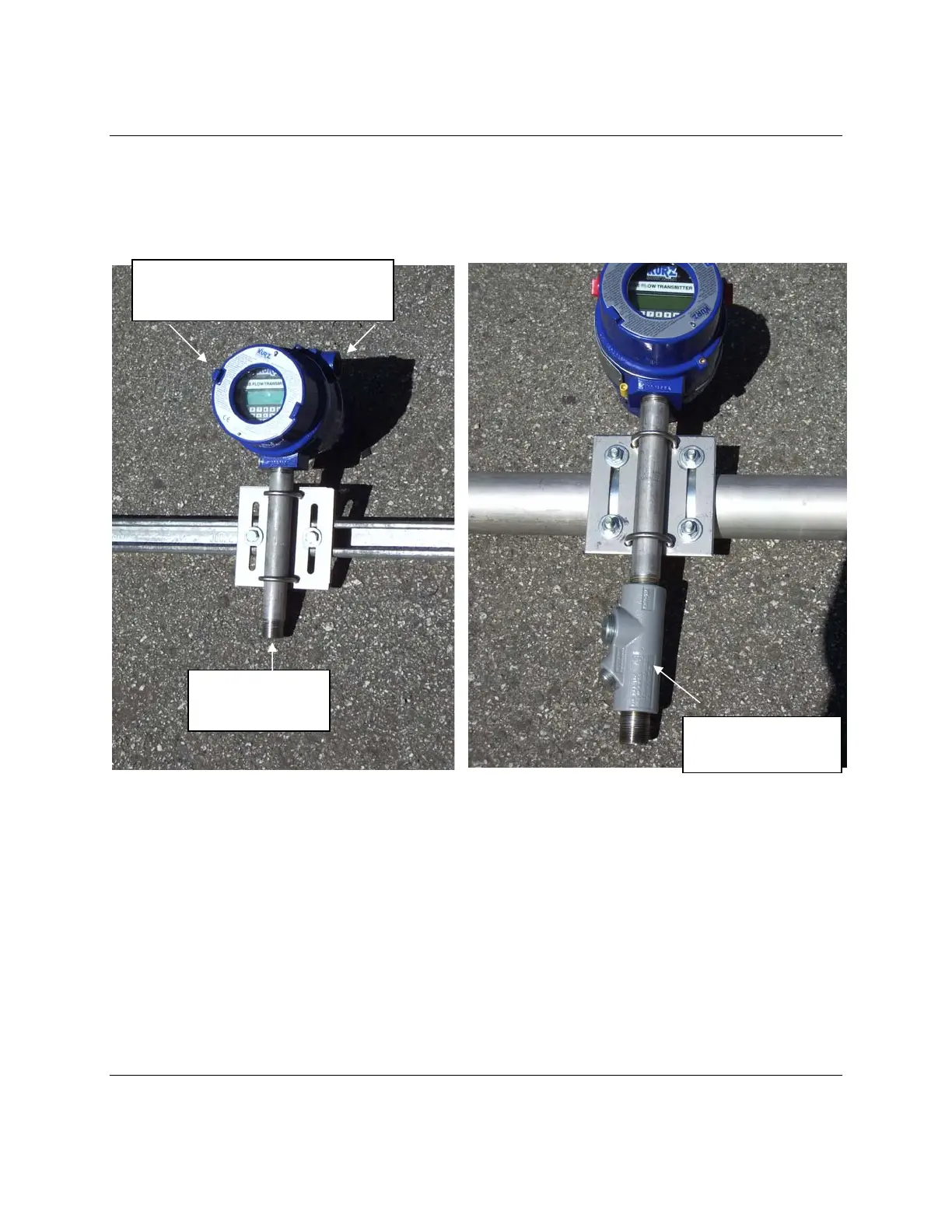

Figure AH-4. Examples of Unistrut and Pipe mounting of the TS configured electronics
using the optional mounting kit, 700494-.
Field Wiring
Proper wiring installation of the MFT B-Series flow transmitters may include some or all
the flowing issues:
• Safety Grounding and Explosion-Proof enclosure connections.
• Water ingress protection
