Kurz Instruments Inc. December 13, 2007
360210-AH Rev.A 504/534FTB Installation AH - 5
Electronics Head Orientation
The electronics head is provided in two standard orientations compared to the sensor
flow arrow or flow direction. When looking at the display and the flow is to the right, this
is the normal configuration (see figure AH-1) and flowing to the left is reverse. This
option is selected in the model part number when the unit is ordered.
Rotating the head in the field can damage the sensor wires and result in a loose
connection which results in water leakage or other warrantee and hazardous area
safety violations.
TS Version
For transmitter separate versions (TS) there are two enclosure groups. The sensor
enclosure mounts as described above and contains just a sensor wire terminal board.
Sensor Wires

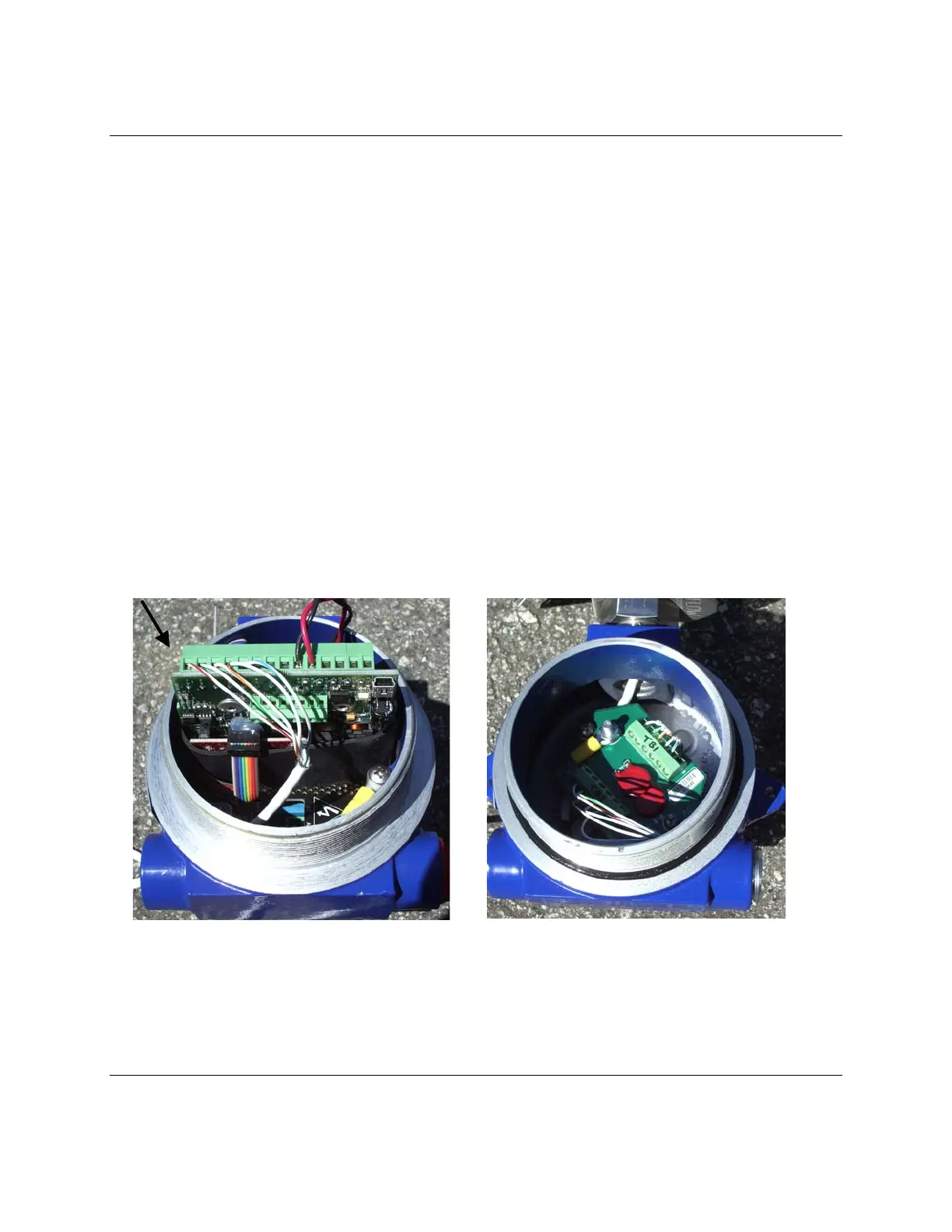

Figure AH-3. Sensor electronics enclosure and sensor J-box with covers removed
The electronics enclosure contains the sensor control board, optional AC power supply
and LCD/keypad and is mounted via the pipe nipple as shown in Figure AH-4. Two U
clamps around the pipe nipple to a metal mounting adaptor (Optional Kurz part #
To Next Page
