DSP Functions
Equalization (EQ)
14-24

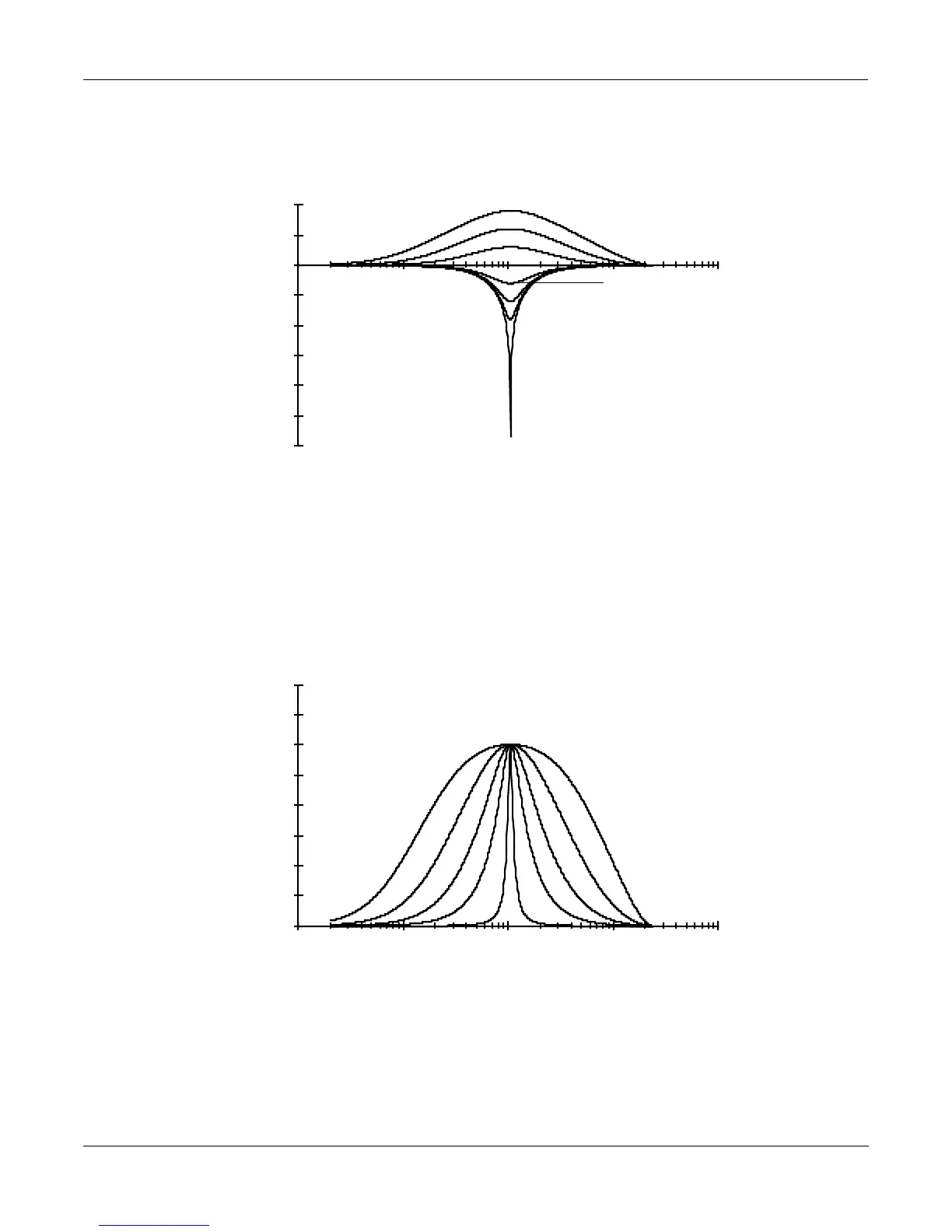

When you’re using the Parametric EQ, you might use the following sequence. Set the center
frequency (press the F1 FRQ soft button to select its control input page). The frequency is
measured in terms of each note of the keyboard. The frequency in Hertz of each note appears
with the note name as the value for the Adjust parameter. Next, select the width control input
page (the F2 WID soft button) to determine how wide a range will be affected by the amplitude
adjustment. Then select the amplitude control input page (F3 AMP soft button), and adjust the
amplitude of the range you specified with the center frequency and width settings. You’ll
probably jump back and forth between these three pages until your ear is satisfied with the
sound.
EditProg:F1|FRQ(PARA|EQ)|||<>Layer:1/1||
Adjust:C|4|262Hz||||Src1||:OFF||||||||||
Fine||:0ct||||||||||Depth|:0ct||||||||||
||||||||||||||||||||Src2||:OFF||||||||||
KeyTrk:0ct/key||||||DptCtl:OFF||||||||||
VelTrk:0ct||||||||||MinDpt:0ct||||||||||
Pad|||:0dB||||||||||MaxDpt:0ct||||||||||
<more||F1|FRQ|F2|WID|F3|AMP|F4|AMP|more>
-60
-50
-40
-30
-20
-10
0
10
20
10 100 1000 10000 100000
Frequency in Hertz
Amplitude in dB
Cutoff frequency = C 6;
width = 2 octaves;
gain at -96, -18, -12, -6, 0, 6, 12, 18 dB
-6
-18
-96
18
0
2
4
6
8
10
12
14
16
10 100 1000 10000 100000
Frequency in Hertz
Amplitude in dB
Cutoff frequency = C 6;
gain = 12 dB;
width from .1 to 4 octaves
4
.1
To Next Page
