DSP Functions
The DSP Functions
16-19
If you leave the center frequency constant and assign an LFO to vary the width, partials with
frequencies above the center will shift their pitches in the opposite direction of partials below
the center frequency.
EditProg:F2|WID(2P|ALPASS)|<>Layer:1/1||
Adjust:0.010oct|||||Src1||:OFF||||||||||
||||||||||||||||||||Depth|:0.00oct||||||
||||||||||||||||||||Src2||:OFF||||||||||
KeyTrk:0.000oct/key|DptCtl:OFF||||||||||
VelTrk:0.00oct||||||MinDpt:0.00oct||||||
||||||||||||||||||||MaxDpt:0.00oct||||||
<more||F1|FRQ|F2|WID|F3|AMP|F4|AMP|more>

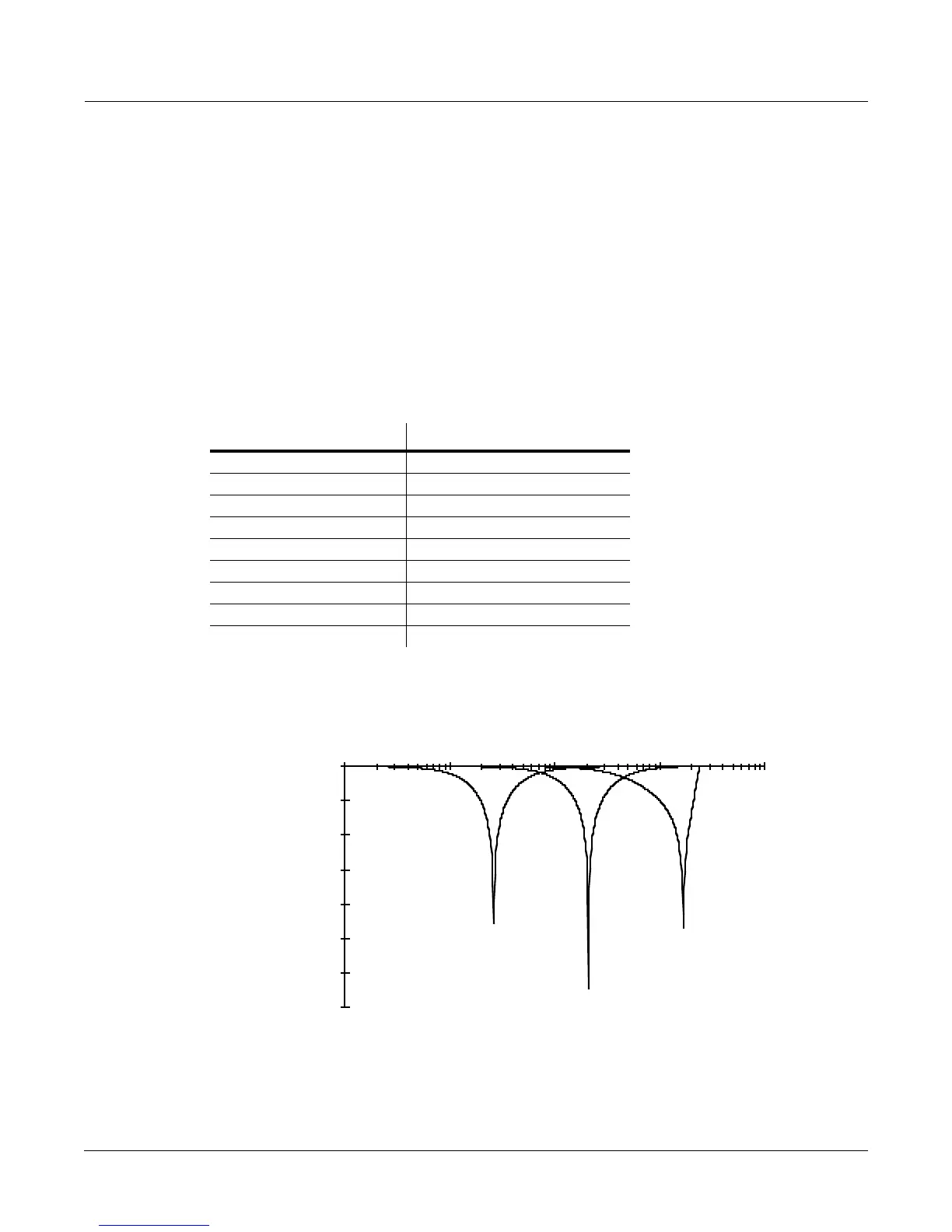

Two-pole Notch Filter (NOTCH FILTER)
Parameter Range of Values
Adjust 0.010 to 5.000 octaves
Key Tracking ± .200 octaves per key
Velocity Tracking ± 5.00 octaves
Source 1 Control Source list
Source 1 Depth ± 5.00 octaves
Source 2 Control Source list
Source 2 Depth Control Control Source list
Minimum Depth, Source 2 ± 5.00 octaves
Maximum Depth, Source 2 ± 5.00 octaves
-70
-60
-50
-40
-30
-20
-10
0
10 100 1000 10000 100000
Frequency in Hertz
Amplitude in dB
Width = 2 octaves;
Center frequency
at C 4, C 7, C 10
C 4
C 10
