Kushlan 450DD - Main Frame and Gearbox Assembly; Main Frame Preparation; Gearbox and Motor Mounting

Assembly Instruction
8

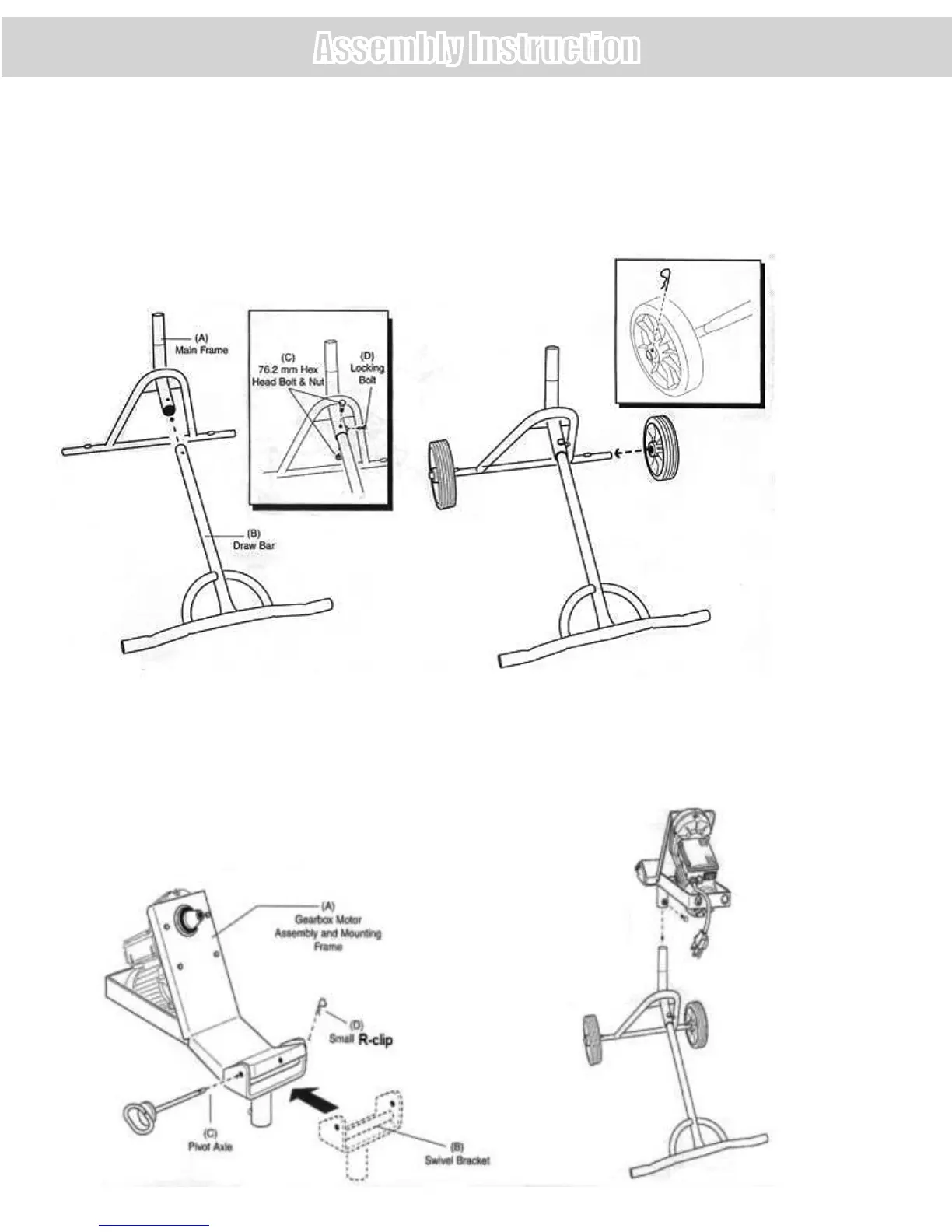

Step. 1
Main Frame
Place the main frame (A) on a level surface. Insert the draw bar (B) into the main frame. Secure with the
76.2 mm hex head bolt and nut (C) on top (A), and the looking bolt (D) to the side (B). (Use the open
wrench provided).
Wheels - Slide the wheels onto the main
frame bar and secure with cotter pins.
Step. 2
Gearbox & Motor Assembly
Fit the gearbox motor assembly and mounting frame (A) into the swivel bracket (B) with the pivot axle
(C). Slide the cotter pin (D) through the pivot axle hole.
Slide the swivel bracket onto the upright
main frame. e gearbox and motor
assembly are mounted into this swivel
bracket.
(When mixing, align the drum in the
position you intend to poor from, tighten
down stability bolt and start unit. Add
ingredients while drum is rotating for
thorough mixing and easy pouring.)
