Level Best Constrol Replacement Page 4
Flush Panel Mount
Application (Not shown)
Inspect the location for flush mounting
the control panel and insure that there is
adequate space for the box portion of
the control panel and the multi-wire
cable connections. Using the template
shown below, layout and cut the
opening. Route multi-wire cable through
the opening in the dash and insert the
connectors into the receptacles on the
back of the control panel. The control
panel should fit snugly into this opening.
Remember, it’s easier to cut the opening
too small and enlarge it to fit rather than
to cut it too large and have to fill the
opening back in.
NOTE: When the control panel has
been installed and the wires have been
routed, seal any holes you may have
drilled from the interior to the exterior of
the vehicle with a silicone sealant.
Completing the Wiring
Connections
1. Check that all system ground
harness connections are firmly
attached.
2. The final connection is the 8 ft. red
#4 cable from the pump motor’s
solenoid to the positive terminal on
the chassis battery.

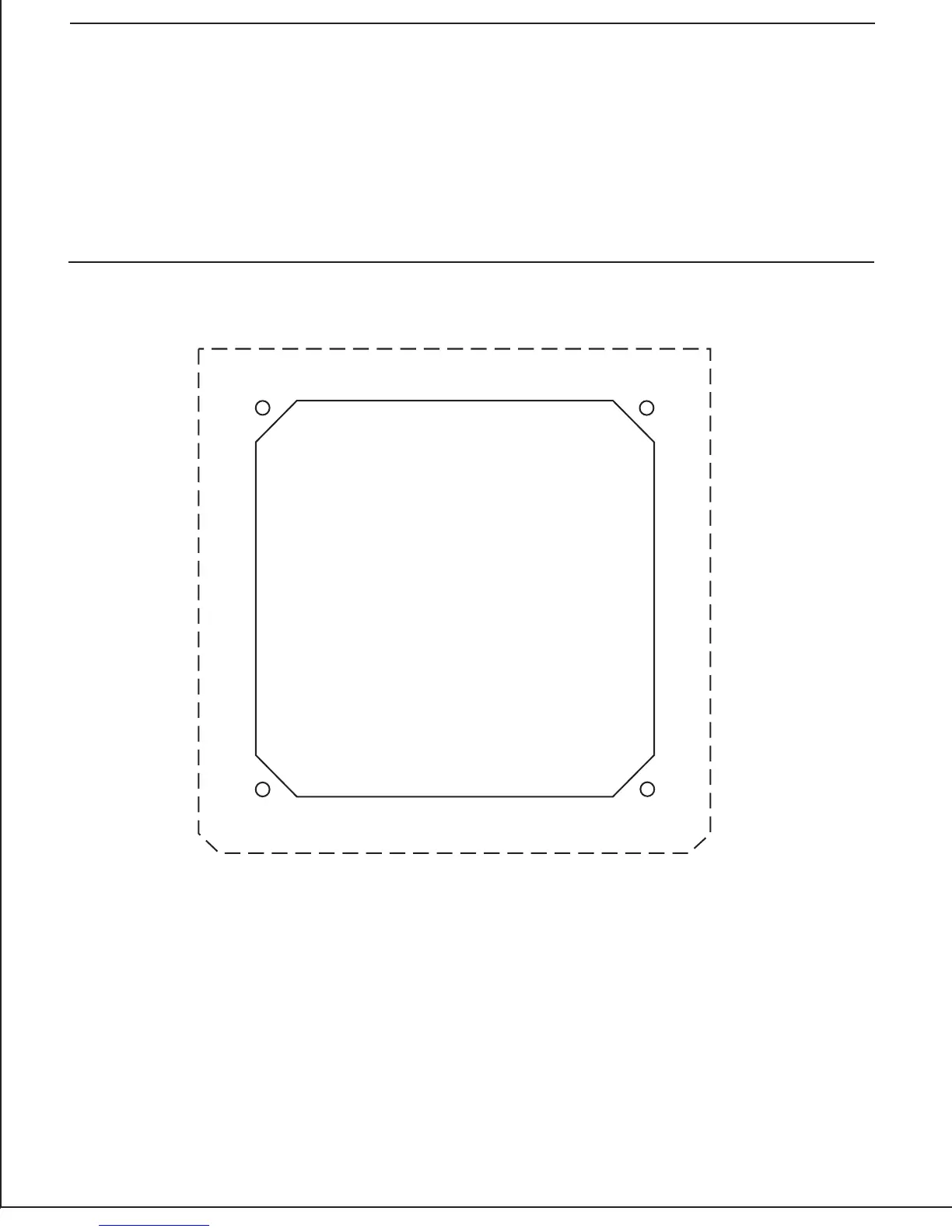

Template for Touchpad
