KYMCO GRAND DINK 250 User Manual

8. DRIVE AND DRIVEN PULLEYS/
KICK STARTER
8-14
GRAND DINK 250

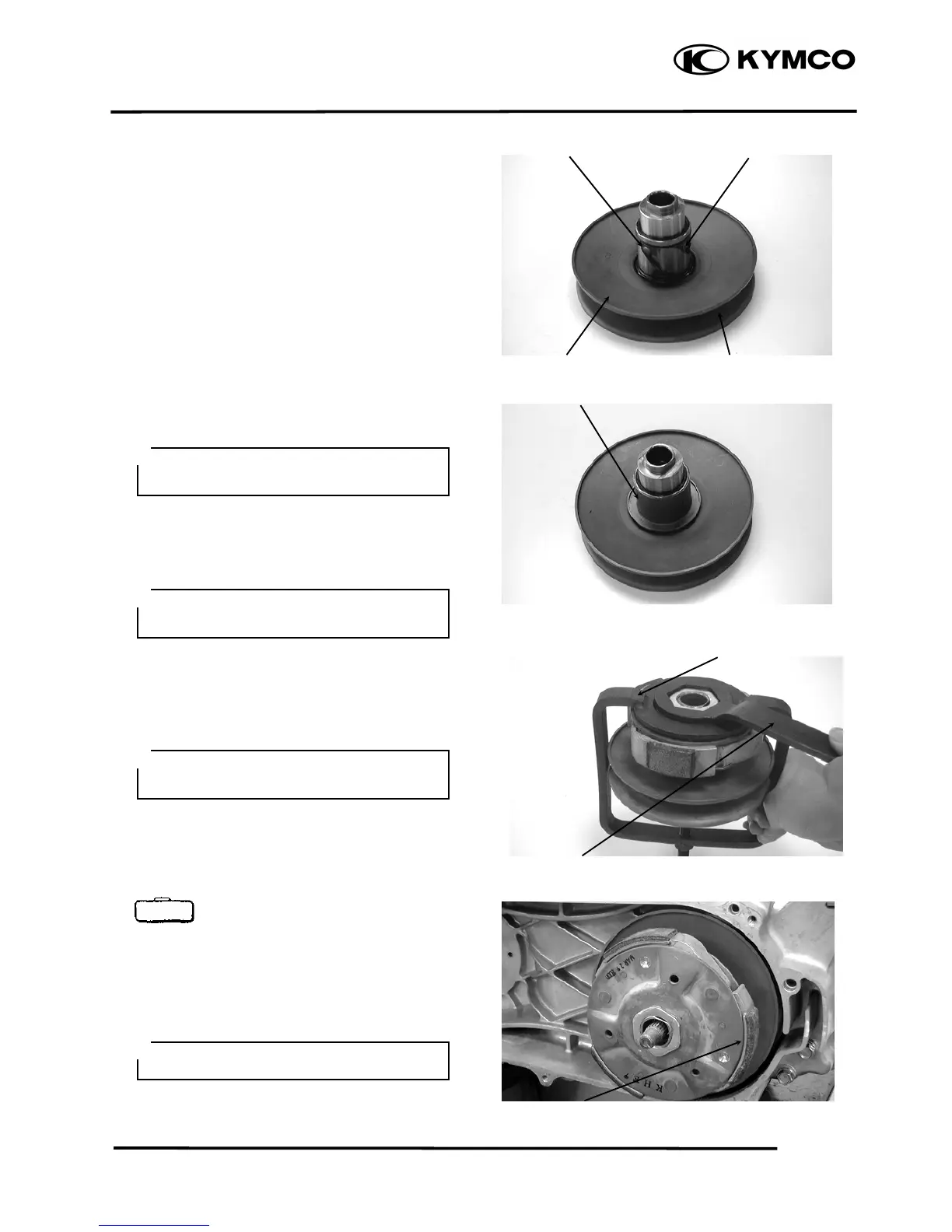

Install the movable driven face onto the
driven face.
Apply grease to the guide rollers and guide
roller pins and then install them into the holes
of the driven face.
Install the seal collar.
Remove any excessive grease.
Set the driven pulley assembly, driven face
spring and clutch assembly onto the clutch
spring compressor.
Compress the tool and install the drive plate
nut.
Set the tool in a vise and tighten the drive
plate nut to the specified torque.
Torque: 49.058.8N-m
Clutch Spring Compressor
Outer Driver, 39mm
INSTALLATION
Install the clutch/driven pulley onto the drive
shaft.
Guide Roller Pin
Guide Rolle
r
Driven Face
Movable Driven Face
Seal Colla
r
• Be sure to clean the driven face off any
grease.

• Align the flat surface of the driven face
with the flat on the clutch drive plate.

Clutch S
p
rin
g
Com
p
resso
r
• Keep grease off the drive shaft.

Clutch/Driven Pulle
y
Lock Nut Wrench
• Be sure to use a clutch spring
compressor to avoid spring damage.

Special

KYMCO GRAND DINK 250 Specifications

General

Displacement	249.1 cc
Cooling System	Liquid-cooled
Fuel System	Electronic Fuel Injection
Transmission	CVT
Front Suspension	Telescopic fork
Rear Suspension	Dual shock absorbers
Front Brake	Disc
Rear Brake	Disc
Front Tire	120/70-12
Rear Tire	130/70-12
Seat Height	780 mm
Engine Type	4-stroke, Single-cylinder
