dV-DOSC dV-SUB Manual V3.0 June 2005 24
SUBWOOFER RIGGING ACCESSORIES
BUMPSUB
Flying bar for rigging up to eight SB218 enclosures deep in a vertical line array
dV-BUMP2
Flying bumper for rigging up to six dV-SUB enclosures deep in a vertical line array
(also an alternative to dV-BUMP for rigging dV-DOSC and/or dV-SUB)
BUMPSUB
dV-BUMP2

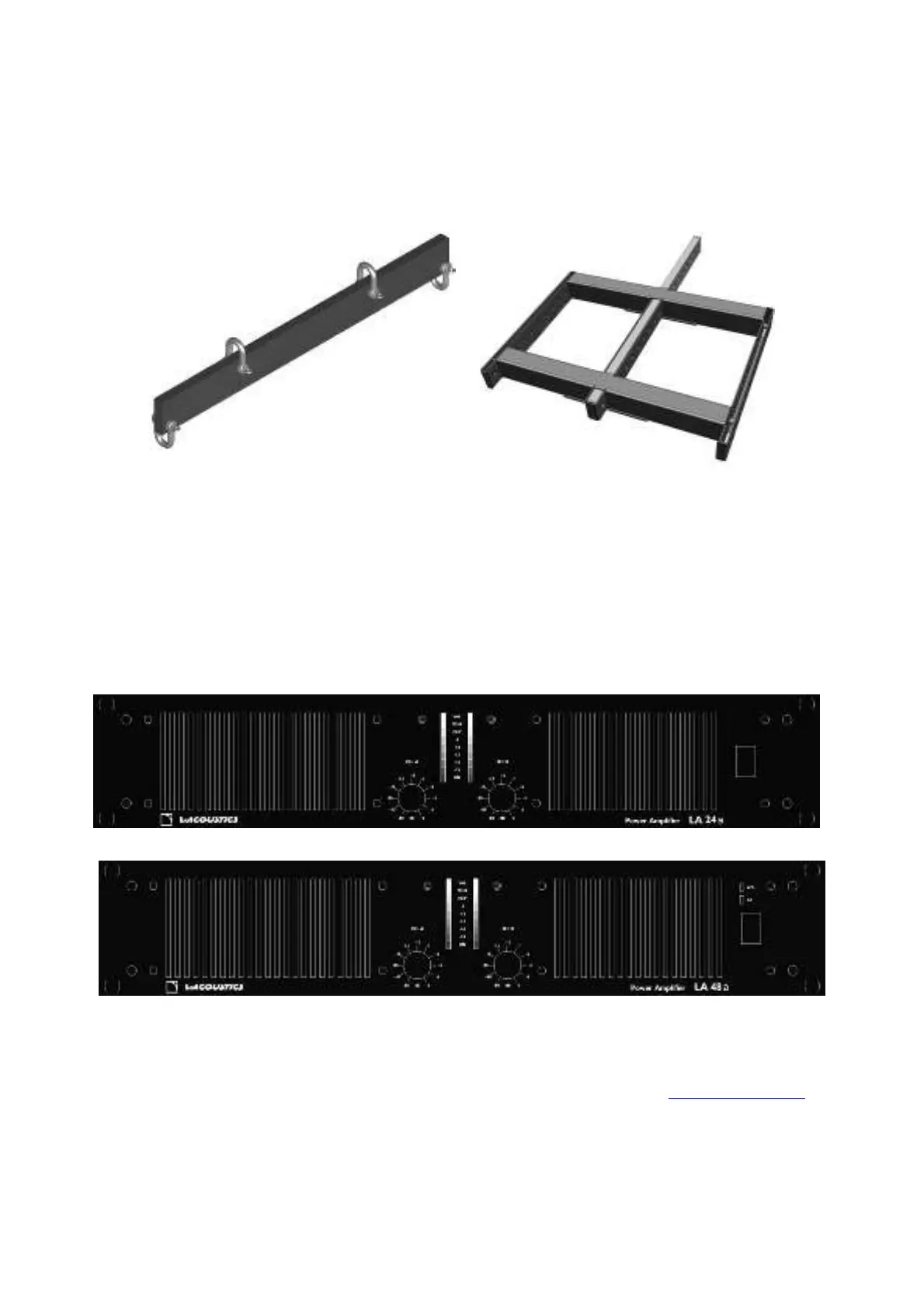

Figure 10: Subwoofer Rigging Accessories
AMPLIFICATION
L-ACOUSTICS LA24a
Compact, light weight two-channel power amplifier (2 rack units, 10 kg), 1100 watts per channel into
8 ohms, 1500 watts per channel into 4 ohms.
L-ACOUSTICS LA48a
Compact, light weight two-channel power amplifier (2 rack units, 10 kg), 1300 watts per channel into
8 ohms, 2300 watts per channel into 4 ohms.
L-ACOUSTICS LA24a
L-ACOUSTICS LA48a
Figure 11: L-ACOUSTICS LA24a, LA48a power amplifiers
Note: For full details see the LA24a, LA48a user manuals (available for download on:
www.l-acoustics.com)
