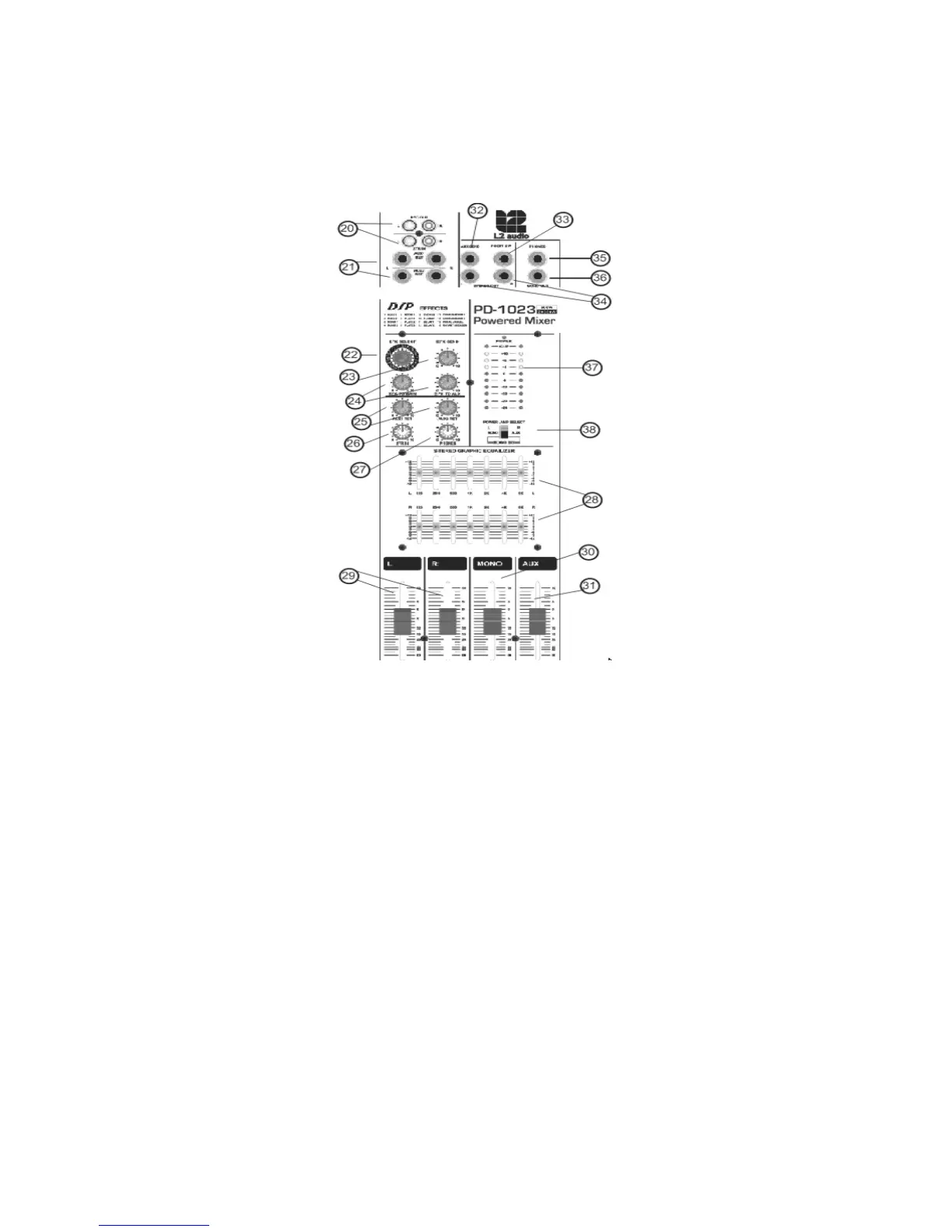

18. Line -10dB. (Channels 7&8, 9&10 only) This reduces the gain of the channel by 10dB. Use
this facility if you are putting line level feeds such as playback, keyboards, etc into the
stereo channels.
19. Mic gain. (Channels 7&8, 9&10 only). This sets the level of the incoming microphone signal.
The gain range is 10 – 60dB.
20. Rec out/2 track in. This allows you to plug a music source (CD, MP3 player) into the mixer
without having to use up one of the main channels. Record out will allow you to record
onto a recording medium such as a CDR, MP player or mini disc.
21. Aux 1&2 returns. Used for returning external effects units, etc. If you are returning a mono
signal, the left return should be used. Can also be used as additional line inputs for drum
machines, etc.
22. DSP effects processor. Here you can choose any one of 16 preset digital effects by using
the rotary pot to select the desired effect.
23. EFX Send. This pot enable you to dial in the right amount of effects
24. EFX to main/EFX to aux. This enable you to dial a different amount of effects to the out
front mix and the aux when using as a fold back.
25. Aux returns 1&2. These control the level of the signal returning into the send and return
loop
26. 2 track in. This controls the level for the Playback in from CD, MP3, mini disc, etc.
27. Phones. This controls the signal level in of the headphones.
