LAARS HEATING SYSTEMS
Page 18

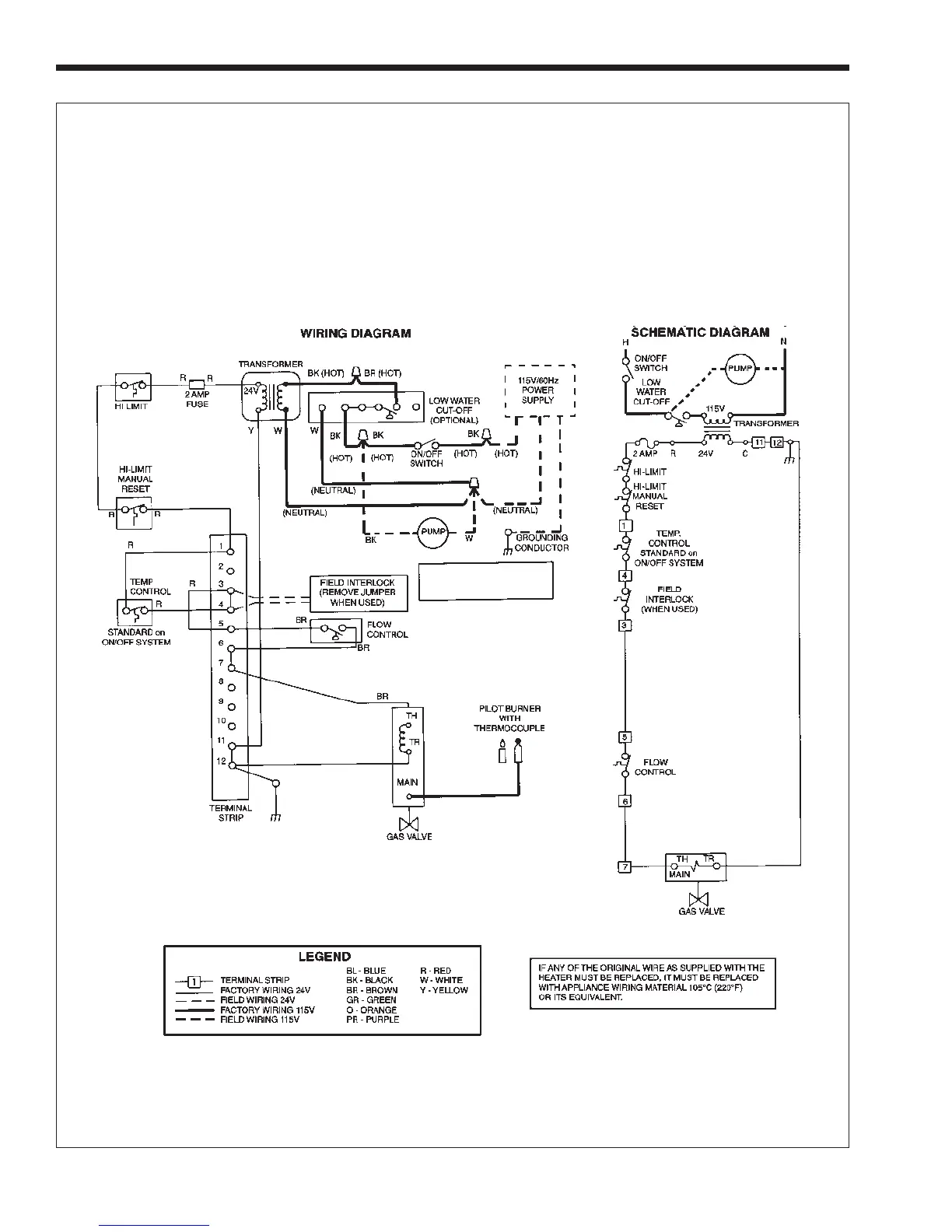

Figure 26. Typical example of wiring schematic, System 1.
IGNITION SYSTEM NO. 1 - STANDING PILOT
ON/OFF OR MECHANICAL MODULATION
Volume Water Heaters (325-400) Version B
Natural or Propane Gas
PUMP INCLUDED ON PW
MODELS, FIELD SUPPLIED
ON VW MODELS
