Chapter 6: Using the RS232 Receptacle
Product Service 816-
333-8811 or 1-800-522-7658
31
5.

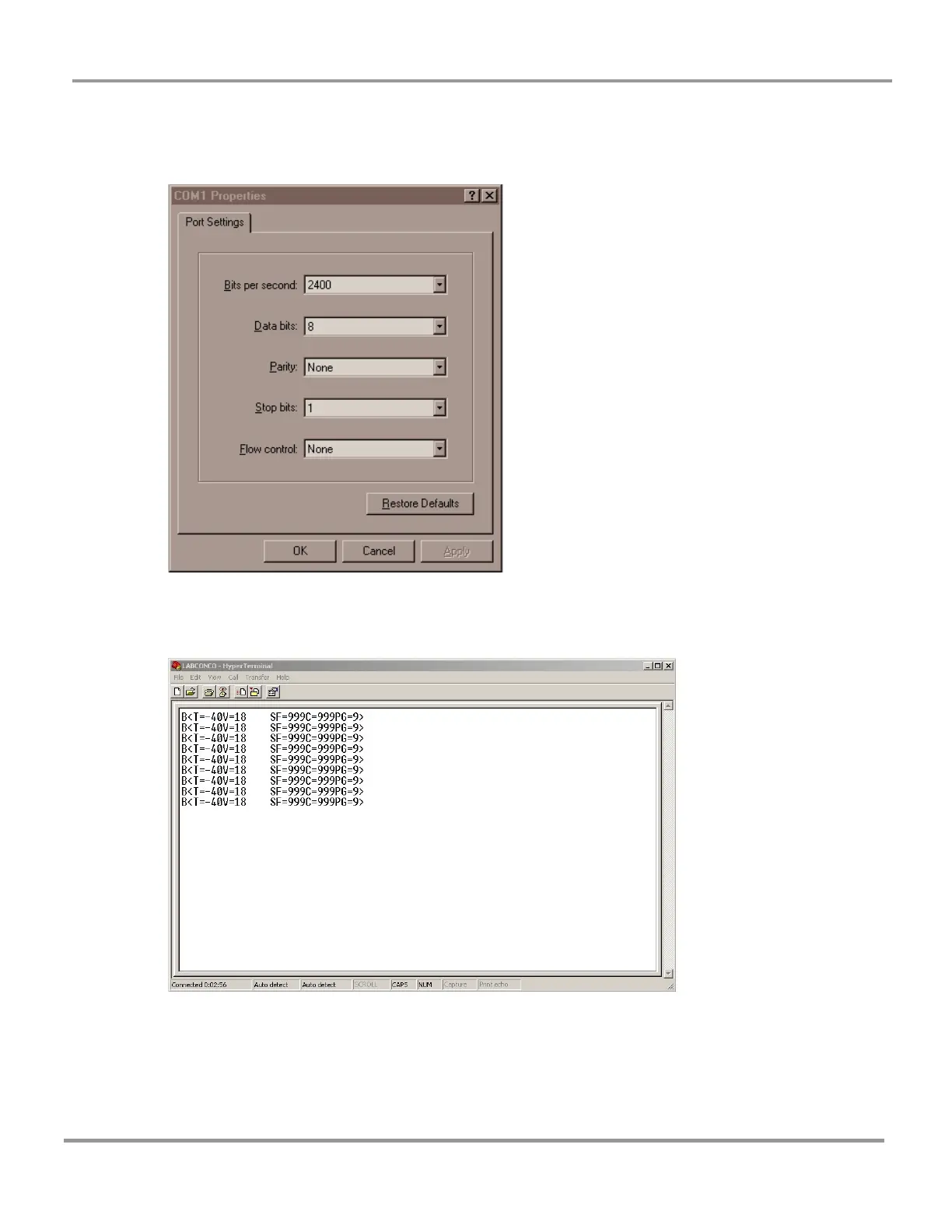

The “Com X Properties” dialogu
e box will open. Enter the a
ppropriate data
properties and press “OK.”
6.
When the Freeze Dryer main power switch is on,
the data will be transmitted
and updated at the time interv
als selected by the user.
35
37
