Label 16005 User Manual

7

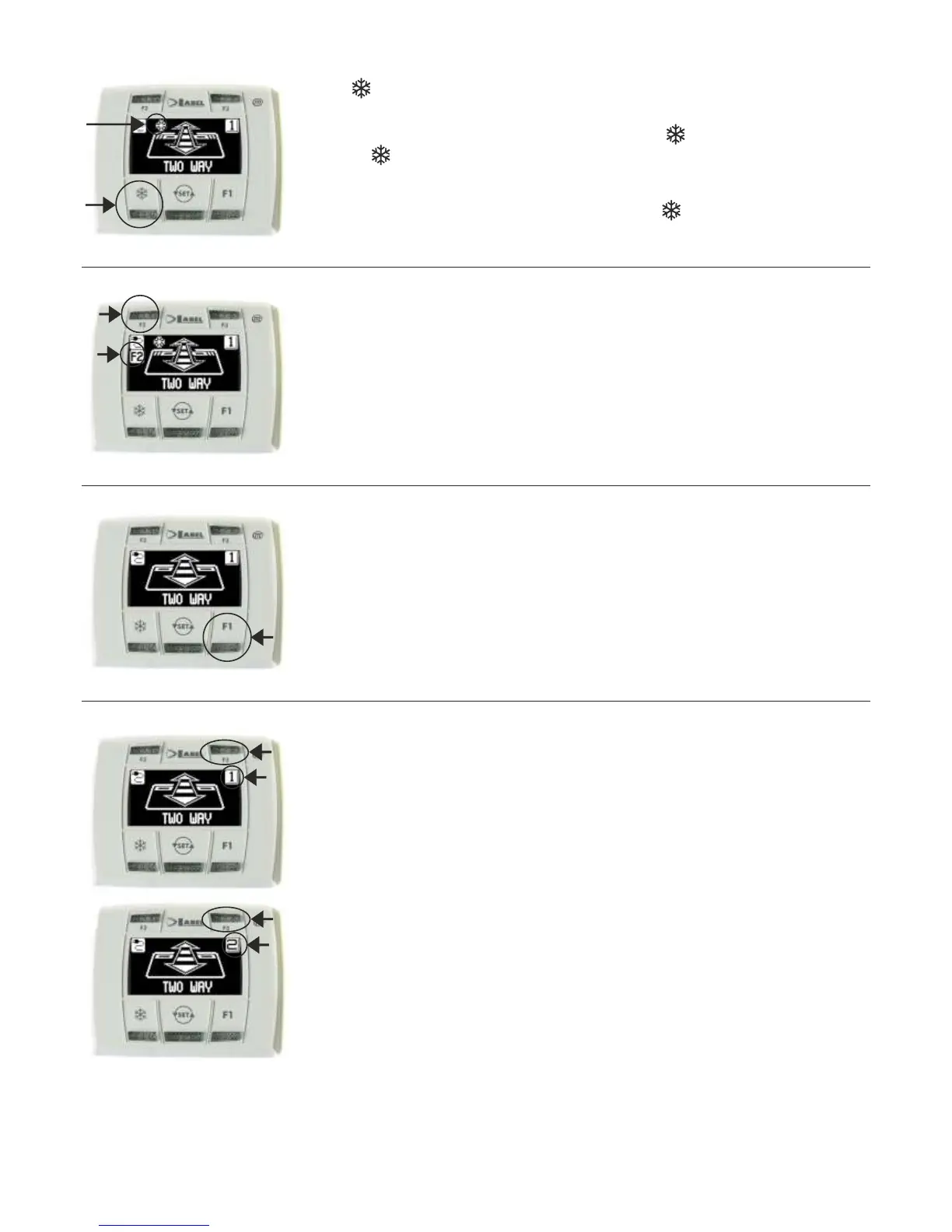

Operation of other buttons located on N-DSEL program selector panel
REDUCED OPENING DURING WINTER
To reduce the passage opening.
To activate the reduced opening during winter press the button once;
the symbol on the display indicates that the function is on.
To disable the reduced opening during winter press the button once more;
CHEMIST'S OPENING
To open the door by a few centimetres.
(Only if the chemist's function was enabled on the operator during installation).
To enable the chemist's opening press the F2 button once; the F2 symbol appears on the
display.
To disable the chemist's opening press the F2 button once more; the F2 symbol goes off on
the display.
F2
F1
F3
Door opening command
Pressing the F1 button will open the door.
The F1 may open the door even when the "NIGHT LOCK" work program is selected, if the
operator electronic control unit is set accordingly.
It is only used if the N-DSEL digital programmer manages two automatic doors
The N-DSEL digital programmer can independently manage the operation of two EVOLUS
sliding automatic doors.
Pressing the F3 button allows to select the door on which the work program is set;
The number 1 appears on the display when door 1 is selected; the number 2 appears if door
2 is selected.
