Reads and records data from one or two EI-1050 digital temperature/humidity probes.

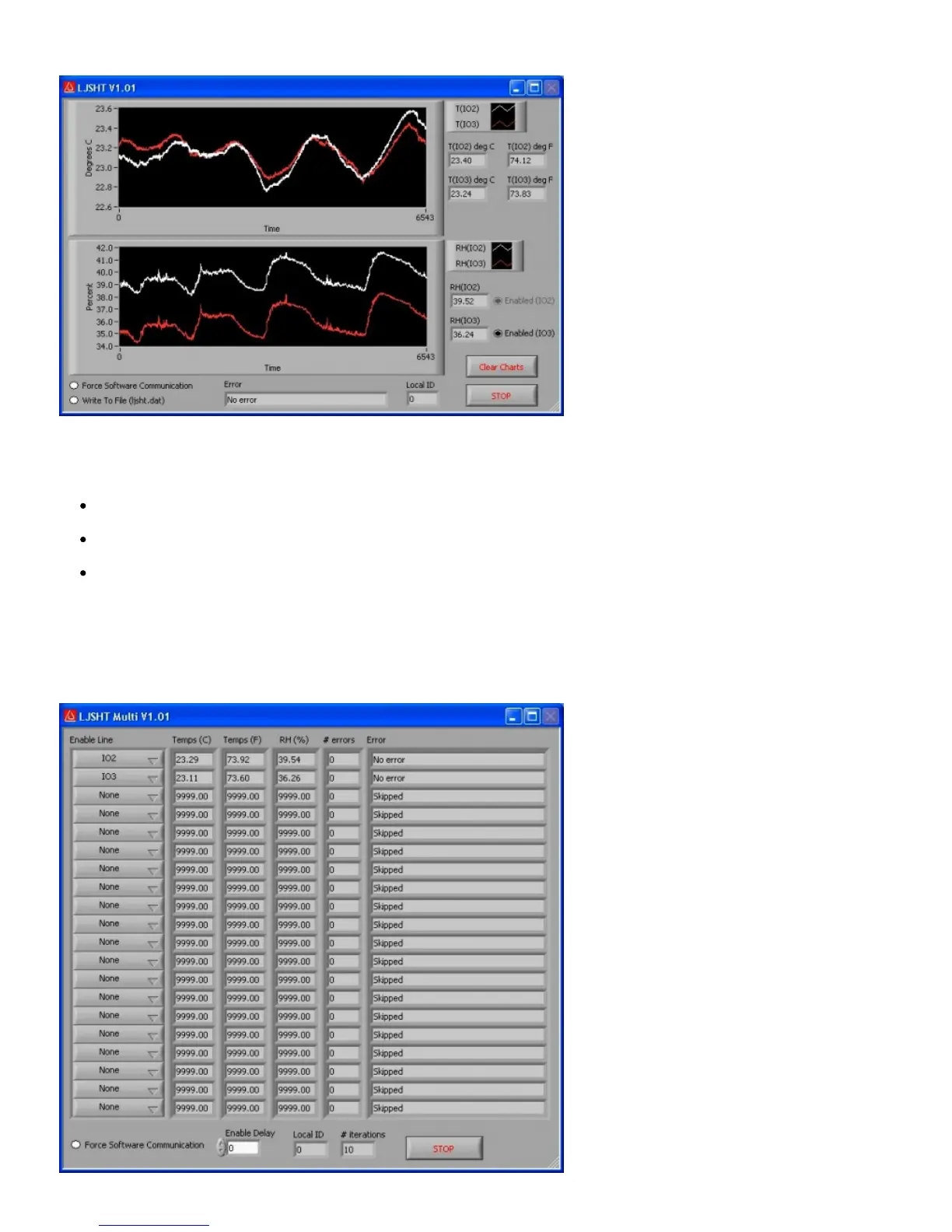

Figure 3-15. LJSHT
Figure 3-15 shows the LJSHT window:
Enabled (IO2/IO3): At least one EI-1050 must be connected. IO2 will be controlled as the enable line for this probe. If two
probes are connected, then enable control of IO3.
Force Software Communication: Forces software based SHT1X communication, even if the LabJack U12 firmware is
V1.10 or higher.
Write To File: Appends data to a tab-delimited ASCII file called ljsht.dat in the current directory. Data is written as seconds
since 1904, followed by tempC/tempF/RH for each probe.
3.9 - LJSHTmulti
Displays readings from up to 20 EI-1050 digital temperature/humidity probes connected to a single LabJack U12.
