MSD Legend Series Operation & Maintenance Manual | 33

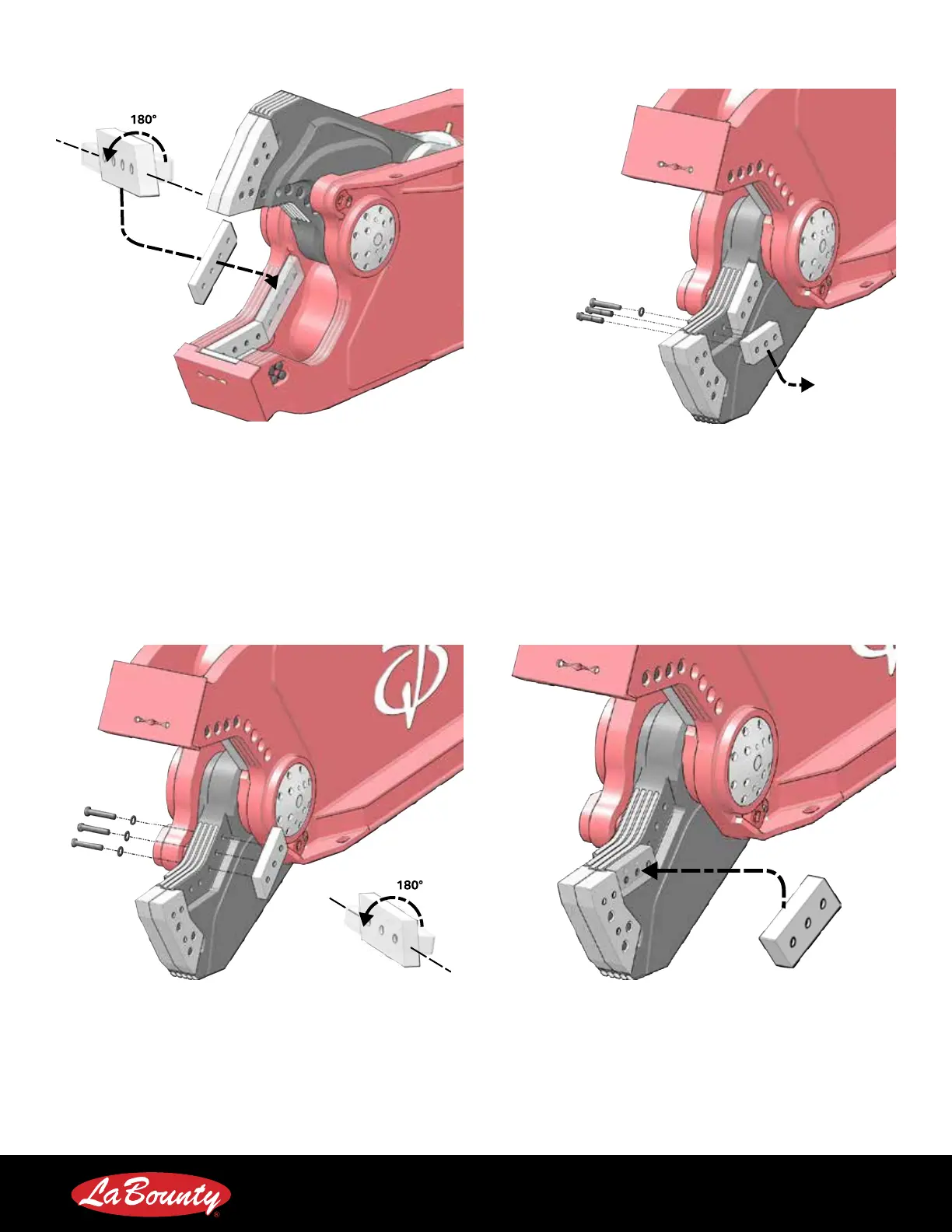

6. Place the shear upside down so that the upper blades
are as close to the ground as possible. Remove the
upper secondary blade and set aside.
7. Remove the upper primary blade. Rotate the blade,
along the long edge, 180° (Roll Rotation).
5. Rotate the previously set aside lower secondary blade
(step 1), along the long edge, 180° (Roll Rotation).
Install the blade into the lower primary blade seat.
8. Install the rotated blade into the upper secondary
blade seat.
Set Aside
for Step 9
