INSTALLER’S MANUAL
SULLY
Page 14 of 43 – US –
In case of use with a gas other than that for which the appliance was initially set up, it is crucial to replace the orifices
and modify the adjustments as defined below.
TOP BURNERS
Orifice

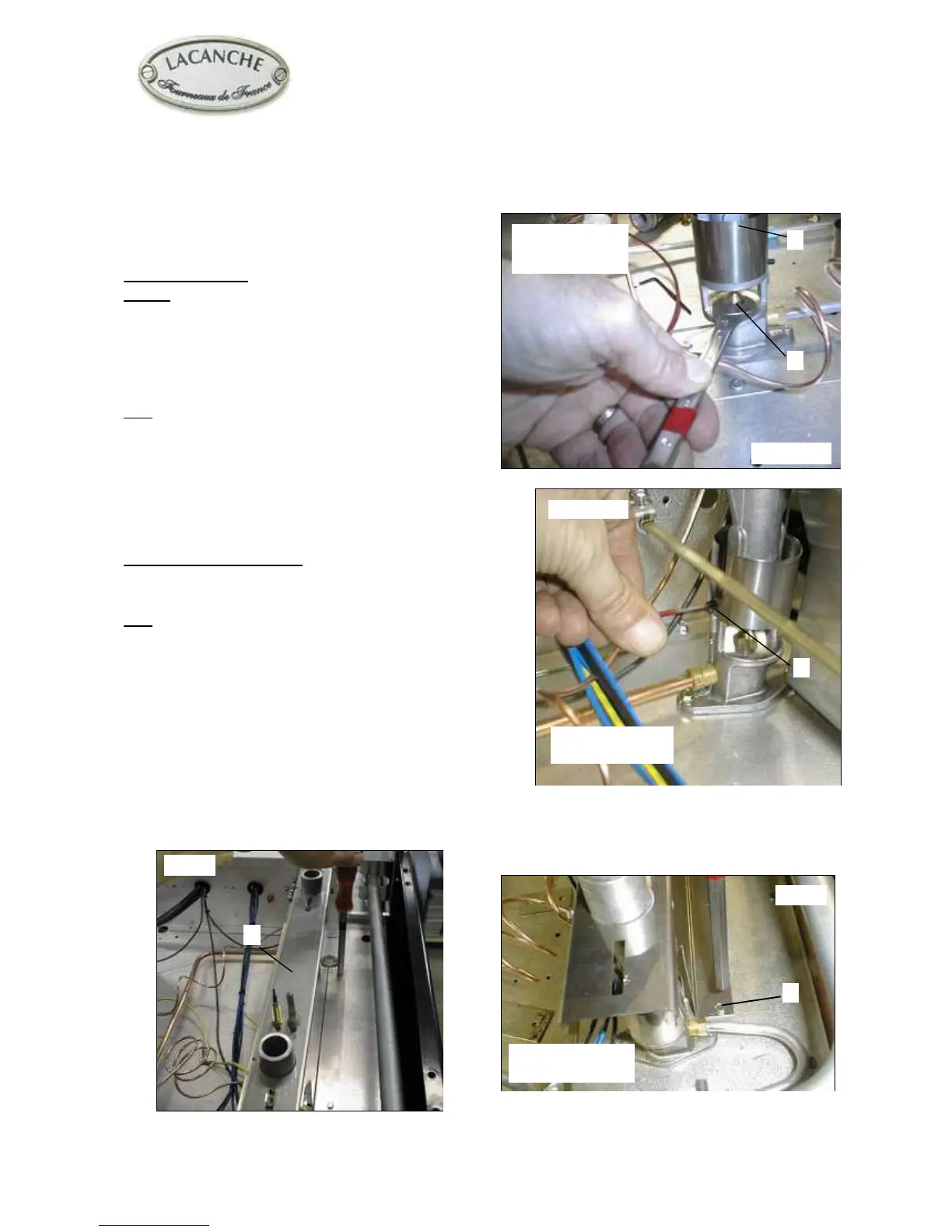

Lift the air ring E. Replace the injectors F in accordance with
Table 3 and Figure 13 (Ø in 1/100 mm).
The side burner bodies are kept in place by a transversal bar
(H, fig. 15). In order to take them out, unscrew screws I (fig.
16) then G (fig. 14).
Note: When one or more nozzles are changed, the sealing
ring should be changed as well (see gas circuit diagram).
Adjustment of primary air
Put body & cap back on their respective burners, set air ring E by
sliding it from bottom to top (fig. 13, Table 4).
Note: Normal flames are bluish green except for natural gas flames
which are violet.
Clé de 12
Wrench 12 (
15
/
32
)
Fig. 13
F
E
Clé de 3
Wrench 3 (
1
/
8
)
Fig. 14
G
I
Fig. 16
Clé de 7
Wrench 12 (
15
/
32
)
H
Fig. 15
