ELECTRICITY
It is hazardous to put the appliance into service without connecting it to suitable ground.
No liability can be accepted for accidents resulting from non-compliance with this requirement or incorrect grounding.
Connect the equipotential bonding terminal (N, Figure 24).
Before connection, check that the:
Mains voltage is compatible with the appliance’s rated voltage and thermal output.
Connection:
- Use a 4-wire cord rated for 30 A 125 / 250 VAC, type SRD, SRDT, S, SO
or ST.
- Where local Codes do not permit grounding through neutral, use a 4-wire
power supply cord or “pigtail” kit. Cord must be agency approved for use
with household ranges.

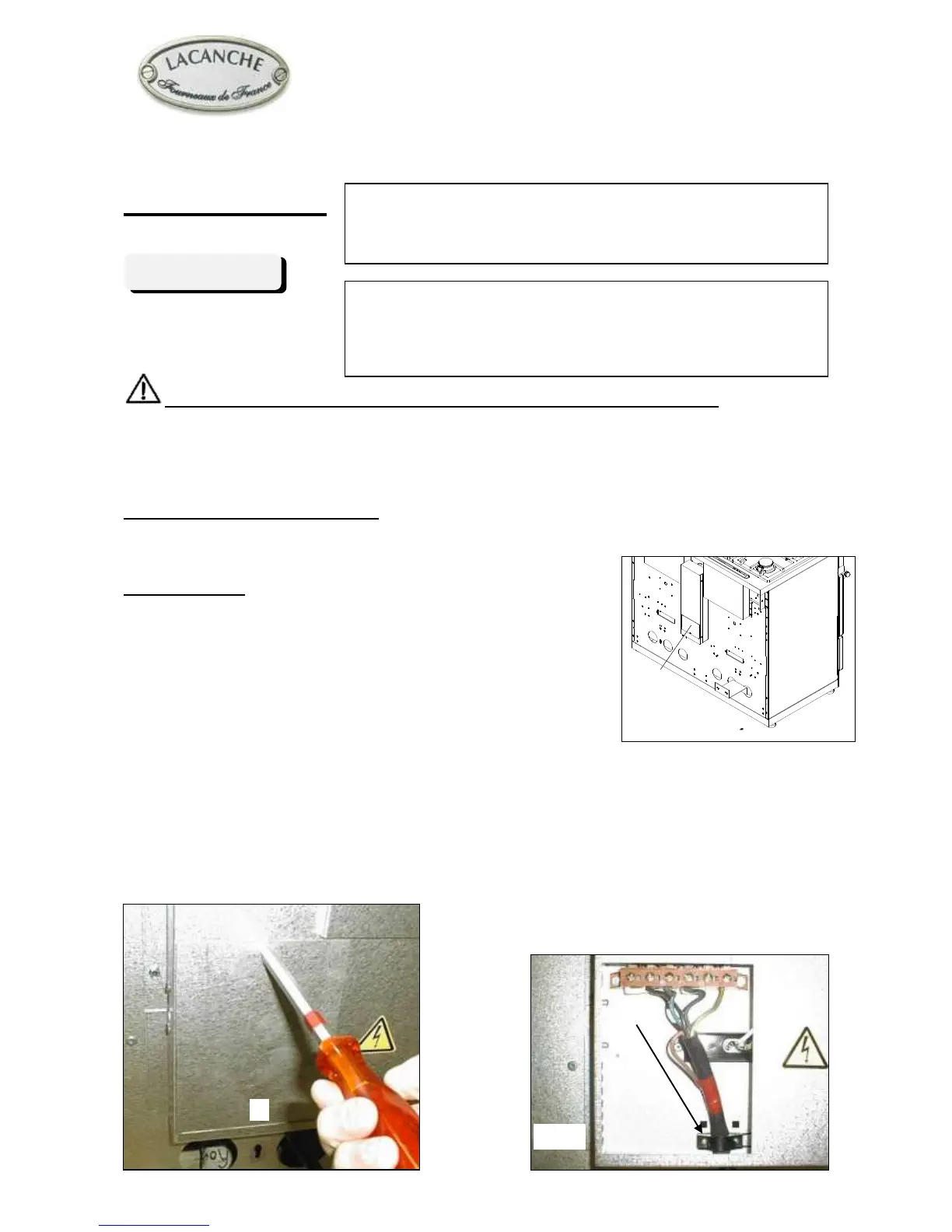

- Remove access door O (Figure.25, gas oven range) or P (Figure 26, gas and
electric range).
- Connect to terminal block in accordance with figure 28.
- Secure the cable by means of cable clamp, item Q (Figure 27).
- Refit access door
THE APPLIANCE WHEN INSTALLED, MUST BE
ELECTRICALLY GROUNDED IN ACCORDANCE
WITH THE LOCAL CODES OR The National Electrical
Code, ANSI/NFPA 70-1996 or latest edition.
