INSTALLER’S MANUAL
SULLY

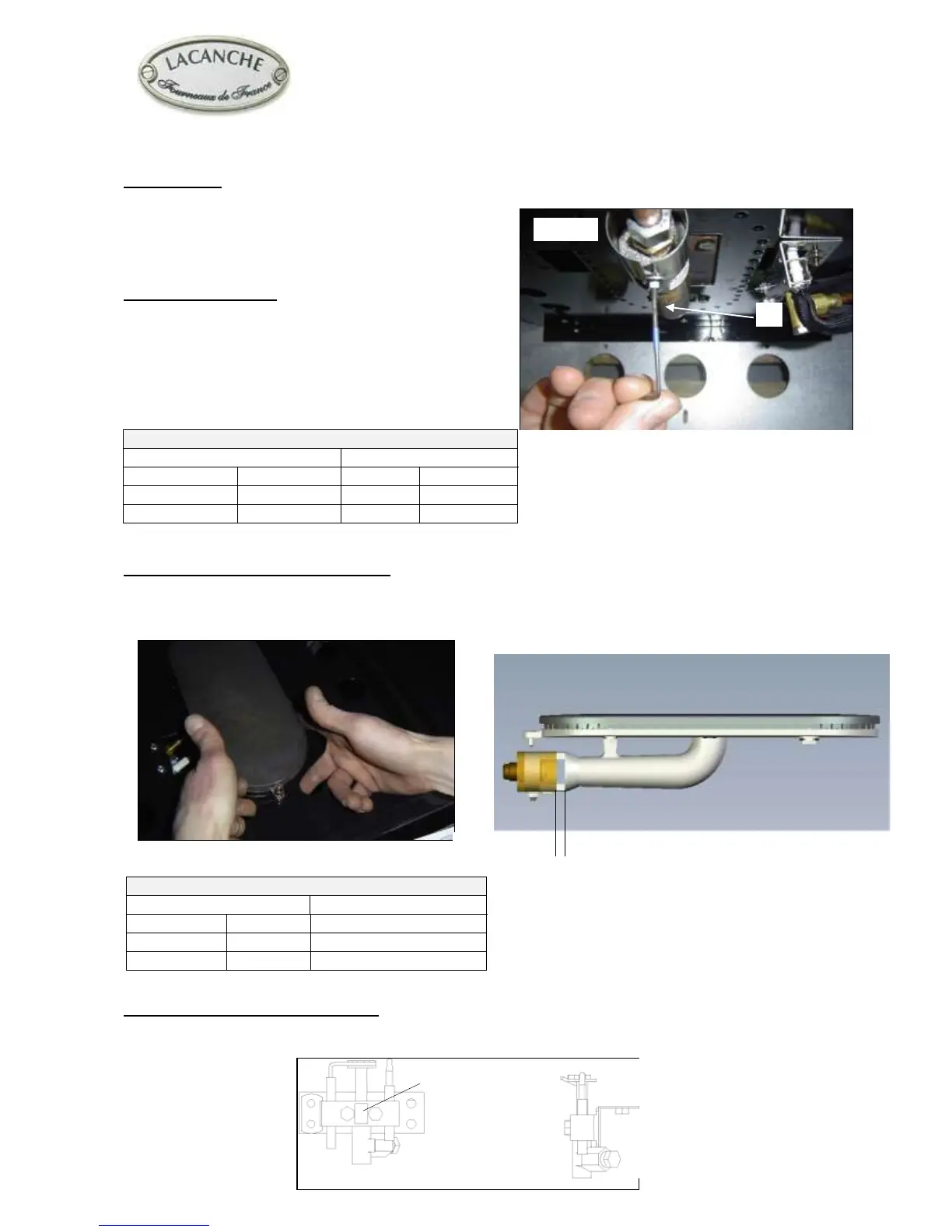

Page 16 of 43 – US –


Oven orifice:
Remove the base, CAUTION: when refitting place the base underneath the groove on the fascia (Figures 18 and 19).
Remove the oven burner.
Disconnect the connection piece, unscrew screw M on the
orifice holder (Figure 22). Replace the orifice (Table 5).

 Pilot burner orifice:
Change the pilot burner orifice
Gas pilot LP: 65103032
Gas pilot NG: 65103031
Table 5
Ø
GAS
Pressure
Gas oven
Pilot burner
Natural gas
6" WC
1.40
0.45
L.P. propane
10" WC
0.95
0.25

 Adjustment of oven primary airflow:
Remove the base, unscrew the screw K holding the burner (Fig.20).
Adjust the air ring (Table 6, Figure 23).
Table 6
Opening in mm / inches
GAS
Pressure
Oven
Natural gas
6" WC
4 /
3
/
16
L.P. propane
10" WC
6 /
1
/
4

Adjusting pilot burner air supply
Turn ring P to fully open for Butane/Propane, to half open for natural gas (Figures 24)
Fig. 23
Air Adjustment
P
Fig. 22
L
Fig. 24
