LADAC OPTIMAL 24V - Terminal Connection Procedures; Tension Clamp Terminals

14

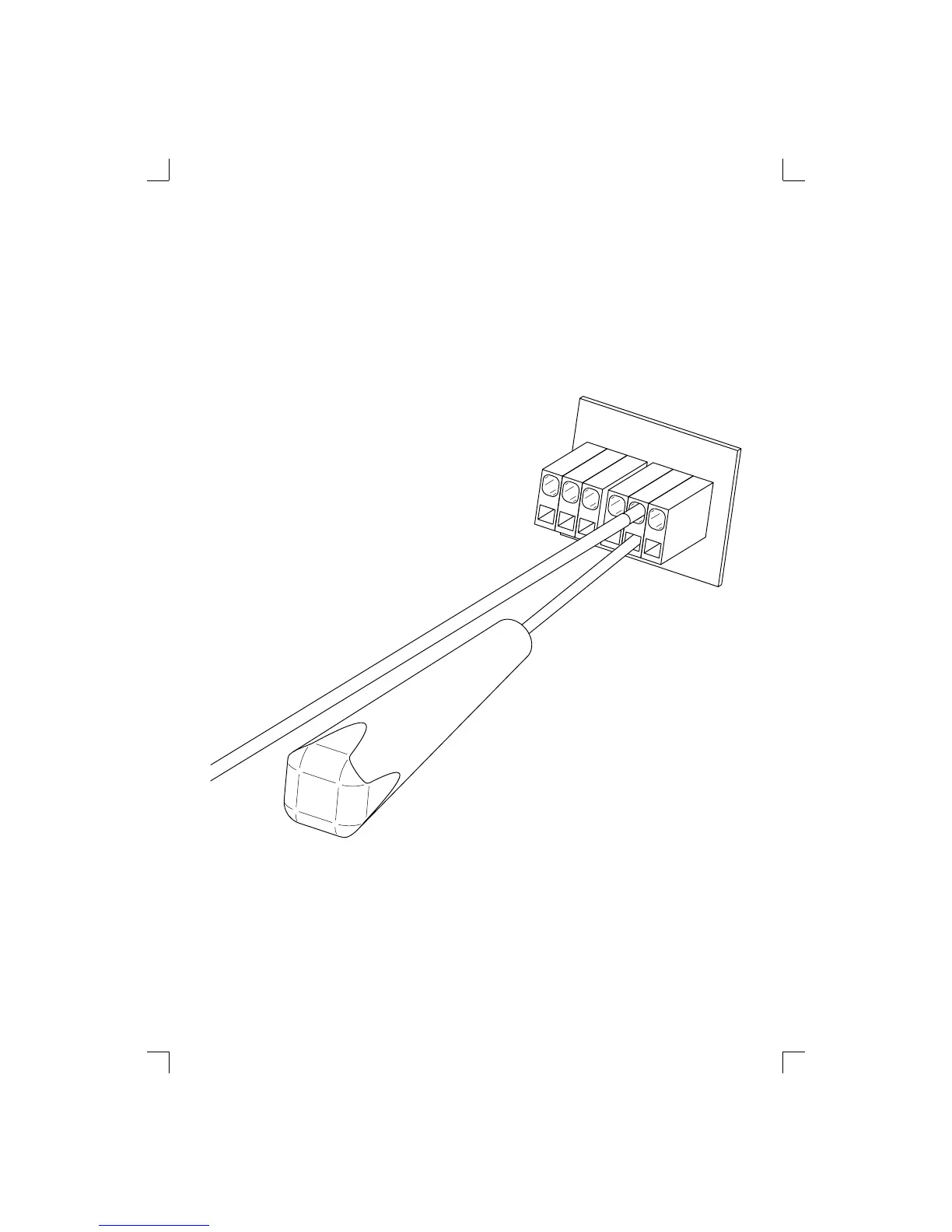

Installing procedure for tension clamp terminals
1. Press a fl at bladed screwdriver (DIN5264-A) into the square channel
2. Insert wire, cross section max. 2,5mm²
3. Remove screwdriver
4. Check the connection
Installasjonsprosedyre for fjærklemmer
1. Press en fl at skrutrekker (DIN5264-A) inn i det fi rkantede hullet
2. Sett inn avisolert kabel , maks. 2,5mm²
3. Dra ut skrutrekkeren
4. Kontroller koblingen
