LAE electronic RDC123T1R3C User Manual

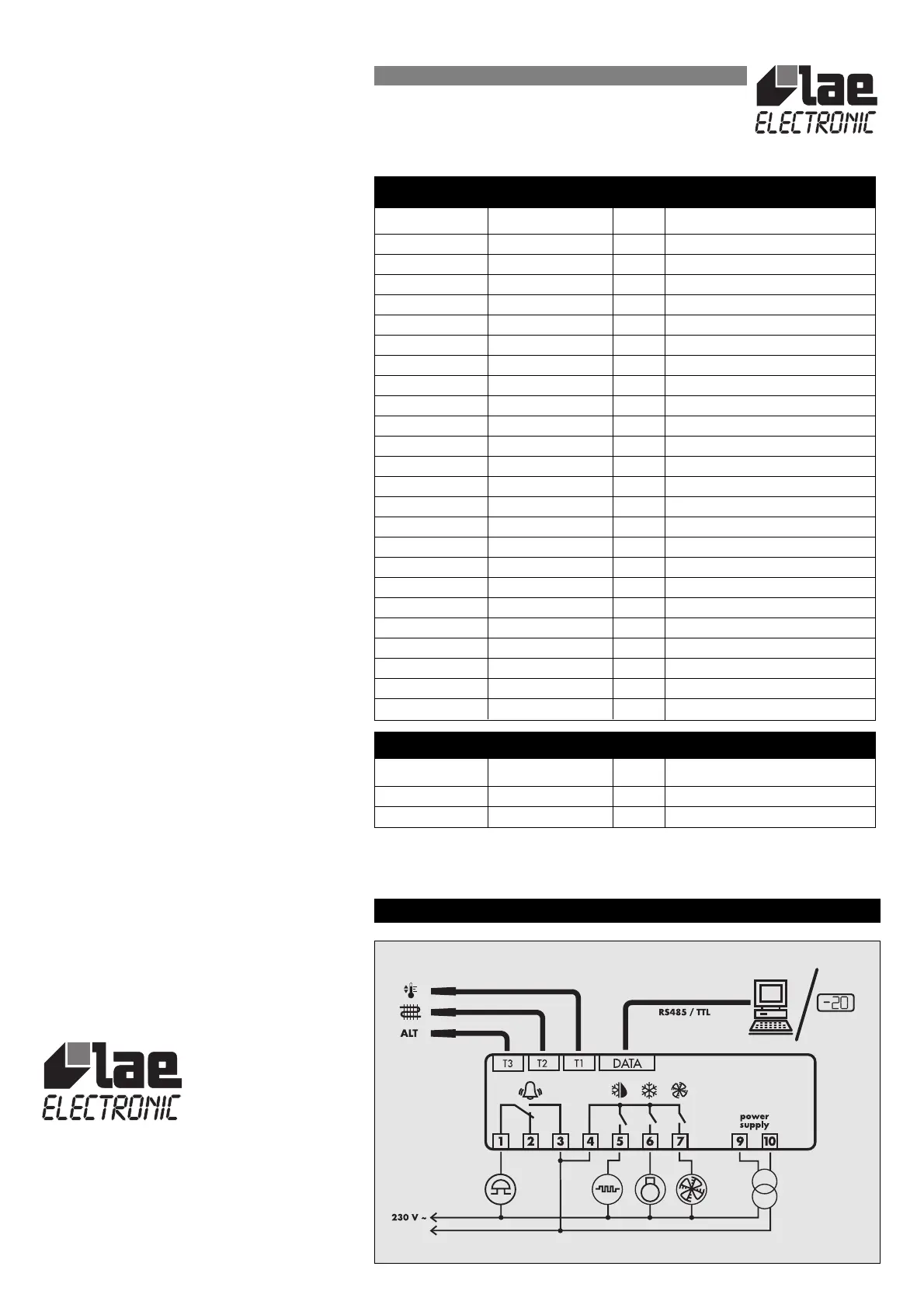

WIRING DIAGRAM
VIA PADOVA, 25
31046 ODERZO /TV /ITALY
TEL. 0422 815320 - 815303
TELEFAX 0422 814073
www.lae-electronic.com
E-mail: info@lae-electronic.com
PARTNER VENEZIA • 041 5460713
INSTRUCTIONS FOR INSTALLATION AND USE.
SETUP
1 SPL -50 ... 150 -30
2 SPh SPL ... 150 20
3 hyS 01 ... 20 02
4 coF 00 ... 10 00
5 con 00 ... 10 00
6 cdc 00 ... 10 05
7 crS 00 ... 120 00
8 dLi 01 ... 70 10
9 dto 01 ... 120 30
10 drP 00 ... 10 03
11 diS -01 ... 30 10
12 dty FAn; ELE; GAS ELE
13 Fct -01; 00... 10 01
14 FrS -50 ... 150 -10
15 Fid 00; 01; 02 00
16 Alo -50 ... 150 -32
17 Ahi Alo ... 150 22
18 AdL -01; 00... 120 10
19 Ain 1; 2; 3 01
20 Ado ------------------- 01 Don’t change
21 oS1 -20 ... 20 00
22 oS2 -20 ... 20 00
23 oS3 -20 ... 20 00
24 SiM 00 ... 200 00
25 Adr 00 ... 255 01
NIGHT THERMOSTAT
1 AEn 01;00 00
2 ASP -50 ... 150 05
3 Ahy 01 ... 20 02
