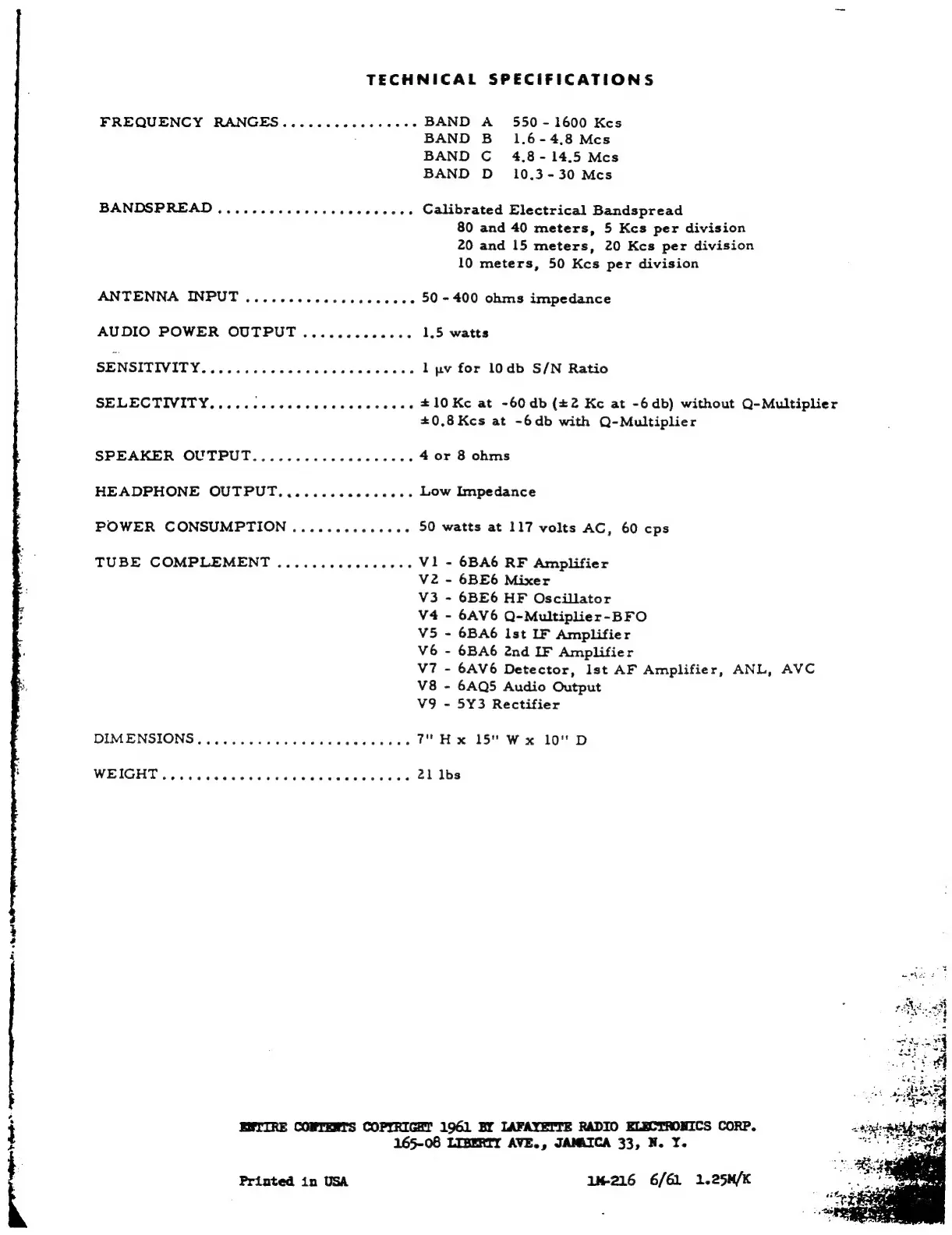

TECHNICAL SPECIFICATIONS
FREQUENCY RANGES..........-20008 BAND A _ 550-1600 Kes
BAND B_1.6-4.8 Mcs
BAND CC 4,8- 14.5 Mcs
BAND D_ 10.3-30 Mcs
BANDSPREAD ........... 00000. +... Calibrated Electrical Bandspread
80 and 40 meters, 5 Kes per division
20 and 15 meters, 20 Kes per division
10 meters, 50 Kes per division
ANTENNA INPUT ............. o Siaxeievere 50 - 400 ohms impedance
AUDIO POWER OUTPUT ............. 1.5 watts
SENSITIVITY. pe MR aR Oa Lie ae eee ee l pv for 10db S/N Ratio
SELECTIVITY ices, cis disiatetvae ten 8 av ealncs . £10 Ke at -60db (+2 Ke at -6db) without Q-Multiplier
*0,.8Kes at -6db with Q-Multiplier
SPEAKER OUTPUT............ stems 4 or 8 ohms
HEADPHONE OUTPUT............. ... Low Impedance
POWER CONSUMPTION .............. 50 watts at 117 volts AC, 60 cps
TUBE COMPLEMENT ................ Vl - 6BA6 RF Amplifier
V2 - 6BE6 Mixer
V3 - 6BE6 HF Oscillator
V4 - 6AV6 Q-Multiplier-BFO
V5 - 6BA6 lst IF Amplifier
V6 - 6BA6 2nd IF Amplifier
V7 - 6AV6 Detector, Ist AF Amplifier, ANL, AVC
V8 - 6AQ5 Audio Output
V9 - 5Y3 Rectifier
DIMENSIONS ....... 0... cc cee eee eens 7™ Hx 15" Wx 10" D
WEIGHT access eis. 0b wees 6 oe ee eieree ee ee 21 lbs
aby:
mote
Ceadhh 1 saat
ENTIRE CONTENTS COPYRIGHT 1961 BY LAFAYETTE RADIO ELECTRONICS CORP.
165-08 LIBERTY AVE., JAMAICA 33, N. Y.
Printed in USA 1M-216 6/61 1.25M/K
