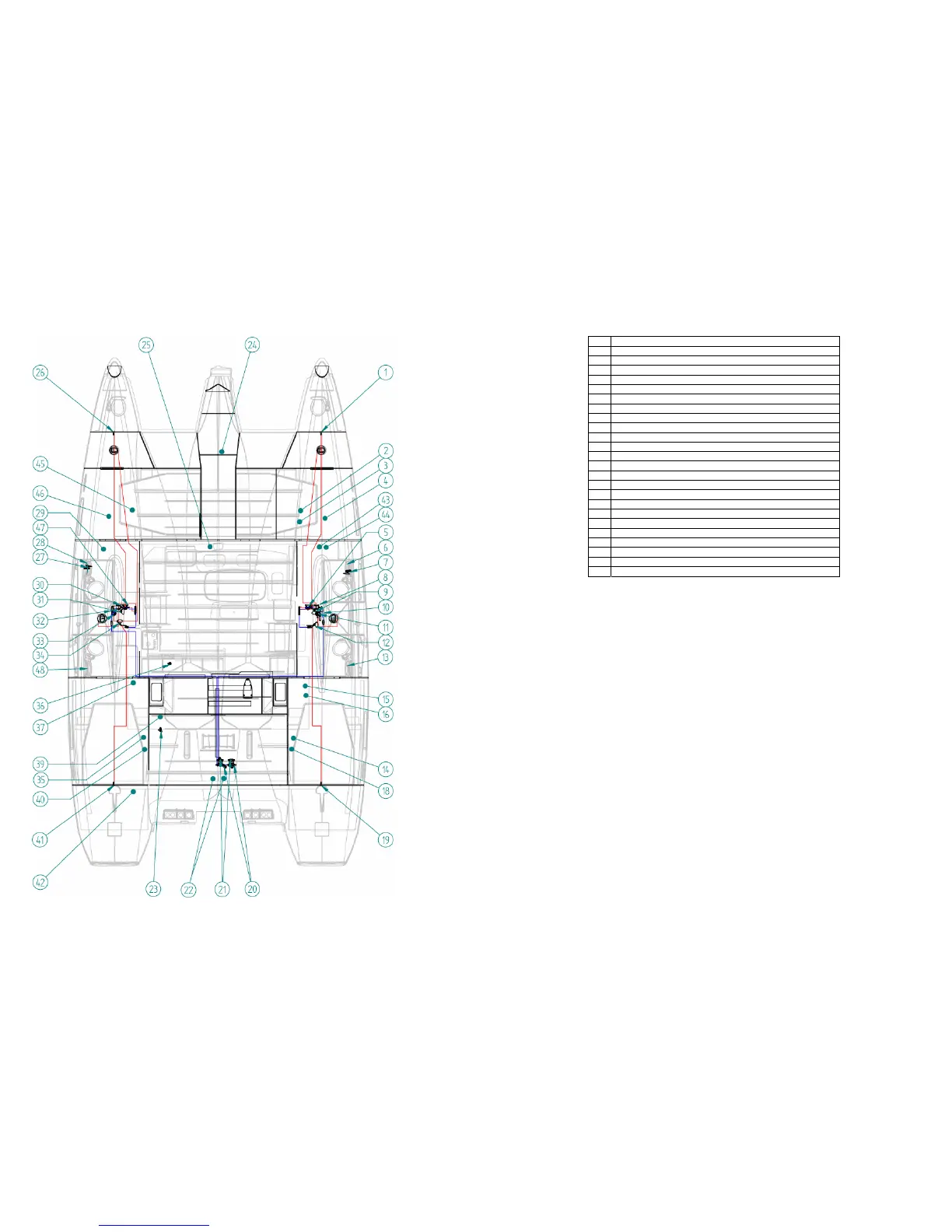

24 Chain locker drain
25 Gullwing locker waste
26 Forward port watertight compartment bulkhead drain
27 Forward port washbasin waste
28 Forward port WC inlet
29 Forward port WC outlet
30 Port electric bilge pump
31 Forward port watertight compartment drain cock
32 Forward port shower drain pump
33 Port electric bilge pump strainer
34 Aft port air conditioning inlet
35 Port electric bilge pump drain
36 Saloon sink waste
37 Port air conditioning inlet
38
39 Aft cockpit drain
40 Port air conditioning outlet
41 Aft port watertight compartment bulkhead drain
42 Generator waste
43 Log skin fitting
44 Depth sounder skin fitting
45 Forward port air conditioning outlet
46 Forward port air conditioning inlet
47 Forward port shower drain pump
48 Aft port WC inlet
