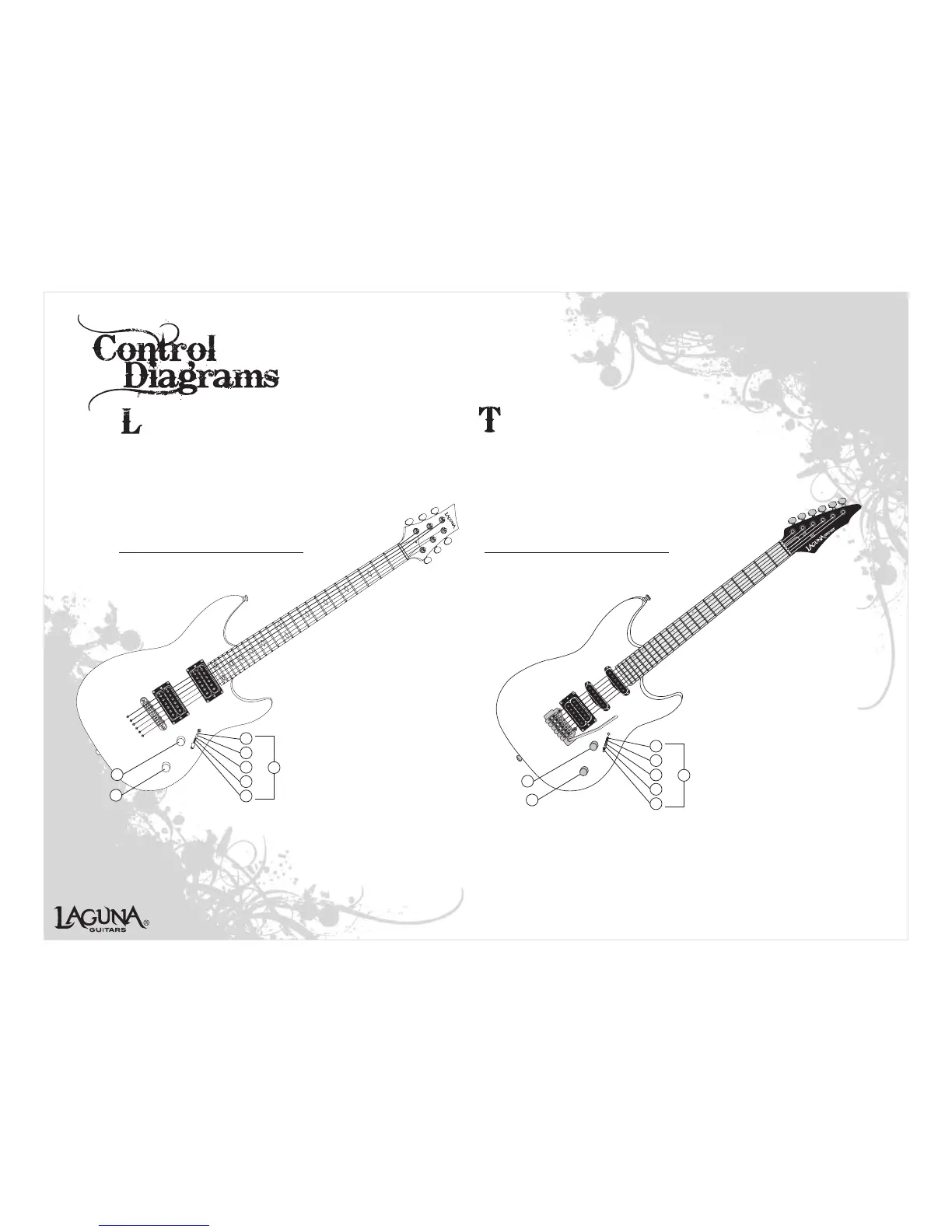

laguna LE222 - Control Diagrams; LE200;200 Q 5-Way Switch; LE222, LE300, LE322 and LE422 5-Way Switch

PLAYLAGUNA.COM
Maintenance Manual
2
1
2
3
4
5
C
A
B
A
B
1
2
3
4
5
C
A. Master Volume
B. Master Tone with pull-pot
for humbucker coil tap
C. 5- way pickup selector switch
1. Neck, single coil
2. Middle and neck combined
3. Middle, single coil
4. Bridge, bottom coil and
middle combined
5. Bridge, full humbucker
(pull-pot in)
Bridge, bottom coil
(pull-pot out)
A. Master Volume
B. Master Tone
C. 5- way pickup selector switch
1. Neck, full humbucker
2. Neck, top coil
3. Neck and Bridge, full
humbucker, out of phase
4. Bridge, bottom coil
5. Bridge, full humbucker
LE200/200Q
5-Way Switch
LE222, LE300,
LE322 and LE422
5-Way Switch
he LE222/300/322/422 adds a pull-pot coil tap, allowing
you to switch the humbucker at the bridge from full to
single-coil.
aguna’s 5-way switch on the LE200/200Q series lets
you tap into a whole new world of sounds by selecting
various pickup routing configurations.
